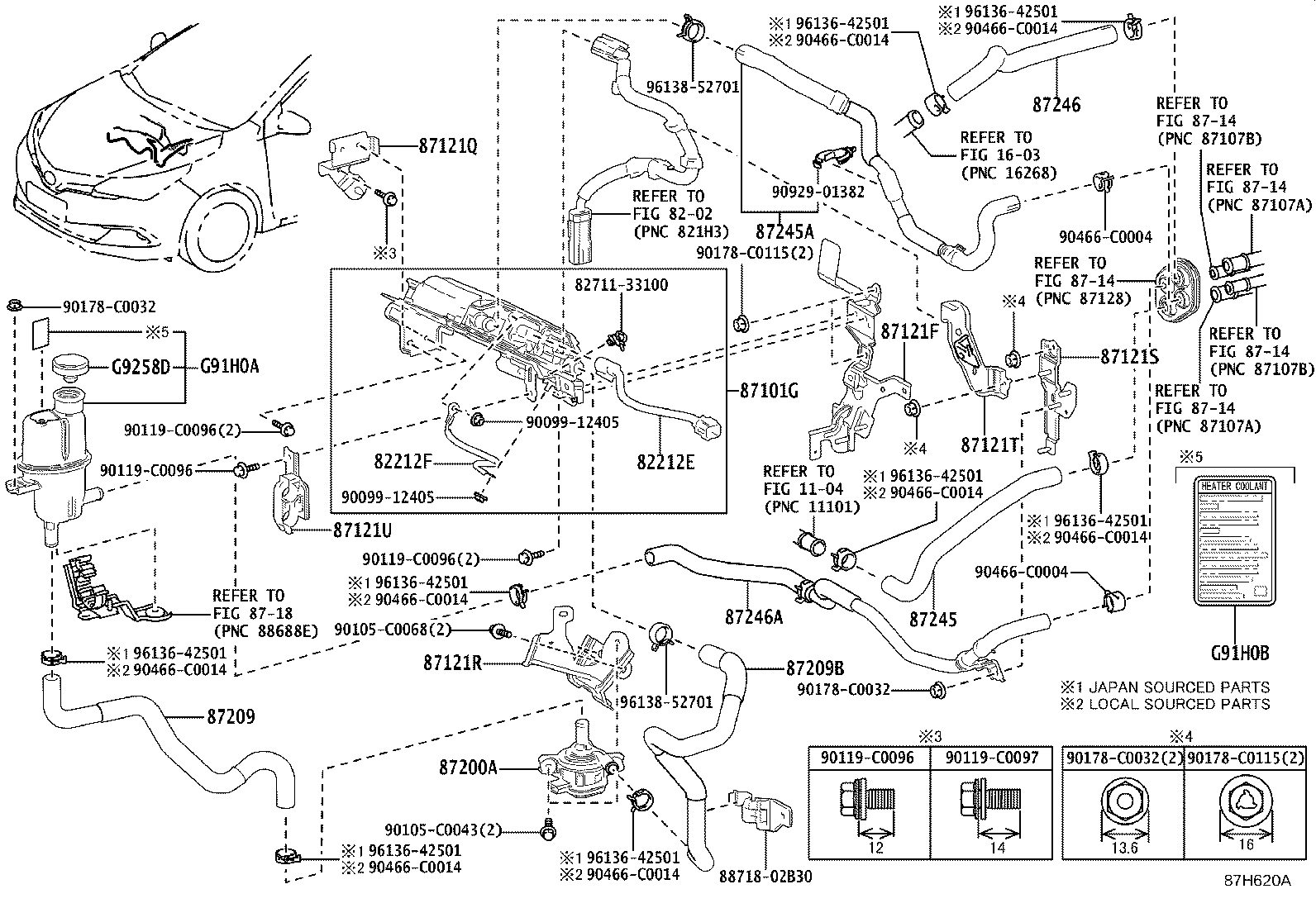

Toyota Corolla (china) ZWE183 HEATING & AIR CONDITIONING - WATER PIPING

Part #	Description	Period	Qty
82212E - HARNESS, AIR CONDITIONER NO.1
82212-F4070	ZWE183	05/2020 - 12/2999	1
82212-12170	ZWE183	03/2019 - 05/2020	1
82212F - HARNESS, AIR CONDITIONER NO.2
82212-02680	ZWE183	05/2020 - 12/2999	1
82212-12180	ZWE183	03/2019 - 04/2020	1
87101G - HEATER SUB-ASSY, ELECTRIC
87101-02170	ZWE183	05/2020 - 06/2021	1
87101-12160	ZWE183	03/2019 - 04/2020	1
87121F - BRACKET, HEATER
87121-02100	ZWE183	03/2019 - 12/2999	1
87121Q - BRACKET, HEATER NO.2
87121-02110	ZWE183	03/2019 - 12/2999	1
87121R - BRACKET, HEATER NO.3
87121-02120	ZWE183	03/2019 - 12/2999	1
87121S - BRACKET, HEATER NO.4
87121-02130	ZWE183	03/2019 - 12/2999	1
87121T - BRACKET, HEATER NO.5
87121-02140	ZWE183	03/2019 - 12/2999	1
87121U - BRACKET, HEATER NO.6
87121-02150	ZWE183	03/2019 - 12/2999	1
87200A - PUMP ASSY, WATER(FOR HEATER)
G9040-02040	ZWE183 LOCAL SOURCED PARTS	04/2021 - 12/2999	1
G9040-52020	ZWE183	03/2019 - 04/2021	1
G9040-52020	ZWE183 JAPAN SOURCED PARTS	04/2021 - 12/2999	1
87209 - HOSE SUB-ASSY, WATER
87209-02460	ZWE183	03/2019 - 12/2999	1
87209B - HOSE SUB-ASSY, WATER, B
87209-02640	ZWE183	03/2019 - 12/2999	1
87245 - HOSE, HEATER WATER, INLET
87245-02T20	ZWE183	03/2019 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87209-02470	ZWE183	03/2019 - 12/2999	1
87246 - HOSE, HEATER WATER, OUTLET
87245-02T30	ZWE183	03/2019 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87209-02440	ZWE183	03/2019 - 12/2999	1
G91H0A - TANK ASSY, HEATER RESERVE
G91H0-02070	ZWE183	03/2019 - 12/2999	1
G91H0B - LABEL, COOLANT SYSTEM INFORMATION
11285-0T040	ZWE183	03/2019 - 12/2999	1
G9258D - CAP, HEATER RESERVE TANK
16475-28140	ZWE183	03/2019 - 12/2999	1
Common parts
82711-33100
88718-02B30
90099-12405
90105-C0043
90105-C0068
90119-C0096
90119-C0097
90178-C0032
90178-C0115
90466-C0004
90466-C0014
90929-01382
96136-42501
96138-52701
Linked diagrams
1104
1603
8202
8714
8718

ZWE183L-GEXEBC (2019)

(1903- )
