ZWE182L-GEXVBC (2015)

Toyota Corolla (China)

Production Dec 2015 - Mar 2017
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1512- )ZWE182

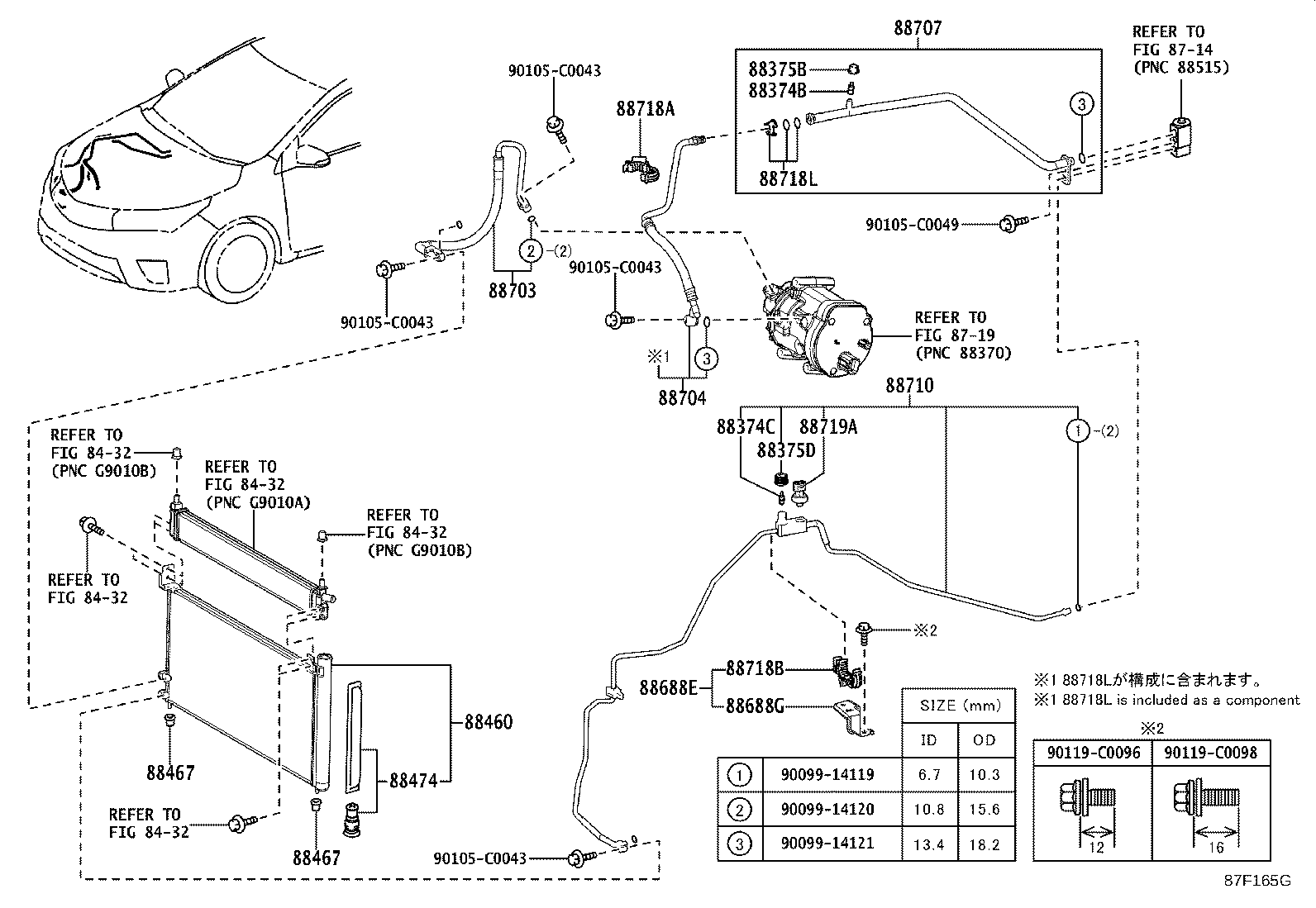

Click highlighted areas on diagram

diagram 8432 8432 8432 8432 8432 8714 8719 88374B 88374C 88375B 88375D 88460 88467 88467 88474 88688E 88688G 88703 88704 88707 88710 88718A 88718B 88718L 88719A 9009914119 9009914120 9009914121 90105C0043 90105C0043 90105C0043 90105C0043 90105C0049 90119C0096 90119C0098
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

NRE181,ZRE18#,ZWE182

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

NRE181,ZRE18#,ZWE182

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

NRE181,ZRE18#,ZWE182

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-0D010

NRE181,ZWE182

 1
88460 - CONDENSER ASSY, COOLER
884A0-02260

ZWE182

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-02120

ZWE182

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-02120

ZWE182

 2
88474 - DRYER, COOLER
88474-12020

ZWE182

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-02C10

ZWE182

 1
88688G - BRACKET, COOLER REFRIGERANT PIPE
88688-02B30

ZRE18#,ZWE182

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-02B20

ZWE182

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-02B50

ZWE182

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-02400

ZWE182

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-02B40

ZWE182

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-02680

NRE181,ZRE18#,ZWE182

 1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-02A40

ZWE182

 1
88718L - CLAMP, PIPING
88718-52280

NRE181,ZWE182

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

NRE181,ZRE18#,ZWE182

 1
Common parts
90099-14119
90099-14120
90099-14121
90105-C0043
90105-C0049
90119-C0096
90119-C0098
Linked diagrams
8432
8714
8719
