ZWE182L-GEXVBC (2015)

Toyota Corolla (China)

Production Dec 2015 - Mar 2017
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1512- )ZWE182

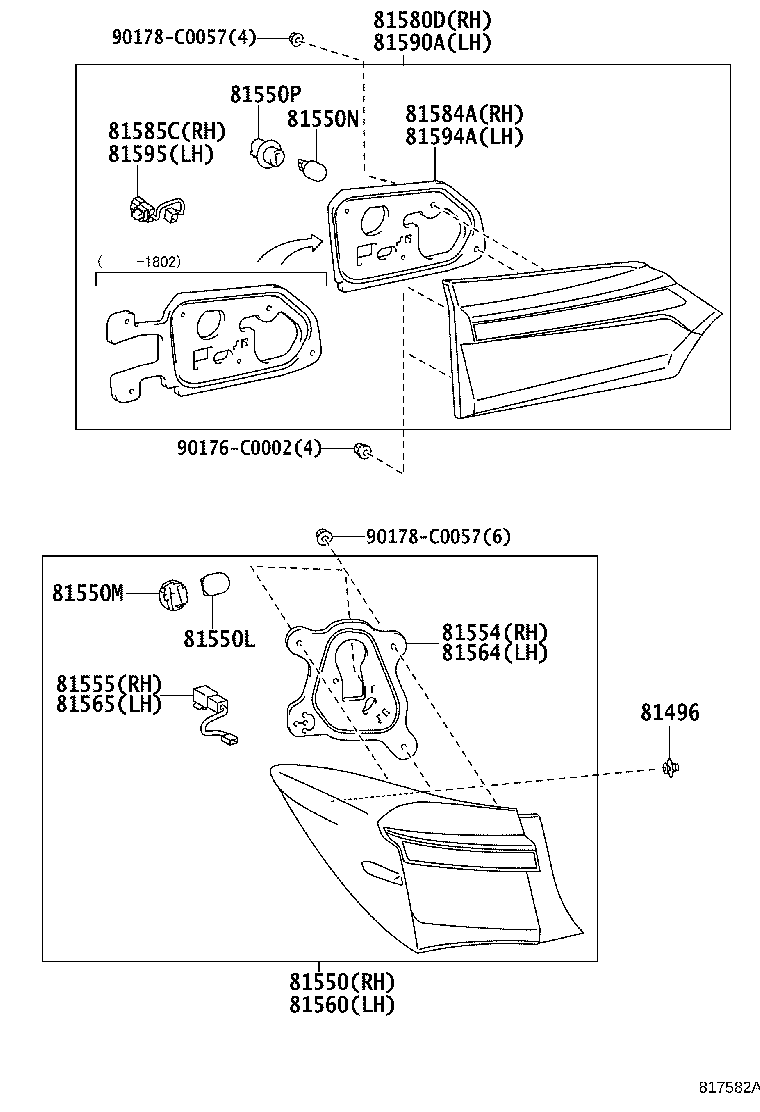

Click highlighted areas on diagram

diagram 81496 81550 81550L 81550M 81550N 81550P 81554 81555 81560 81564 81565 81580D 81584A 81585C 81590A 81594A 81595 90176C0002 90178C0057 90178C0057
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
90467-C0019

NRE181,ZRE18#,ZWE182

 2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-02690

ZWE182

 1
81550L - BULB, REAR TURN SIGNAL LAMP
90981-CB004

NRE181,ZRE18#,ZWE182

12V 21W

 2
81550M - SOCKET, REAR TURN SIGNAL LAMP
90069-81098

NRE181,ZRE18#,ZWE182

 2
81550N - BULB, BACK UP LAMP
90981-CB002

NRE181,ZRE18#,ZWE182

12V 21W

 2
81550P - SOCKET, BACK UP LAMP
90069-81101

NRE181,ZRE18#,ZWE182

 2
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-02870

ZWE182;NRE181,ZRE18#..GLXI,PREM

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-02870

ZWE182;NRE181,ZRE18#..GLXI,PREM

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-02690

ZWE182

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81552-02870

ZWE182;NRE181,ZRE18#..GLXI,PREM

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-02870

ZWE182;NRE181,ZRE18#..GLXI,PREM

 1
81580D - LAMP ASSY, REAR, RH
81580-02430

ZWE182

 1
81584A - GASKET, REAR LAMP RH
81584-02430

ZWE182

 1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-02430

ZWE182

 1
81590A - LAMP ASSY, REAR, LH
81590-02430

ZWE182

 1
81594A - GASKET, REAR LAMP LH
81584-02430

ZWE182

 1
81595 - SOCKET & WIRE, REAR LAMP, LH
81565-02870

ZWE182

 1
Common parts
90176-C0002
90178-C0057
