ZWE182L-GEXEBC (2015)

Toyota Corolla (China)

Production Dec 2015 - Mar 2017
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

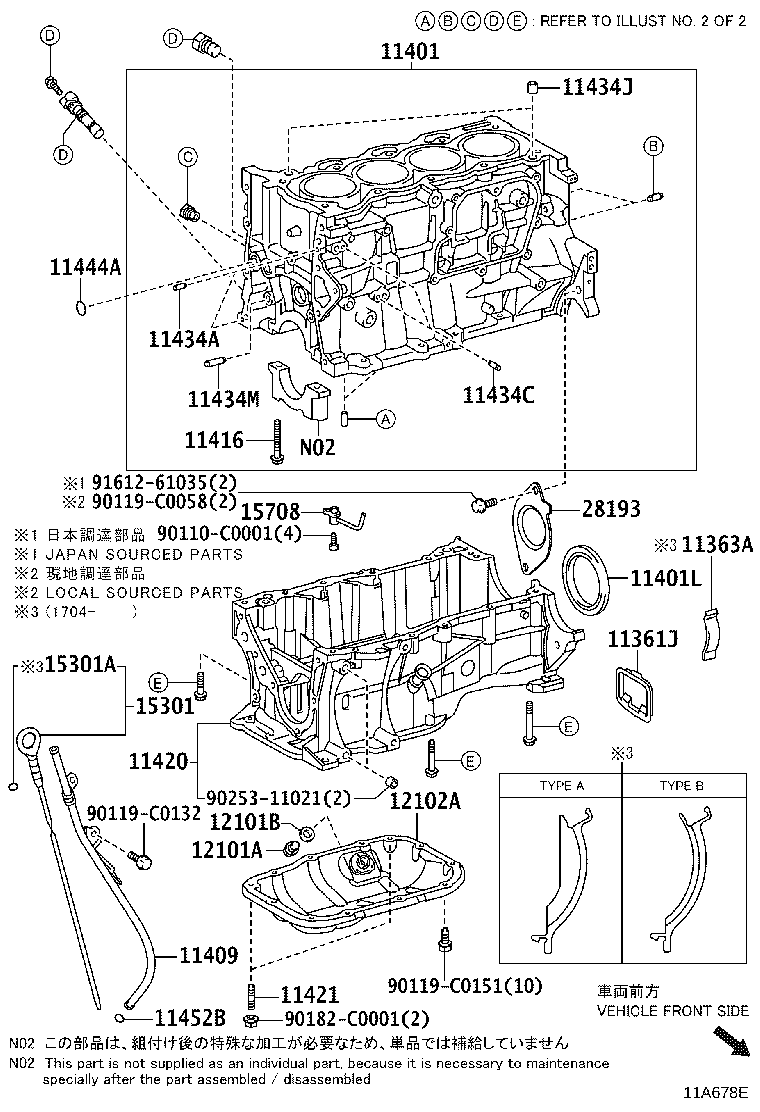

ILLUST NO. 1 OF 2(1512- )8ZRFXE

Click highlighted areas on diagram

diagram 11361J 11363A 11401 11401L 11409 11416 11420 11421 11434A 11434C 11434J 11434M 11444A 11452B 12101A 12101B 12102A 15301 15301A 15708 28193 90110C0001 90119C0058 90119C0132 90119C0151 90182C0001 9025311021 9161261035
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-0T020

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

(L)

 1
11361-21011

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

(J)

 1
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-0T020

2ZRFE..ZRE182..6F;1ZRFE,8ZRFXE..ZRE181,ZWE182

(L),TYPE A

 1
11363-33010

2ZRFE..ZRE182..6F;1ZRFE,8ZRFXE..ZRE181,ZWE182

TYPE B

 1
11363-21010

2ZRFE..ZRE182..6F;1ZRFE,8ZRFXE..ZRE181,ZWE182

(J),TYPE A

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-09660

8ZRFXE..ZWE182

 1
11410-09661

8ZRFXE..ZWE182

 1
11401L - SEAL, ENGINE REAR OIL
90311-C0029

8ZRFXE..ZWE182

 1
11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE
11409-0T010

8ZRFXE..ZWE182

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-C2001

8ZRFXE..ZWE182

 10
11420 - CRANKCASE ASSY, STIFFENING
11420-0T020

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

 1
11421 - BOLT, STUD(FOR OIL PAN)
90126-C0001

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-C0009

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

L=12,OD=4.0

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-C0009

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

L=12,OD=4.0

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-C0003

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

 2
11434M - PIN, STRAIGHT(FOR CHAIN TENSIONER)
90250-C0006

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

 1
11444A - RING, O
90301-C0033

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90301-C0007

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

 1
90341-C0013

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-C0005

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-0T010

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-0T030

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-37012

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

 4
28193 - INSULATOR, STARTER HOLE
28193-0T010

8ZRFXE..ZWE182

 1
Common parts
90110-C0001
90119-C0058
90119-C0132
90119-C0151
90182-C0001
90253-11021
91612-61035
