ZRE182L-GEXVKC (2014)
Toyota Corolla (China)
Production
Jun 2014
-
Mar 2017
Engine
2ZRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

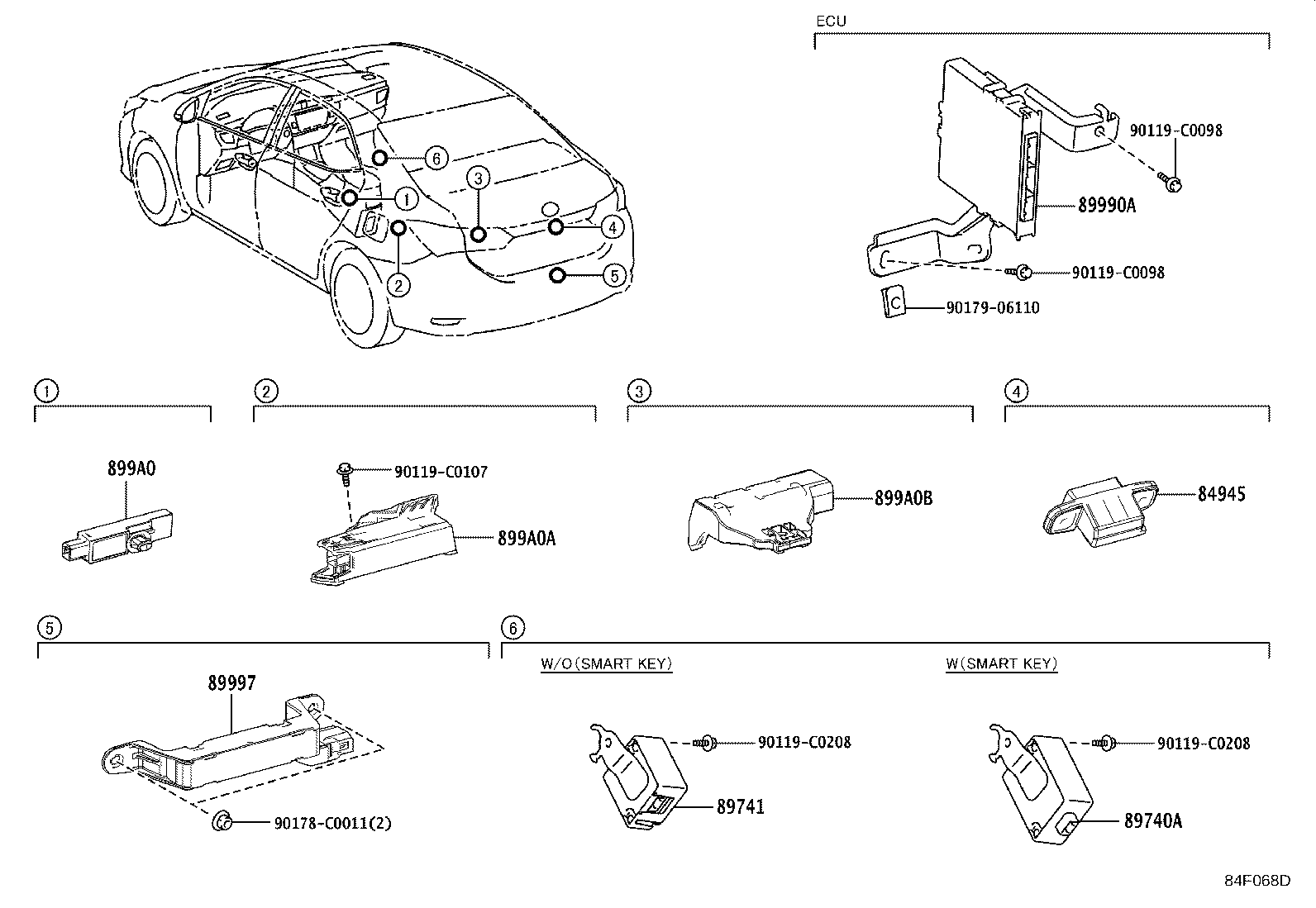

(1406-1610)ZRE182..CVT ; (1406- )ZRE181 ; (1406- )ZRE182..6F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84945 - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-02040 |
ZWE182;NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 89740A - RECEIVER ASSY, SMART DOOR CONTROL | ||||
| 89740-02180 |
ZWE182;NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-02100 |
ZRE18#..GLXI,PREM |
1 | ||
| 89990-02430 |
NRE181,ZRE182..GLXI,PREM |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-02060 |
ZWE182;NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-0D070 |
ZWE182;NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 899A0-02130 |
ZWE182;NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3 | ||||
| 899A0-02140 |
NRE181,ZRE18#..GLXI,PREM |
1 | ||
| Common parts | ||||
| 90119-C0098 | ||||
| 90119-C0107 | ||||
| 90119-C0208 | ||||
| 90178-C0011 | ||||
| 90179-06110 | ||||

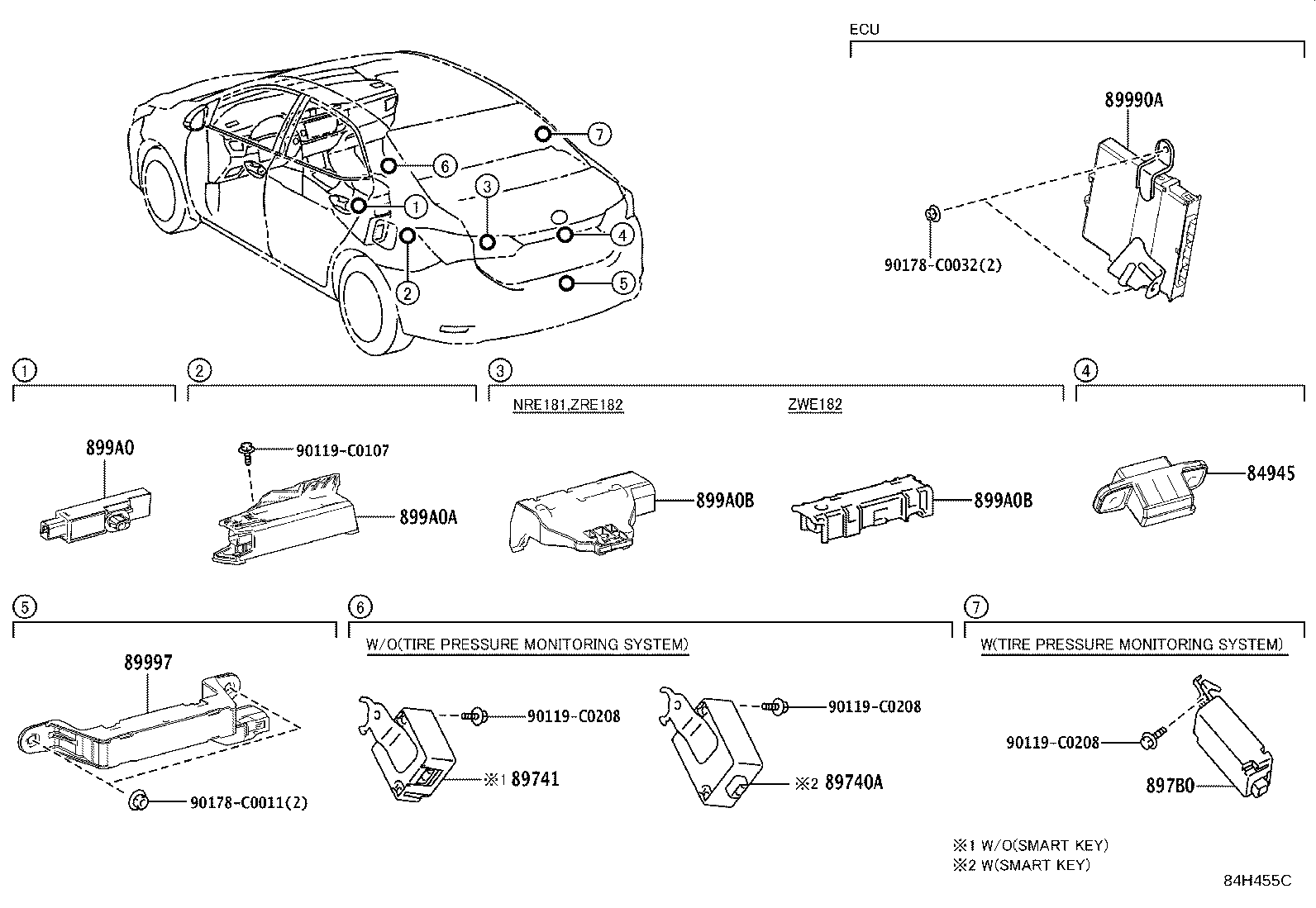

(1512- )ZWE182 ; (1610- )NRE181,ZRE182
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84945 - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-02040 |
ZWE182;NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 89740A - RECEIVER ASSY, SMART DOOR CONTROL | ||||
| 89740-02180 |
ZWE182;NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-02100 |
ZRE18#..GLXI,PREM |
1 | ||
| 89990-02430 |
NRE181,ZRE182..GLXI,PREM |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-02060 |
ZWE182;NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-0D070 |
ZWE182;NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 899A0-02130 |
ZWE182;NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3 | ||||
| 899A0-02140 |
NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3 | ||||
| 899A0-02140 |
NRE181,ZRE18#..GLXI,PREM |
1 | ||
| Common parts | ||||
| 90119-C0107 | ||||
| 90119-C0208 | ||||
| 90178-C0011 | ||||
| 90178-C0032 | ||||
