ZRE182L-GEXGKC (2014)

Toyota Corolla (China)

Production Jun 2014 - Mar 2017
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1406-1703)ZRE182

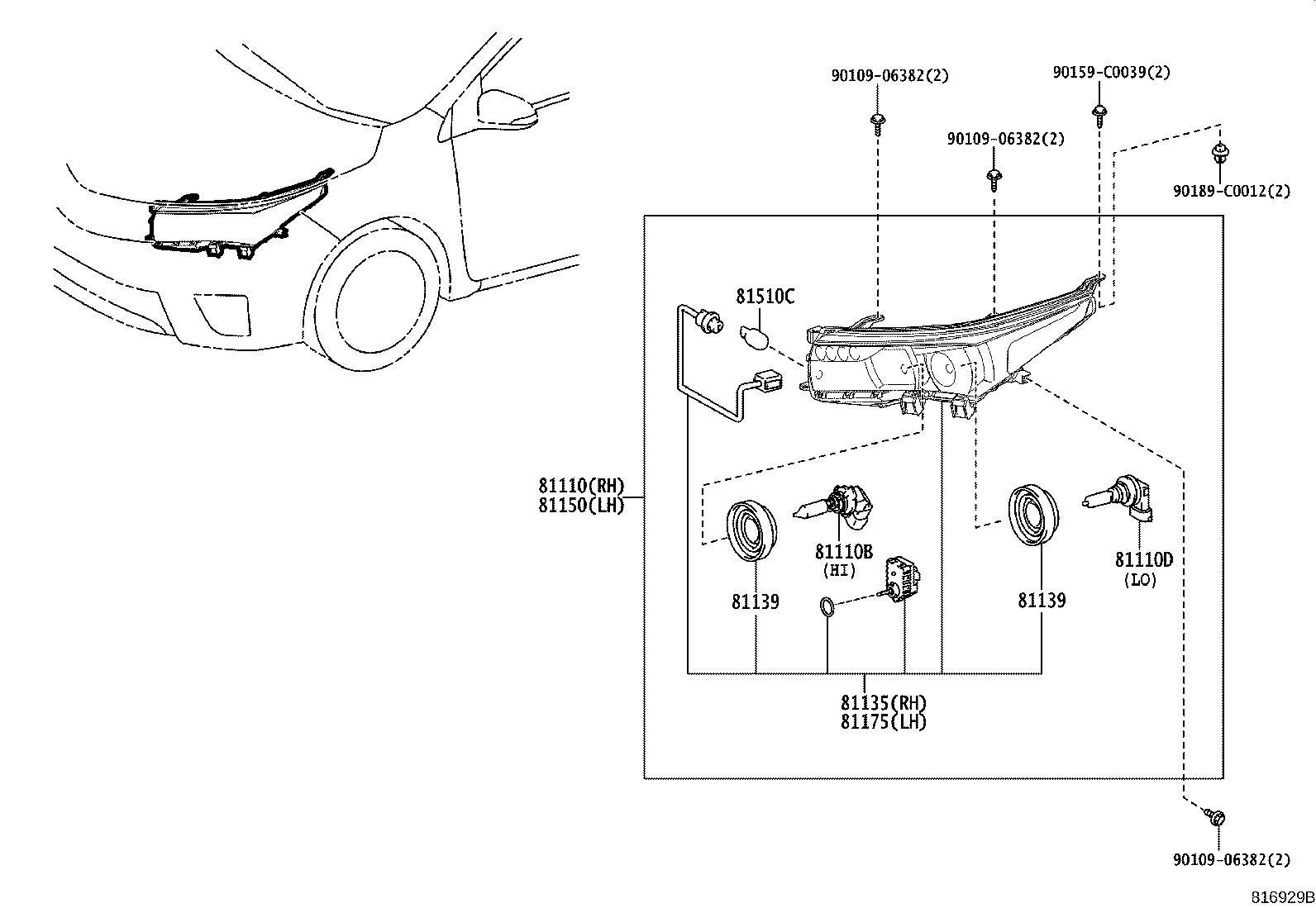

Click highlighted areas on diagram

diagram 81110 81110B 81110D 81135 81139 81139 81150 81175 81510C 9010906382 9010906382 9010906382 90159C0039 90189C0012
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-02J10

ZRE182

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

ZRE182

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13075

ZRE182

12V 55W,HALOGEN,PHILIPS

 2
90981-13085

ZRE182

12V 55W,HALOGEN,OSRAM

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-02J10

ZRE182

 1
81139 - COVER, HEADLAMP SOCKET
81135-02400

ZRE182

 4
81139 - COVER, HEADLAMP SOCKET
81135-02400

ZRE182

 4
81150 - HEADLAMP ASSY, LH
81150-02J10

ZRE182

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-02J10

ZRE182

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

ZRE182,ZWE182

12V 21W,AMBER

 2
Common parts
90109-06382
90159-C0039
90189-C0012
