ZRE182L-GEXGKC (2017)
Toyota Corolla (China)
Production
Apr 2017
-
Feb 2018
Engine
2ZRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1406- )ZRE18#

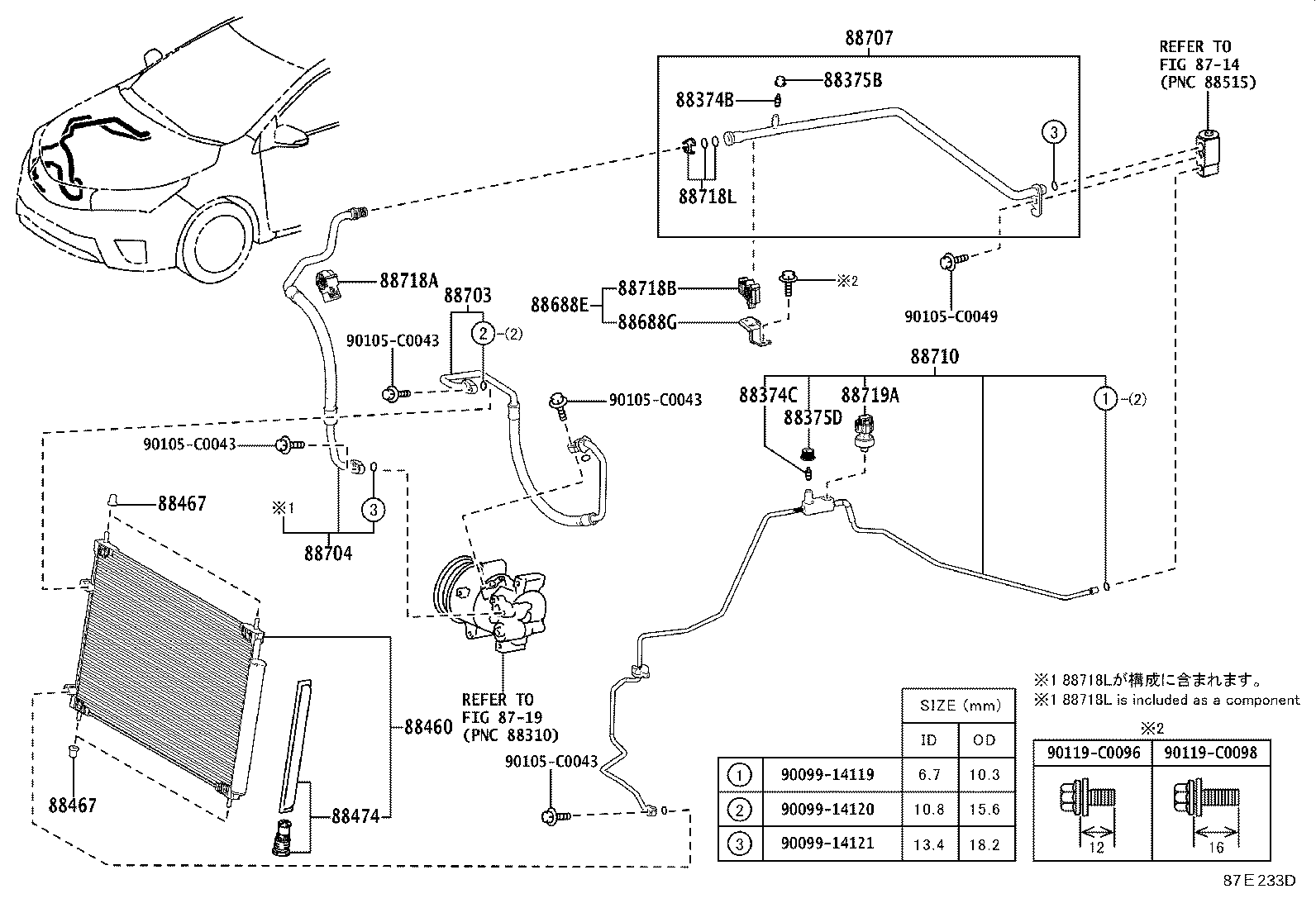

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZRE182 |
1 | ||
| 88374-30010 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
ZRE182 |
1 | ||
| 88374-30010 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 88375-30290 |
ZRE182 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
ZRE182 |
1 | ||
| 88375-30280 |
ZRE18# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88450-02610 |
ZRE182 |
1 | ||
| 88450-02440 |
ZRE18# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-02120 |
ZRE182 |
4 | ||
| 88467-02120 |
ZRE18# |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-02120 |
ZRE182 |
4 | ||
| 88467-02120 |
ZRE18# |
4 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12010 |
NRE181,ZRE18# |
1 | ||
| 88474-12010 |
ZRE182 |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-02B10 |
ZRE182 |
1 | ||
| 88688-02B10 |
ZRE18# |
1 | ||
| 88688G - BRACKET, COOLER REFRIGERANT PIPE | ||||
| 88688-02B30 |
ZRE182 |
1 | ||
| 88688-02B30 |
ZRE18#,ZWE182 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-02B00 |
ZRE18# |
1 | ||
| 88703-02B00 |
ZRE182 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-02B30 |
ZRE182 |
1 | ||
| 88704-02B30 |
ZRE18# |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-02350 |
ZRE182 |
1 | ||
| 88707-02350 |
ZRE18# |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-02B10 |
ZRE182 |
1 | ||
| 88710-02B10 |
ZRE182..CVT |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-02680 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 88718-02680 |
ZRE182 |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-02750 |
ZRE182 |
1 | ||
| 88718-02750 |
NRE181,ZRE18# |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52260 |
ZRE18# |
1 | ||
| 88718-52260 |
ZRE182 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
ZRE182 |
1 | ||
| 88719-33020 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-C0043 | ||||
| 90105-C0049 | ||||
| 90119-C0096 | ||||
| 90119-C0098 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
