ZRE182L-GEXGKC (2017)

Toyota Corolla (China)

Production Apr 2017 - Feb 2018
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1704-1802)ZRE182 ; (1803- )NRE181..CVT..GLI

Click highlighted areas on diagram

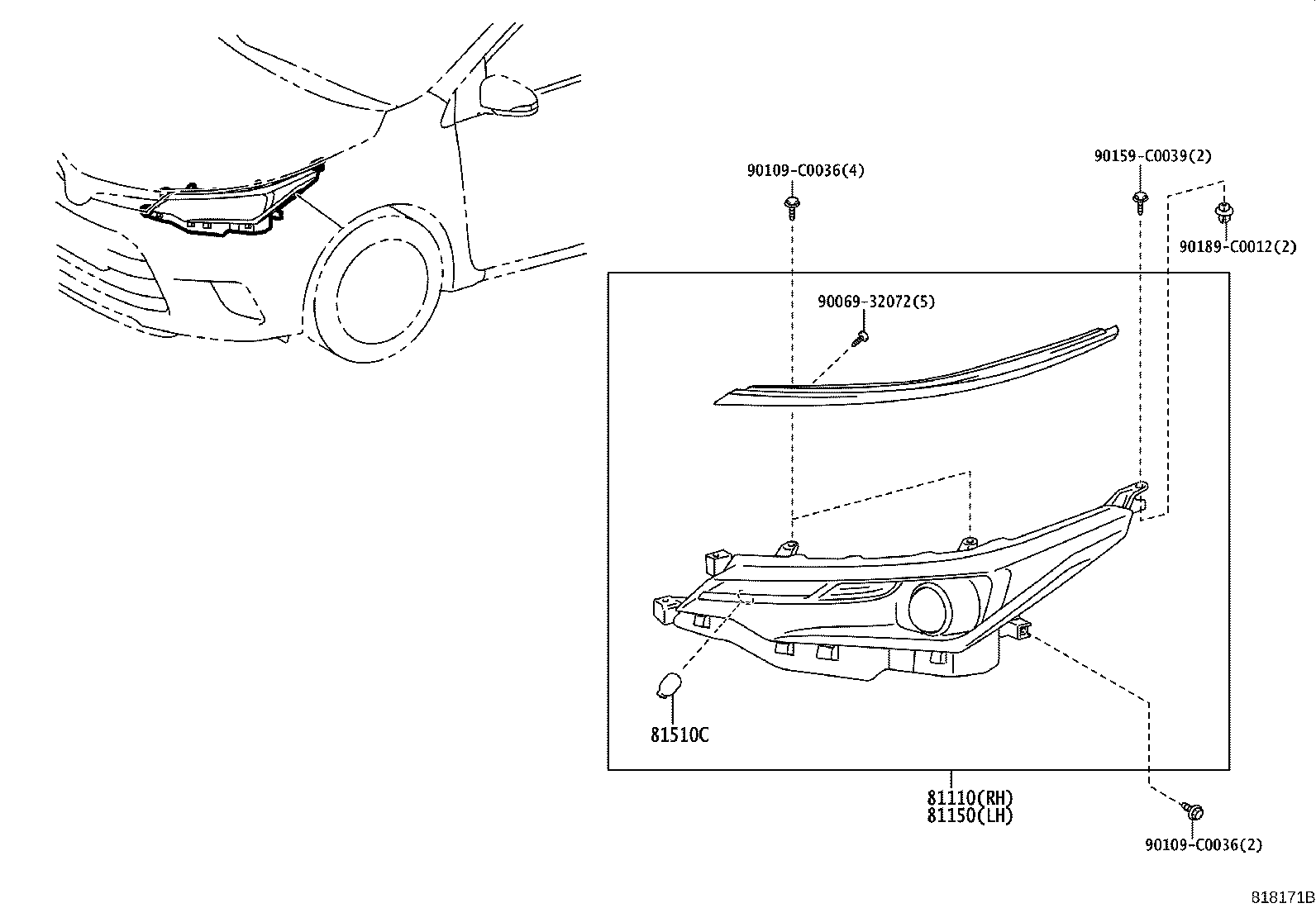

LED HEADLAMP

diagram 81110 81150 81510C 9006932072 90109C0036 90109C0036 90159C0039 90189C0012
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-02J10

ZRE182

 1
81110-02P90

ZRE182

 1
81150 - HEADLAMP ASSY, LH
81150-02J10

ZRE182

 1
81150-02P90

ZRE182

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

ZRE182,ZWE182

12V 21W,AMBER

 2
90981-15021

ZRE182

12V 21W,AMBER

 2
Common parts
90069-32072
90109-C0036
90159-C0039
90189-C0012
