ZRE182L-GEXGKC (2017)
Toyota Corolla (China)

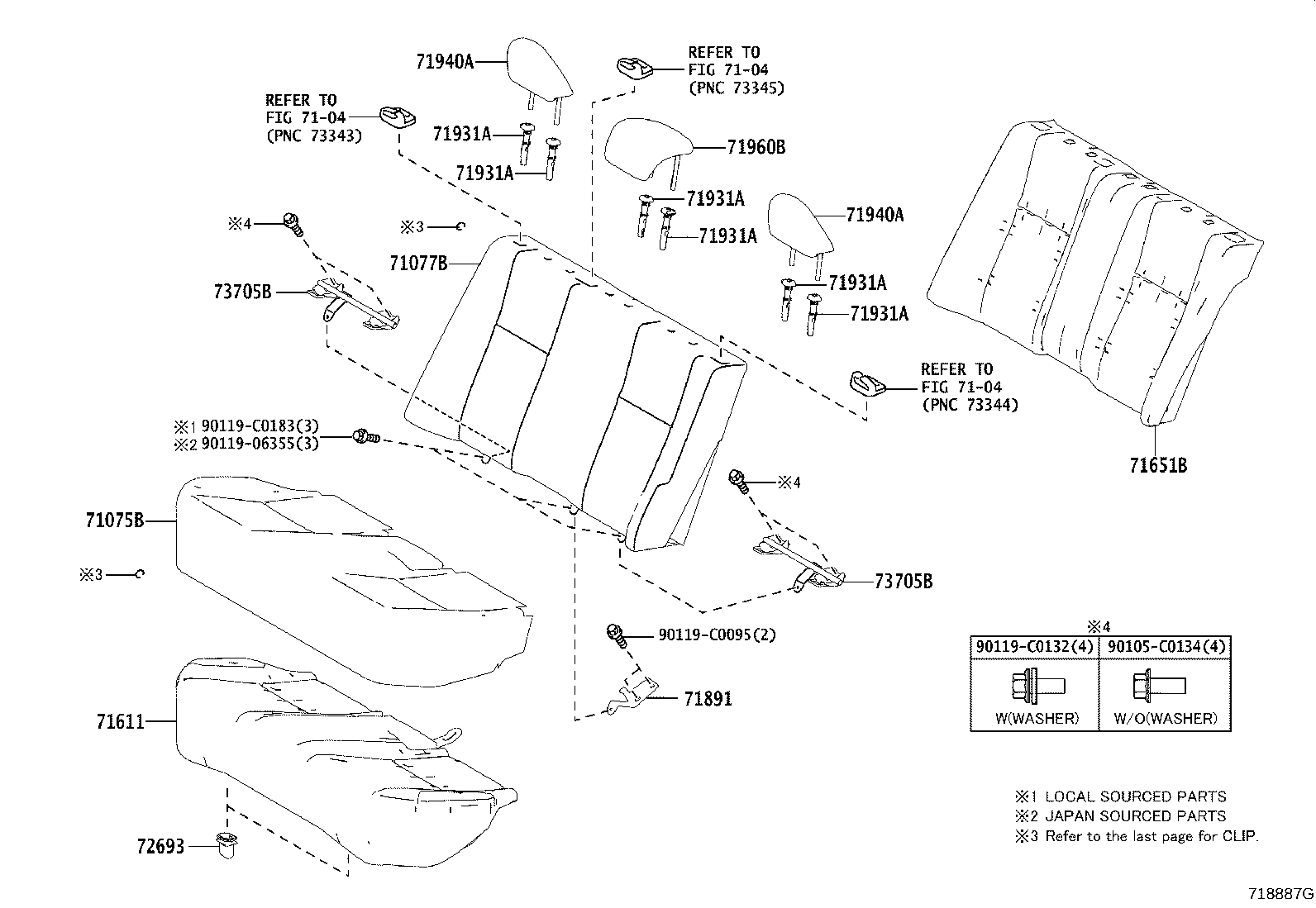

(1406- )NRE181,ZRE18#
FIXED SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02W50A4 |
ZRE18#..GLXI,PREM IVORY,TRIM0# |
1 | ||
| 71075-02W50C5 |
ZRE18#..GLXI,PREM BLACK,TRIM2# |
1 | ||
| 71075-02W5001 |
ZRE182 FLAXEN,TRIM0# |
1 | ||
| 71075-02W5024 |
ZRE182 BLACK,TRIM2# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02441 |
NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 71503-02441 |
ZRE182 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360A1 |
NRE181,ZRE18#,ZWE182 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02360A6 |
ZRE182 W(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120A1 |
NRE181,ZRE18#,ZWE182 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120C0 |
ZRE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120A6 |
ZRE182 W/O(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360A1 |
NRE181,ZRE18#,ZWE182 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02360A6 |
ZRE182 W(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120A1 |
NRE181,ZRE18#,ZWE182 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120C0 |
ZRE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120A6 |
ZRE182 W/O(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360A1 |
NRE181,ZRE18#,ZWE182 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02360A6 |
ZRE182 W(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120A1 |
NRE181,ZRE18#,ZWE182 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120C0 |
ZRE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120A6 |
ZRE182 W/O(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360A1 |
NRE181,ZRE18#,ZWE182 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02360A6 |
ZRE182 W(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120A1 |
NRE181,ZRE18#,ZWE182 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120C0 |
ZRE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120A6 |
ZRE182 W/O(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360A1 |
NRE181,ZRE18#,ZWE182 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02360A6 |
ZRE182 W(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120A1 |
NRE181,ZRE18#,ZWE182 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120C0 |
ZRE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120A6 |
ZRE182 W/O(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360A1 |
NRE181,ZRE18#,ZWE182 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02360A6 |
ZRE182 W(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120A1 |
NRE181,ZRE18#,ZWE182 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120C0 |
ZRE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120A6 |
ZRE182 W/O(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02N40A1 |
ZRE18#..GLXI,PREM IVORY,TRIM0# |
2 | ||
| 71940-02N40C1 |
ZRE18#..GLXI,PREM BLACK,TRIM2# |
2 | ||
| 71940-02N42A4 |
ZRE182 FLAXEN,TRIM0# |
2 | ||
| 71940-02N42C1 |
ZRE182 BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02N40A1 |
ZRE18#..GLXI,PREM IVORY,TRIM0# |
2 | ||
| 71940-02N40C1 |
ZRE18#..GLXI,PREM BLACK,TRIM2# |
2 | ||
| 71940-02N42A4 |
ZRE182 FLAXEN,TRIM0# |
2 | ||
| 71940-02N42C1 |
ZRE182 BLACK,TRIM2# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02G00A3 |
ZRE18#..GLXI,PREM IVORY,TRIM0# |
1 | ||
| 71960-02G02A5 |
ZRE182 FLAXEN,TRIM0# |
1 | ||
| 71960-02G00C3 |
ZRE18#..GLXI,PREM BLACK,TRIM2# |
1 | ||
| 71960-02G02C3 |
ZRE182 BLACK,TRIM2# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-02030 |
ZRE182 |
2 | ||
| 72693-02030 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02200 |
ZRE182 |
2 | ||
| 73705-02200 |
NRE181,ZRE18# |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02200 |
ZRE182 |
2 | ||
| 73705-02200 |
NRE181,ZRE18# |
2 | ||
| Common parts | ||||
| 90105-C0134 | ||||
| 90119-06355 | ||||
| 90119-C0095 | ||||
| 90119-C0132 | ||||
| 90119-C0183 | ||||
| Linked diagrams | ||||
| 7104 | ||||

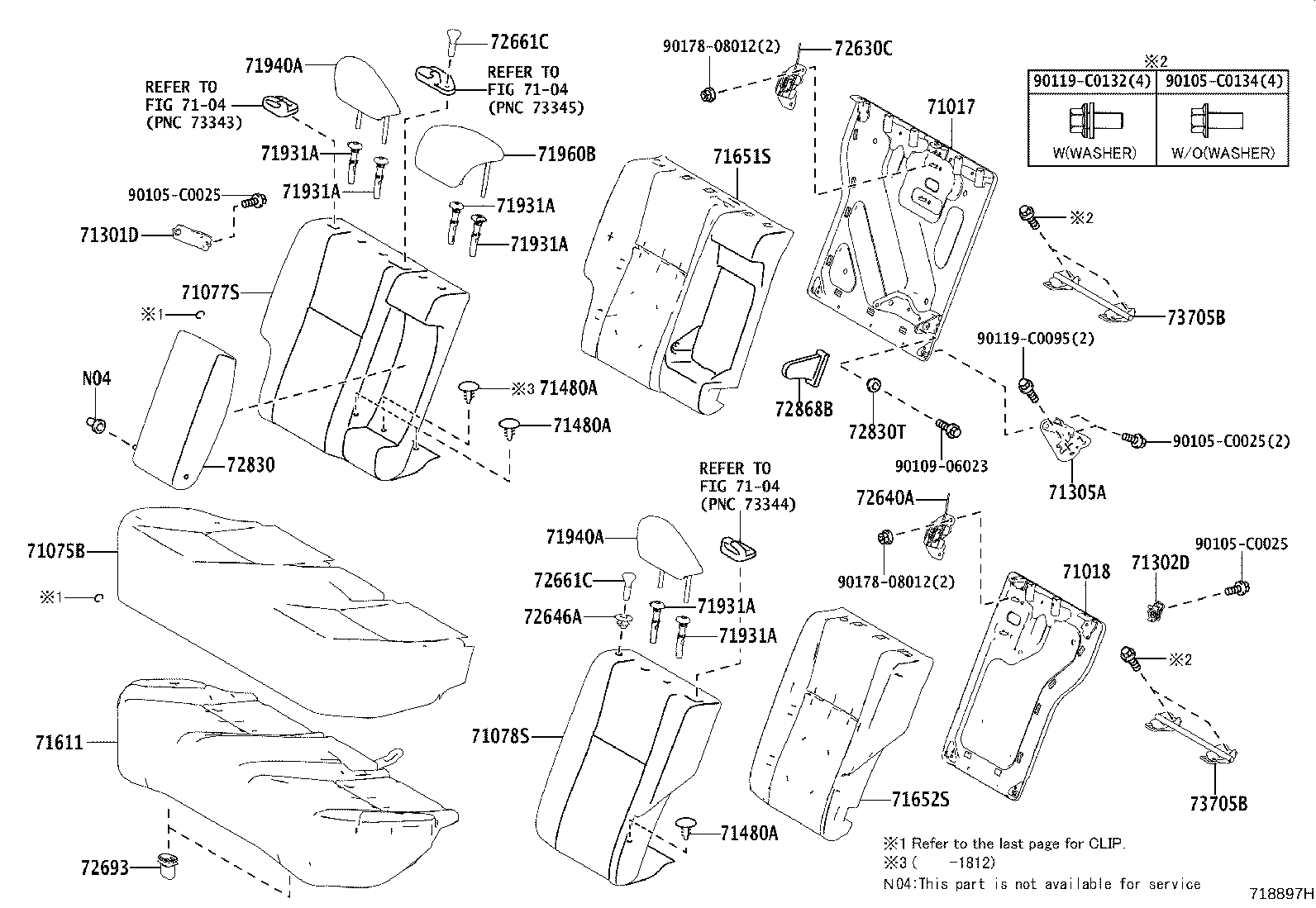

(1406- )NRE181,ZRE18#
FOLDING SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02820 |
ZRE182 |
1 | ||
| 71017-02820 |
NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02510 |
NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 71018-02510 |
ZRE182 |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02W50A4 |
ZRE18#..GLXI,PREM IVORY,TRIM0# |
1 | ||
| 71075-02W50C5 |
ZRE18#..GLXI,PREM BLACK,TRIM2# |
1 | ||
| 71075-02W5001 |
ZRE182 FLAXEN,TRIM0# |
1 | ||
| 71075-02W5024 |
ZRE182 BLACK,TRIM2# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0Z280C6 |
ZRE18#..GLXI,PREM BLACK,TRIM2# |
1 | ||
| 71077-0Z280A4 |
ZRE18#..GLXI,PREM IVORY,TRIM0# |
1 | ||
| 71077-0Z28023 |
ZRE182 BLACK,TRIM2# |
1 | ||
| 71077-0Z280A9 |
ZRE182 FLAXEN,TRIM0# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02T70C5 |
ZRE18#..GLXI,PREM BLACK,TRIM2# |
1 | ||
| 71078-02T70A3 |
ZRE18#..GLXI,PREM IVORY,TRIM0# |
1 | ||
| 71078-02T70A8 |
ZRE182 FLAXEN,TRIM0# |
1 | ||
| 71078-02T70C9 |
ZRE182 BLACK/BLACK,TRIM2# |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71303-02280 |
ZRE182 |
1 | ||
| 71303-02280 |
NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71303-02280 |
ZRE182 |
1 | ||
| 71303-02280 |
NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02300 |
NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 71305-02300 |
ZRE182 |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE182 BLACK |
4 | ||
| 90467-09156C0 |
NRE181,ZRE18#..GLXI,PREM BLACK |
4 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE182 BLACK |
4 | ||
| 90467-09156C0 |
NRE181,ZRE18#..GLXI,PREM BLACK |
4 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE182 BLACK |
4 | ||
| 90467-09156C0 |
NRE181,ZRE18#..GLXI,PREM BLACK |
4 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02441 |
NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 71503-02441 |
ZRE182 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02700 |
NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 71651-02700 |
ZRE182 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02650 |
NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 71652-02650 |
ZRE182 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360A1 |
NRE181,ZRE18#,ZWE182 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02360A6 |
ZRE182 W(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120A1 |
NRE181,ZRE18#,ZWE182 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120C0 |
ZRE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120A6 |
ZRE182 W/O(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360A1 |
NRE181,ZRE18#,ZWE182 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02360A6 |
ZRE182 W(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120A1 |
NRE181,ZRE18#,ZWE182 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120C0 |
ZRE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120A6 |
ZRE182 W/O(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360A1 |
NRE181,ZRE18#,ZWE182 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02360A6 |
ZRE182 W(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120A1 |
NRE181,ZRE18#,ZWE182 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120C0 |
ZRE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120A6 |
ZRE182 W/O(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360A1 |
NRE181,ZRE18#,ZWE182 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02360A6 |
ZRE182 W(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120A1 |
NRE181,ZRE18#,ZWE182 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120C0 |
ZRE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120A6 |
ZRE182 W/O(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360A1 |
NRE181,ZRE18#,ZWE182 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02360A6 |
ZRE182 W(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120A1 |
NRE181,ZRE18#,ZWE182 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120C0 |
ZRE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120A6 |
ZRE182 W/O(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360A1 |
NRE181,ZRE18#,ZWE182 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02360A6 |
ZRE182 W(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120A1 |
NRE181,ZRE18#,ZWE182 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02360C0 |
ZRE182 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120C0 |
ZRE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-02120A6 |
ZRE182 W/O(LOCK),FLAXEN,TRIM0# |
3 | ||
| 71931-02120C0 |
ZRE181..GLXI;NRE181,ZRE182,ZWE182 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02N40A1 |
ZRE18#..GLXI,PREM IVORY,TRIM0# |
2 | ||
| 71940-02N40C1 |
ZRE18#..GLXI,PREM BLACK,TRIM2# |
2 | ||
| 71940-02N42A4 |
ZRE182 FLAXEN,TRIM0# |
2 | ||
| 71940-02N42C1 |
ZRE182 BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02N40A1 |
ZRE18#..GLXI,PREM IVORY,TRIM0# |
2 | ||
| 71940-02N40C1 |
ZRE18#..GLXI,PREM BLACK,TRIM2# |
2 | ||
| 71940-02N42A4 |
ZRE182 FLAXEN,TRIM0# |
2 | ||
| 71940-02N42C1 |
ZRE182 BLACK,TRIM2# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02G00A3 |
ZRE18#..GLXI,PREM IVORY,TRIM0# |
1 | ||
| 71960-02G02A5 |
ZRE182 FLAXEN,TRIM0# |
1 | ||
| 71960-02G00C3 |
ZRE18#..GLXI,PREM BLACK,TRIM2# |
1 | ||
| 71960-02G02C3 |
ZRE182 BLACK,TRIM2# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-02230 |
NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 72630-02230 |
ZRE182 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-02170 |
ZRE182 |
1 | ||
| 72640-02170 |
NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010C0 |
ZRE182 BLACK,TRIM2# |
1 | ||
| 72646-33010A3 |
ZRE182 FLAXEN,TRIM0# |
1 | ||
| 72646-33010C0 |
NRE181,ZRE18#..GLXI,PREM BLACK,TRIM2# |
1 | ||
| 72646-33010A2 |
NRE181,ZRE18#..GLXI,PREM IVORY,TRIM0# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-02120A1 |
ZRE182 FLAXEN,TRIM0# |
2 | ||
| 72661-02120A0 |
NRE181,ZRE18#..GLXI,PREM IVORY,TRIM0# |
2 | ||
| 72661-02120C0 |
NRE181,ZRE18#..GLXI,PREM BLACK,TRIM2# |
2 | ||
| 72661-02120C0 |
ZRE182 BLACK,TRIM2# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-02120A1 |
ZRE182 FLAXEN,TRIM0# |
2 | ||
| 72661-02120A0 |
NRE181,ZRE18#..GLXI,PREM IVORY,TRIM0# |
2 | ||
| 72661-02120C0 |
NRE181,ZRE18#..GLXI,PREM BLACK,TRIM2# |
2 | ||
| 72661-02120C0 |
ZRE182 BLACK,TRIM2# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-02030 |
ZRE182 |
2 | ||
| 72693-02030 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-02F00A2 |
NRE181,ZRE18#..GLXI,PREM IVORY,TRIM0# |
1 | ||
| 72830-02F00C3 |
NRE181,ZRE18#..GLXI,PREM BLACK,TRIM2# |
1 | ||
| 72830-02F00C5 |
ZRE182 BLACK,TRIM2# |
1 | ||
| 72830-02F00A5 |
ZRE182 FLAXEN,TRIM0# |
1 | ||
| 72830T - BUSH (FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-08077 |
ZRE182 |
1 | ||
| 90386-08077 |
NRE181,ZRE18#,ZWE182..GLXI,PREM |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-02180C0 |
NRE181,ZRE18#..GLXI,PREM BLACK,TRIM2# |
1 | ||
| 72868-02180A0 |
NRE181,ZRE18#..GLXI,PREM IVORY,TRIM0# |
1 | ||
| 72868-02180C0 |
ZRE182 BLACK,TRIM2# |
1 | ||
| 72868-02180A1 |
ZRE182 FLAXEN,TRIM0# |
1 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02200 |
ZRE182 |
2 | ||
| 73705-02200 |
NRE181,ZRE18# |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02200 |
ZRE182 |
2 | ||
| 73705-02200 |
NRE181,ZRE18# |
2 | ||
| Common parts | ||||
| 90105-C0025 | ||||
| 90105-C0134 | ||||
| 90109-06023 | ||||
| 90119-C0095 | ||||
| 90119-C0132 | ||||
| 90178-08012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1406- )

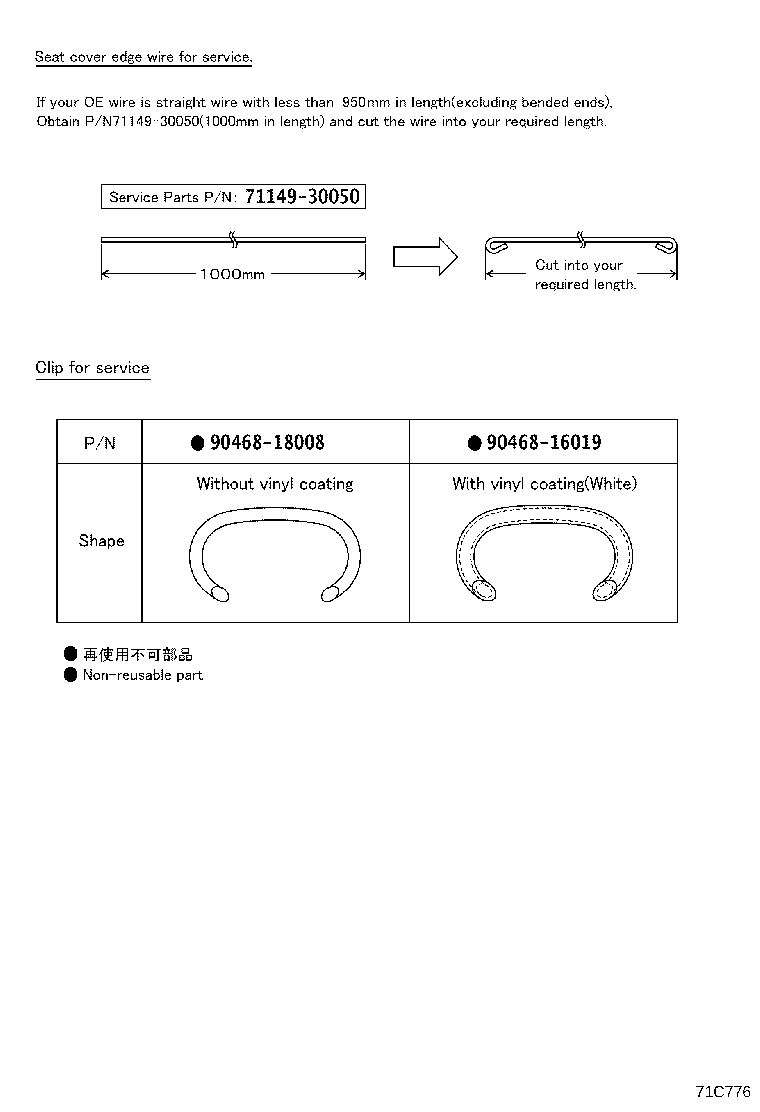

SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
