ZRE182L-GEXGKC (2017)

Toyota Corolla (China)

Production Apr 2017 - Feb 2018
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1406- )

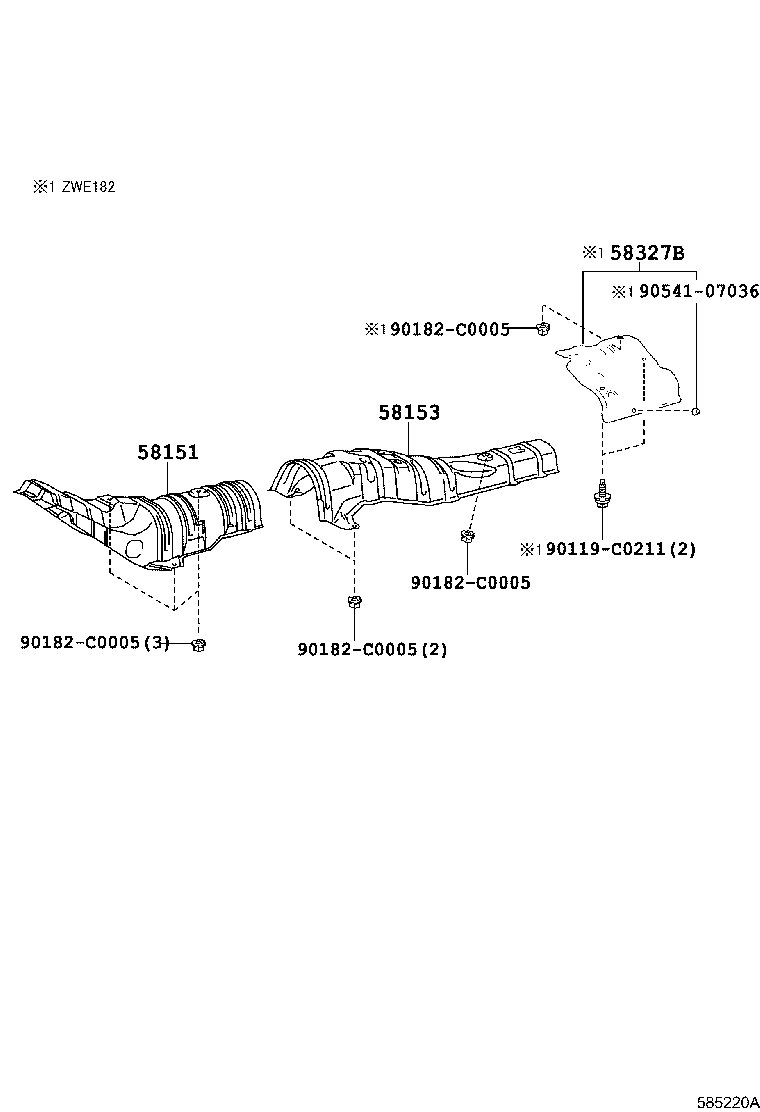

Click highlighted areas on diagram

diagram 58151 58153 58327B 90119C0211 90182C0005 90182C0005 90182C0005 90182C0005 9054107036
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-02310

ZRE182

 1
58151-02310

NRE181,ZRE18#,ZWE182

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-02290

ZRE182

 1
58153-02290

NRE181,ZRE18#,ZWE182

 1
Common parts
90119-C0211
90182-C0005
90541-07036
