ZRE182L-GEXGKC (2017)
Toyota Corolla (China)

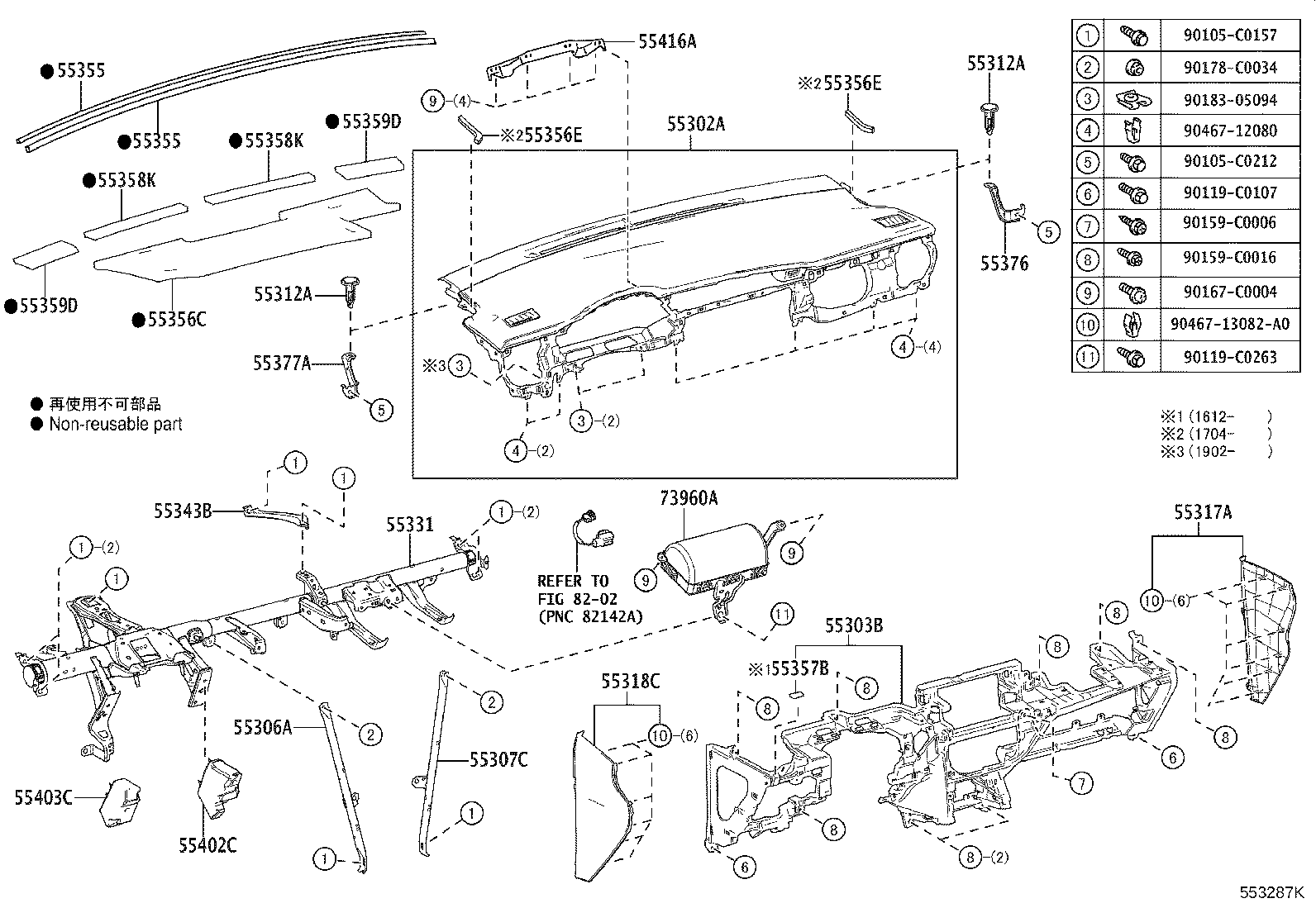

ILLUST NO. 1 OF 3(1406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-02610C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55302-02750C0 |
ZRE18# BLACK,TRIM0#,2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02480C0 |
ZRE18# BLACK,TRIM2# |
1 | ||
| 55303-02521C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55303-02480A0 |
ZRE18# IVORY,TRIM01 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02670 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 55306-02670 |
ZRE182 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02420 |
ZRE182 |
1 | ||
| 55307-02420 |
NRE181,ZRE18#;ZWE182..GLI,GLXI |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
ZRE182 (J) |
2 | ||
| 52161-16010 |
ZRE18# |
2 | ||
| 52161-02040 |
ZRE182 (L) |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
ZRE182 (J) |
2 | ||
| 52161-16010 |
ZRE18# |
2 | ||
| 52161-02040 |
ZRE182 (L) |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-02540A0 |
ZRE18#,ZWE182 IVORY,TRIM01 |
1 | ||
| 55317-02540C0 |
ZRE18#,ZWE182 BLACK,TRIM2# |
1 | ||
| 55317-02541C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-02240A0 |
ZRE18#,ZWE182 IVORY,TRIM01 |
1 | ||
| 55318-02241C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55318-02240C0 |
ZRE18#,ZWE182 BLACK,TRIM2# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-02810 |
ZRE182 |
1 | ||
| 55330-02810 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02240 |
ZRE182 |
1 | ||
| 55343-02240 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02450 |
NRE181,ZRE18#,ZWE182 8 X 12 X 1025 |
1 | ||
| 55355-02440 |
ZRE182 8 X 8 X 1025 |
1 | ||
| 55355-02440 |
NRE181,ZRE18#,ZWE182 8 X 8 X 1025 |
1 | ||
| 55355-02450 |
ZRE182 8 X 12 X 1025 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02450 |
NRE181,ZRE18#,ZWE182 8 X 12 X 1025 |
1 | ||
| 55355-02440 |
ZRE182 8 X 8 X 1025 |
1 | ||
| 55355-02440 |
NRE181,ZRE18#,ZWE182 8 X 8 X 1025 |
1 | ||
| 55355-02450 |
ZRE182 8 X 12 X 1025 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02340 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 55356-02340 |
ZRE182 |
1 | ||
| 55356E - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02400 |
ZRE182 |
2 | ||
| 55356E - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02400 |
ZRE182 |
2 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-02170 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 55358-02170 |
ZRE182 |
2 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-02170 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 55358-02170 |
ZRE182 |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-02170 |
ZRE182 |
2 | ||
| 55359-02170 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-02170 |
ZRE182 |
2 | ||
| 55359-02170 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-02150 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 55376-02150 |
ZRE182 |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-02140 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 55377-02140 |
ZRE182 |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-02080 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 55402-02080 |
ZRE182 |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-02180 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 55403-02180 |
ZRE182 |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-02240 |
NRE181,ZRE18#;ZWE182..GLI,GLXI |
1 | ||
| 55416-02240 |
ZRE182 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02240 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 73960-02240 |
ZRE182 |
1 | ||
| Common parts | ||||
| 90105-C0157 | ||||
| 90105-C0212 | ||||
| 90119-C0107 | ||||
| 90119-C0263 | ||||
| 90159-C0006 | ||||
| 90159-C0016 | ||||
| 90167-C0004 | ||||
| 90178-C0034 | ||||
| 90183-05094 | ||||
| 90467-12080 | ||||
| 90467-13082A0 | ||||
| Linked diagrams | ||||
| 8202 | ||||

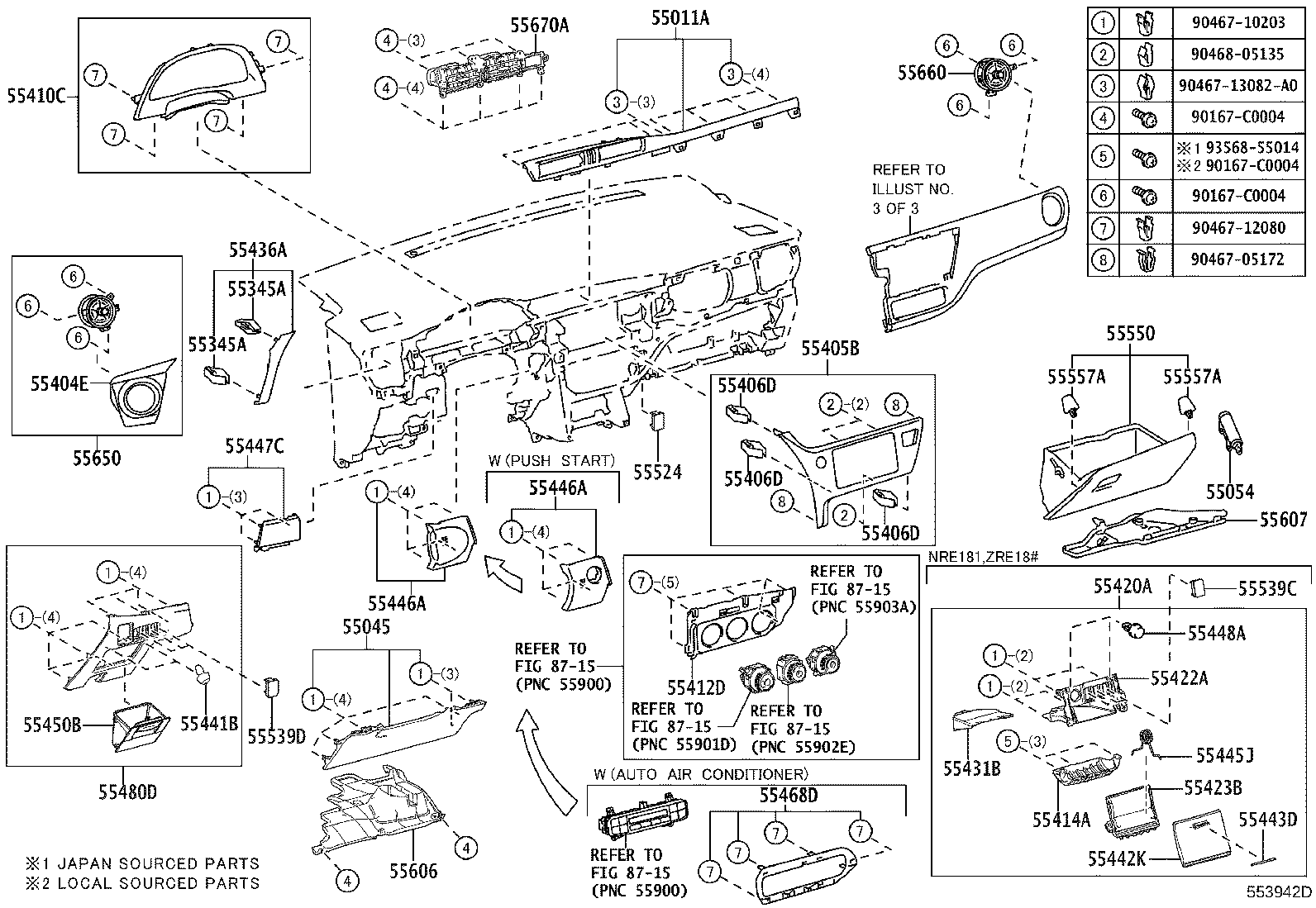

ILLUST NO. 2 OF 3(1704- )NRE181,ZRE182,ZWE182
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-02200 |
NRE181,ZRE182,ZWE182 |
1 | ||
| 55011-02150B0 |
NRE181,ZRE18#,ZWE182 MD.SILVER,TRIM0#,2# |
1 | ||
| 55011-02200C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02470A0 |
ZRE18# IVORY,TRIM01 |
1 | ||
| 55045-02470C0 |
ZRE18# BLACK,TRIM2# |
1 | ||
| 55045-02471C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 55054-47010 |
ZRE182 |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-13082A0 |
ZRE182 MELLOW WHITE |
2 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-13082A0 |
ZRE182 MELLOW WHITE |
2 | ||
| 55404E - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, UPR | ||||
| 55404-02590C2 |
ZRE182 BLACK,TRIM2# |
1 | ||
| 55404-02590C1 |
ZRE182 FLAXEN,TRIM0# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02810C0 |
ZRE18#..GLI,GLXI,PREM 22GY82,TRIM0#,2# |
1 | ||
| 55405-02C60 |
ZRE182 |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
ZRE182 MELLOW WHITE |
3 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
ZRE182 MELLOW WHITE |
3 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
ZRE182 MELLOW WHITE |
3 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02530C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55410-02420C0 |
ZRE18# BLACK,TRIM0#,2# |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-02310 |
ZRE182 |
1 | ||
| 55414-02310 |
NRE181,ZRE18# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-02760A0 |
ZRE18#;NRE181..GL IVORY,TRIM01 |
1 | ||
| 55420-02760C0 |
ZRE18#..GLI,GLXI,PREM BLACK,TRIM01,2# |
1 | ||
| 55420-02760C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-02410 |
ZRE182 |
1 | ||
| 55422-02410 |
NRE181,ZRE18# |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-02130 |
NRE181,ZRE18# |
1 | ||
| 55423-02130 |
ZRE182 |
1 | ||
| 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55431-02050 |
ZRE182 |
1 | ||
| 55431-02050 |
NRE181,ZRE18# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55435-02650C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55435-02650 |
NRE181,ZRE182,ZWE182 |
1 | ||
| 55441B - CUSHION, INSTRUMENT PANEL BOX | ||||
| 58959-60060 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 58959-60060 |
ZRE182 |
2 | ||
| 55442K - DOOR, INSTRUMENT PANEL BOX | ||||
| 55442-02480A0 |
ZRE18#;NRE181..GL IVORY,TRIM01 |
1 | ||
| 55442-02480C0 |
ZRE18#..GLI,GLXI,PREM BLACK,TRIM01,2# |
1 | ||
| 55442-02480C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55443D - KNOB, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-02110 |
ZRE182 |
1 | ||
| 55443-02110 |
NRE181,ZRE18# |
1 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-02300 |
NRE181,ZRE18# |
1 | ||
| 55445-02300 |
ZRE182 |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02520C0 |
ZWE182;NRE181,ZRE18#..GLXI,PREM BLACK,TRIM2# |
1 | ||
| 55446-02520A0 |
ZWE182;NRE181,ZRE18#..GLXI,PREM IVORY,TRIM0# |
1 | ||
| 55446-02520C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02520C0 |
ZWE182;NRE181,ZRE18#..GLXI,PREM BLACK,TRIM2# |
1 | ||
| 55446-02520A0 |
ZWE182;NRE181,ZRE18#..GLXI,PREM IVORY,TRIM0# |
1 | ||
| 55446-02520C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-02280A0 |
NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM IVORY,TRIM0# |
1 | ||
| 55447-02280C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55447-02280C0 |
NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM BLACK,TRIM2# |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 58959-60060 |
NRE181,ZRE18# |
2 | ||
| 58959-60060 |
ZRE182 |
2 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-02220A0 |
ZRE18#;NRE181..GL IVORY,TRIM01 |
1 | ||
| 55450-02220C0 |
ZRE18#..GLI,GLXI,PREM BLACK,TRIM01,2# |
1 | ||
| 55450-02220C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55468D - RETAINER, INSTRUMENT PANEL SAFETY PAD, CENTER | ||||
| 55468-02130 |
ZRE182 |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-02110A0 |
ZRE18#;NRE181..GL IVORY,TRIM01 |
1 | ||
| 55480-02110C0 |
ZRE18#..GLI,GLXI,PREM BLACK,TRIM01,2# |
1 | ||
| 55480-02111C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-0R020C0 |
NRE181..GL,GLI;ZRE18#..GL,GLI,GLXI BLACK |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-0R020A1 |
NRE181..GL;ZRE18#..GL,GLXI;ZRE181..5F..GLI IVORY,TRIM01 |
1 | ||
| 55539-0R020C0 |
ZRE18#..GLXI;ZRE181..5F..GLI BLACK,TRIM01,2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02501C0 |
ZRE18#,ZWE182 BLACK,TRIM2# |
1 | ||
| 55550-02502C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55550-02501A0 |
ZRE18#,ZWE182 IVORY,TRIM0# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 55557-60050 |
ZRE182 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 55557-60050 |
ZRE182 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02290 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 55606-02290 |
ZRE182 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02260 |
ZRE18# |
1 | ||
| 55607-02261 |
ZRE182 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02560A0 |
ZRE181..GL;ZRE182..CVT;NRE181,ZWE182 IVORY,TRIM0# |
1 | ||
| 55650-02560C0 |
ZRE181..GL;ZRE182..CVT;NRE181,ZWE182 BLACK,TRIM2# |
1 | ||
| 55650-02650C3 |
ZRE182 BLACK,TRIM2# |
1 | ||
| 55650-02650C2 |
ZRE182 FLAXEN,TRIM0# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02370B0 |
NRE181,ZRE18#,ZWE182 MD.SILVER,TRIM0#,2# |
1 | ||
| 55660-02170B0 |
ZRE182 SILVER,TRIM0#,2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02520 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 55670-02600 |
ZRE182 |
1 | ||
| Common parts | ||||
| 90167-C0004 | ||||
| 90467-05172 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-13082A0 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||

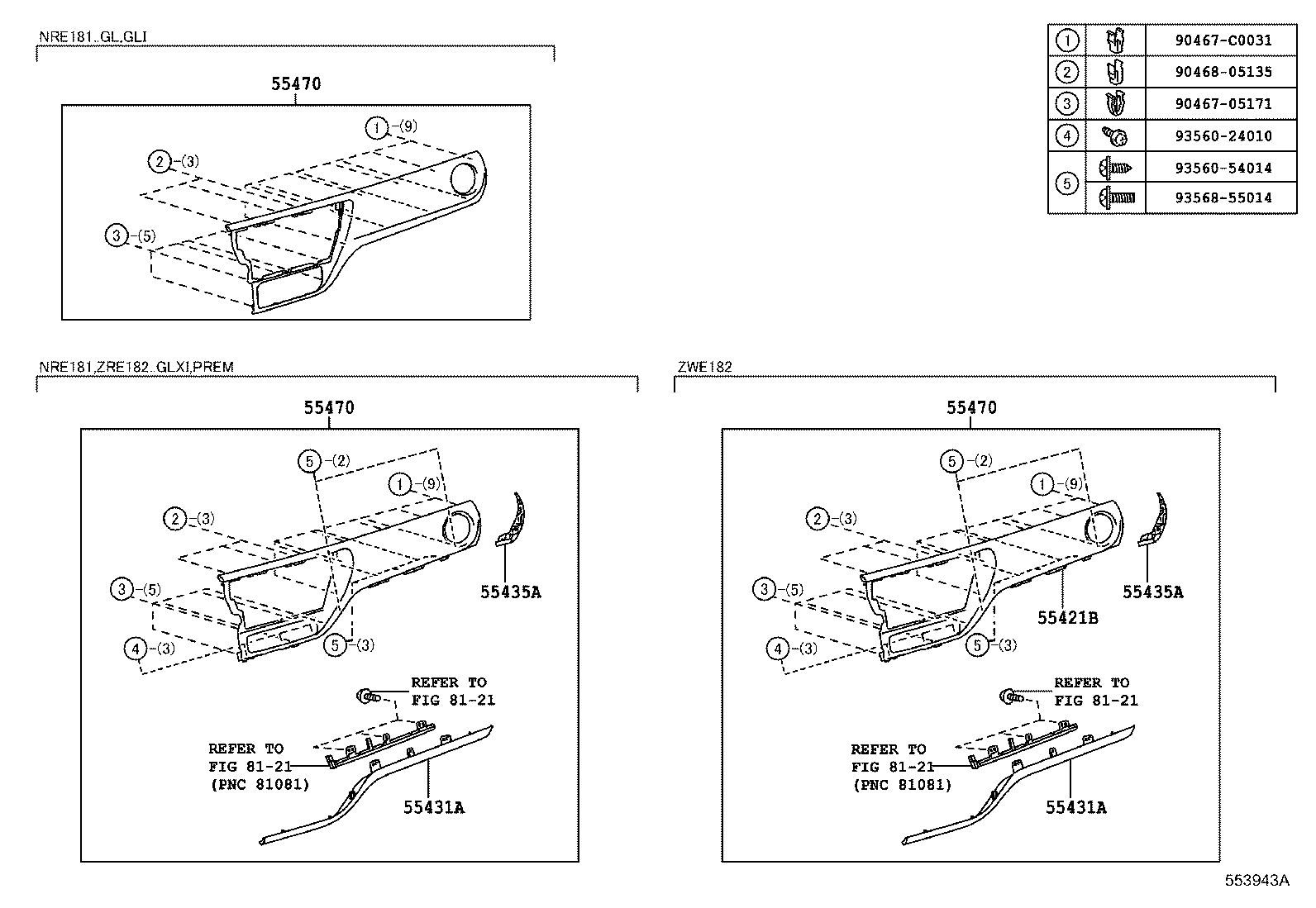

ILLUST NO. 3 OF 3(1704- )NRE181,ZRE182,ZWE182
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55422-02680C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55422-02680C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-02680C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-02680C0 |
ZRE182 BLACK,TRIM0#,2# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02400C0 |
ZRE182 BLACK,TRIM2# |
1 | ||
| 55470-02540A2 |
ZRE182 FLAXEN,TRIM0# |
1 | ||
| 55470-02400A0 |
ZRE182 IVORY,TRIM0# |
1 | ||
| 55470-02540C1 |
ZRE182 BLACK,TRIM2# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02400C0 |
ZRE182 BLACK,TRIM2# |
1 | ||
| 55470-02540A2 |
ZRE182 FLAXEN,TRIM0# |
1 | ||
| 55470-02400A0 |
ZRE182 IVORY,TRIM0# |
1 | ||
| 55470-02540C1 |
ZRE182 BLACK,TRIM2# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02400C0 |
ZRE182 BLACK,TRIM2# |
1 | ||
| 55470-02540A2 |
ZRE182 FLAXEN,TRIM0# |
1 | ||
| 55470-02400A0 |
ZRE182 IVORY,TRIM0# |
1 | ||
| 55470-02540C1 |
ZRE182 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 90467-C0031 | ||||
| 90468-05135 | ||||
| 93560-24010 | ||||
| 93560-54014 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
