ZRE182L-GEXGKC (2017)

Toyota Corolla (China)

Production Apr 2017 - Feb 2018
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1406- )

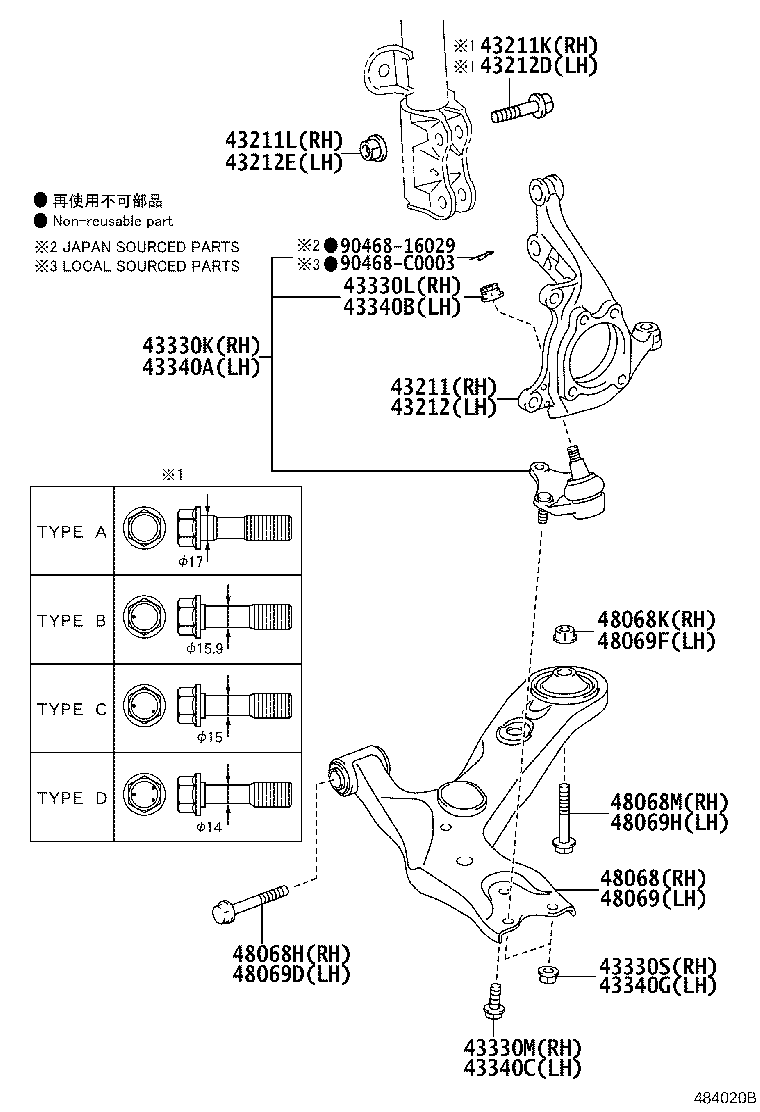

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 48068 48068H 48068K 48068M 48069 48069D 48069F 48069H 9046816029 90468C0003
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-02200

NRE181,ZRE18#,ZWE182

 1
43211-02200

ZRE182

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17010

NRE181,ZRE18#,ZWE182

OD=15,TYPE C:REFER ILLUST.

 1
90105-17009

NRE181,ZRE18#,ZWE182

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17011

NRE181,ZRE18#,ZWE182

OD=14,TYPE D:REFER ILLUST.

 1
90105-17011

ZRE182

OD=14,TYPE D:REFER ILLUST.

 1
90105-C0246

NRE181,ZRE18#,ZWE182

OD=17,TYPE A:REFER ILLUST.

 2
90105-17009

ZRE182

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17010

ZRE182

OD=15,TYPE C:REFER ILLUST.

 1
90105-C0246

ZRE182

OD=17,TYPE A:REFER ILLUST.

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-C0084

NRE181,ZRE18#,ZWE182

 2
90178-C0084

ZRE182

 2
43212 - KNUCKLE, STEERING, LH
43212-02200

NRE181,ZRE18#,ZWE182

 1
43212-02200

ZRE182

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17010

ZRE182

OD=15,TYPE C:REFER ILLUST.

 1
90105-17009

ZRE182

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17009

NRE181,ZRE18#,ZWE182

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17010

NRE181,ZRE18#,ZWE182

OD=15,TYPE C:REFER ILLUST.

 1
90105-17011

NRE181,ZRE18#,ZWE182

OD=14,TYPE D:REFER ILLUST.

 1
90105-C0246

ZRE182

OD=17,TYPE A:REFER ILLUST.

 2
90105-17011

ZRE182

OD=14,TYPE D:REFER ILLUST.

 1
90105-C0246

NRE181,ZRE18#,ZWE182

OD=17,TYPE A:REFER ILLUST.

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-C0084

NRE181,ZRE18#,ZWE182

 2
90178-C0084

ZRE182

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09652

NRE181,ZRE182,ZWE182

 1
43330-09652

NRE181,ZRE18#,ZWE182

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-C0003

NRE181,ZRE18#,ZWE182

(L)

 1
90171-14011

NRE181,ZRE18#,ZWE182

(J)

 1
90171-C0003

ZRE182

(L)

 1
90171-14011

ZRE182

(J)

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-C0059

ZRE182

 1
90105-C0059

NRE181,ZRE18#,ZWE182

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-C0062

ZRE182

 2
90178-C0062

NRE181,ZRE18#,ZWE182

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-09652

NRE181,ZRE18#,ZWE182

 1
43330-09652

NRE181,ZRE182,ZWE182

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14011

ZRE182

(J)

 1
90171-C0003

ZRE182

(L)

 1
90171-C0003

NRE181,ZRE18#,ZWE182

(L)

 1
90171-14011

NRE181,ZRE18#,ZWE182

(J)

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-C0059

NRE181,ZRE18#,ZWE182

 1
90105-C0059

ZRE182

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90178-C0062

NRE181,ZRE18#,ZWE182

 2
90178-C0062

ZRE182

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-02180

ZRE182

 1
48068-02180

NRE181,ZRE18#,ZWE182

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-C0066

NRE181,ZRE18#,ZWE182

 1
90105-C0066

ZRE182

 1
48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90178-C0016

NRE181,ZRE18#,ZWE182

 1
90178-C0016

ZRE182

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90105-C0066

NRE181,ZRE18#,ZWE182

 1
90105-C0066

ZRE182

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-02180

ZRE182

 1
48069-02180

NRE181,ZRE18#,ZWE182

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-C0066

NRE181,ZRE18#,ZWE182

 1
90105-C0066

ZRE182

 1
48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90178-C0016

ZRE182

 1
90178-C0016

NRE181,ZRE18#,ZWE182

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90105-C0066

ZRE182

 1
90105-C0066

NRE181,ZRE18#,ZWE182

 1
Common parts
90468-16029
90468-C0003
