ZRE182L-GEXGKC (2017)
Toyota Corolla (China)
Production
Apr 2017
-
Feb 2018
Engine
2ZRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1406- )NRE181,ZRE18#

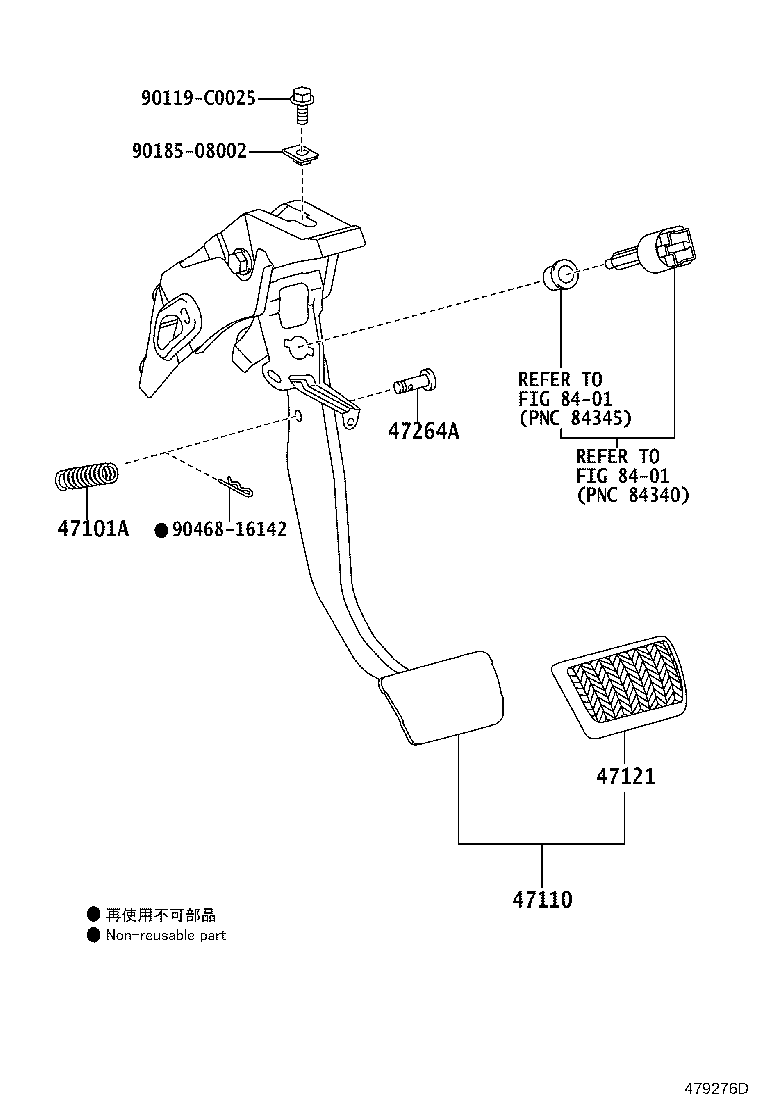

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-13010 |
ZRE182..CVT |
1 | ||
| 90507-15007 |
ZRE182 |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-02800 |
NRE181,ZRE18#..CVT |
1 | ||
| 47110-02800 |
ZRE182 |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-02110 |
NRE181,ZRE18#,ZWE182..CVT |
1 | ||
| 47121-02110 |
ZRE182 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 47148-33011 |
ZRE182 |
1 | ||
| 90249-08256 |
ZRE18# |
1 | ||
| Common parts | ||||
| 90119-C0025 | ||||
| 90185-08002 | ||||
| 90468-16142 | ||||
| Linked diagrams | ||||
| 8401 | ||||
