ZRE182L-GEXGKC (2017)

Toyota Corolla (China)

Production Apr 2017 - Feb 2018
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1406- )1ZRFE,2ZRFE

Click highlighted areas on diagram

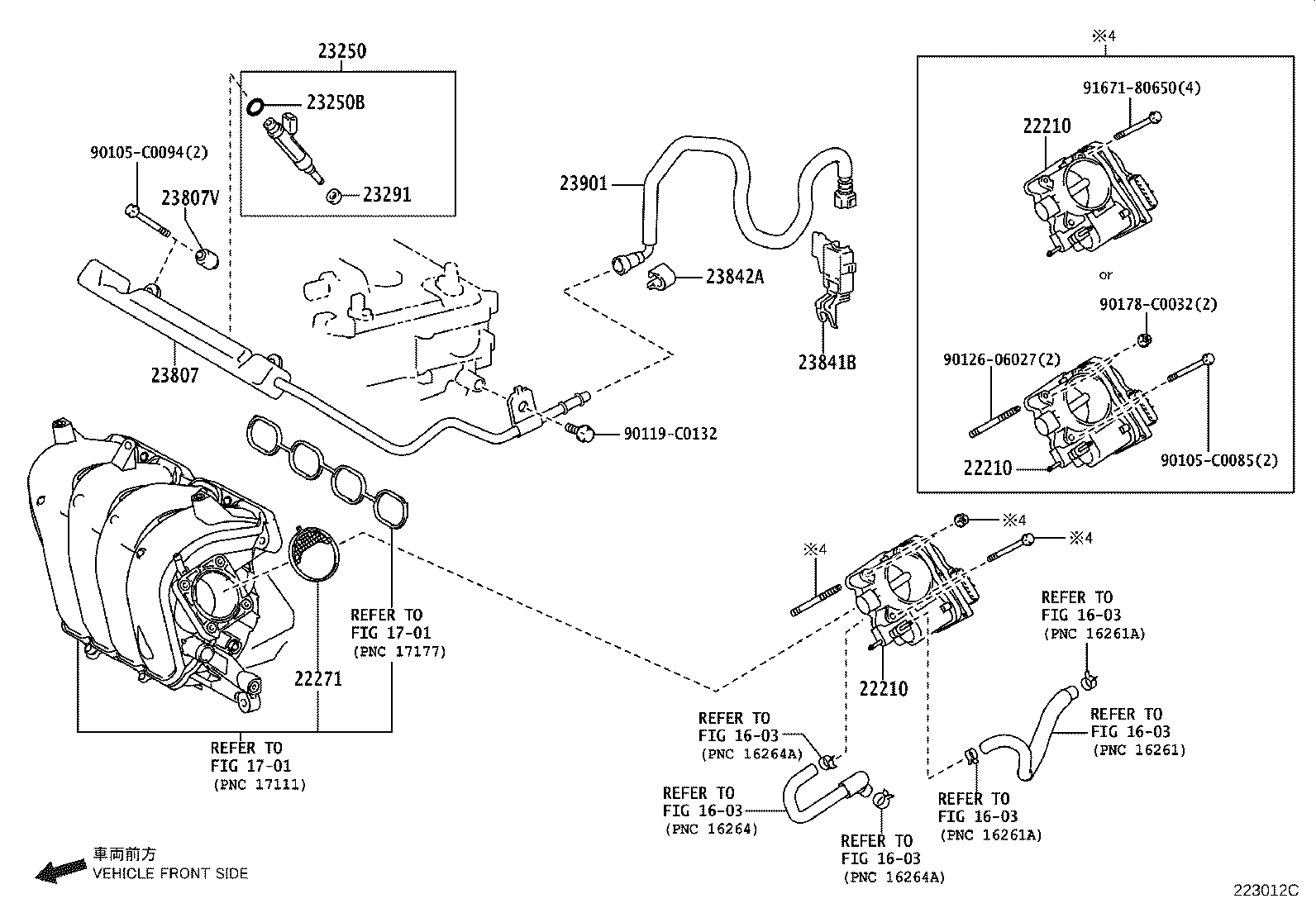

diagram 1603 1603 1603 1603 1603 1603 1701 1701 22210 22210 22210 22271 23250 23250B 23291 23807 23807V 23841B 23842A 23901 90105C0085 90105C0094 90119C0132 9012606027 90178C0032 9167180650
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22030-0T100

1ZRFE,2ZRFE..ZRE18#

 1
22030-0T100

2ZRFE..ZRE182

 1
22210 - BODY ASSY, THROTTLE
22030-0T100

1ZRFE,2ZRFE..ZRE18#

 1
22030-0T100

2ZRFE..ZRE182

 1
22210 - BODY ASSY, THROTTLE
22030-0T100

1ZRFE,2ZRFE..ZRE18#

 1
22030-0T100

2ZRFE..ZRE182

 1
22271 - GASKET, THROTTLE BODY
22271-0T010

2ZRFE..ZRE182

(L)

 1
22271-0T010

1ZRFE,2ZRFE..ZRE18#

 1
22271-75031

2ZRFE..ZRE182

(J)

 1
23250 - INJECTOR ASSY, FUEL
23209-09120

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

(L)

 4
23209-39145

2ZRFE..ZRE182

(J)

 4
23209-39145

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

(J)

 4
23209-09120

2ZRFE..ZRE182

(L)

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

2ZRFE..ZRE182

(J)

 4
90301-07037

1ZRFE,2ZRFE..ZRE18#

 4
90301-C0072

2ZRFE..ZRE182

(L)

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-0P020

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

 4
23291-0P020

2ZRFE..ZRE182

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-37051

2ZRFE..ZRE182

 1
23814-37051

1ZRFE,2ZRFE..ZRE18#

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-37010

2ZRFE..ZRE182

 2
23891-37010

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-37090

2ZRFE..ZRE182

 1
23841-37090

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-28010

2ZRFE..ZRE182

(J)

 1
23842-28010

1ZRFE,2ZRFE..ZRE18#

 1
23842-0D020

2ZRFE..ZRE182

(L)

 1
23901 - TUBE SUB-ASSY, FUEL
23901-0T010

2ZRFE..ZRE182

 1
23901-0T010

1ZRFE,2ZRFE..ZRE18#

 1
Common parts
90105-C0085
90105-C0094
90119-C0132
90126-06027
90178-C0032
91671-80650
Linked diagrams
1603
1701
