ZRE182L-GEXGKC (2017)
Toyota Corolla (China)

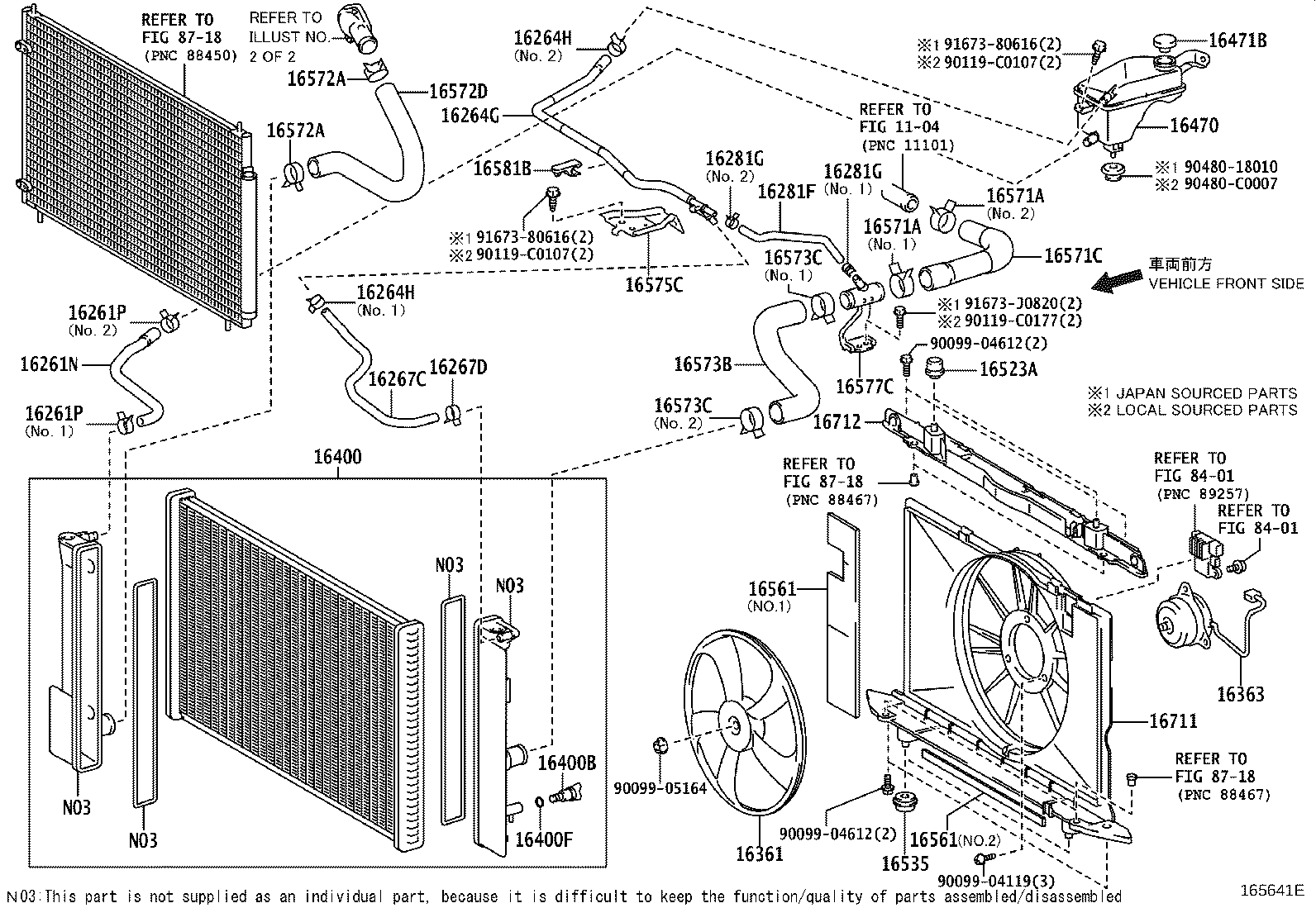

ILLUST NO. 1 OF 2(1704- )1ZRFE,2ZRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-0T080 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 16261-0T080 |
2ZRFE..ZRE182 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0007 |
2ZRFE..ZRE182 NO.2 |
1 | ||
| 90466-C0006 |
1ZRFE,2ZRFE..ZRE18# NO.1 |
1 | ||
| 90466-C0007 |
1ZRFE,2ZRFE..ZRE18# NO.2 |
1 | ||
| 90466-C0006 |
2ZRFE..ZRE182 NO.1 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0007 |
2ZRFE..ZRE182 NO.2 |
1 | ||
| 90466-C0006 |
1ZRFE,2ZRFE..ZRE18# NO.1 |
1 | ||
| 90466-C0007 |
1ZRFE,2ZRFE..ZRE18# NO.2 |
1 | ||
| 90466-C0006 |
2ZRFE..ZRE182 NO.1 |
1 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-0T120 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 16264-0T120 |
2ZRFE..ZRE182 |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-C0004 |
2ZRFE..ZRE182 NO.2 |
1 | ||
| 90466-C0003 |
1ZRFE,2ZRFE..ZRE18# NO.1 |
1 | ||
| 90466-C0003 |
2ZRFE..ZRE182 NO.1 |
1 | ||
| 90466-C0004 |
1ZRFE,2ZRFE..ZRE18# NO.2 |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-C0004 |
2ZRFE..ZRE182 NO.2 |
1 | ||
| 90466-C0003 |
1ZRFE,2ZRFE..ZRE18# NO.1 |
1 | ||
| 90466-C0003 |
2ZRFE..ZRE182 NO.1 |
1 | ||
| 90466-C0004 |
1ZRFE,2ZRFE..ZRE18# NO.2 |
1 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16267-0T031 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 16267-0T031 |
2ZRFE..ZRE182 |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-15022 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 90467-15022 |
2ZRFE..ZRE182 |
1 | ||
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16281-0T040 |
2ZRFE..ZRE182 |
1 | ||
| 16281-0T040 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-17013 |
1ZRFE,2ZRFE..ZRE18# NO.1 |
1 | ||
| 90466-C0005 |
2ZRFE..ZRE182 NO.2 |
1 | ||
| 90466-C0005 |
1ZRFE,2ZRFE..ZRE18# NO.2 |
1 | ||
| 90467-17013 |
2ZRFE..ZRE182 NO.1 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-17013 |
1ZRFE,2ZRFE..ZRE18# NO.1 |
1 | ||
| 90466-C0005 |
2ZRFE..ZRE182 NO.2 |
1 | ||
| 90466-C0005 |
1ZRFE,2ZRFE..ZRE18# NO.2 |
1 | ||
| 90467-17013 |
2ZRFE..ZRE182 NO.1 |
1 | ||
| 16361 - FAN | ||||
| 16361-0T100 |
2ZRFE..ZRE182..CVT |
1 | ||
| 16361-0T100 |
2ZRFE..ZRE182 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0T070 |
2ZRFE..ZRE182..CVT |
1 | ||
| 16363-0T070 |
2ZRFE..ZRE182 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0T210 |
2ZRFE..ZRE182..CVT |
1 | ||
| 16400-0T210 |
2ZRFE..ZRE182 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0H290 |
2ZRFE..ZRE182 |
1 | ||
| 16417-0H290 |
1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-0T010 |
2ZRFE..ZRE182 |
1 | ||
| 16480-0T010 |
1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182 |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-37010 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0T060 |
2ZRFE..ZRE182 |
2 | ||
| 16523-0T060 |
1ZRFE,2ZRFE..ZRE18# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0T060 |
1ZRFE,2ZRFE..ZRE18# |
2 | ||
| 16535-0T060 |
2ZRFE..ZRE182 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0T230 |
2ZRFE..ZRE182 NO.2 |
1 | ||
| 16561-0T050 |
2ZRFE..ZRE182 NO.1 |
1 | ||
| 16561-0T050 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0T230 |
2ZRFE..ZRE182 NO.2 |
1 | ||
| 16561-0T050 |
2ZRFE..ZRE182 NO.1 |
1 | ||
| 16561-0T050 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-C0008 |
2ZRFE..ZRE182 NO.2 |
1 | ||
| 90466-C0009 |
1ZRFE,2ZRFE..ZRE18# NO.1 |
1 | ||
| 90466-C0009 |
2ZRFE..ZRE182 NO.1 |
1 | ||
| 90466-C0008 |
1ZRFE,2ZRFE..ZRE18# NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-C0008 |
2ZRFE..ZRE182 NO.2 |
1 | ||
| 90466-C0009 |
1ZRFE,2ZRFE..ZRE18# NO.1 |
1 | ||
| 90466-C0009 |
2ZRFE..ZRE182 NO.1 |
1 | ||
| 90466-C0008 |
1ZRFE,2ZRFE..ZRE18# NO.2 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0T010 |
2ZRFE..ZRE182 |
1 | ||
| 16571-0T010 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-C0009 |
2ZRFE..ZRE182 |
2 | ||
| 90466-C0009 |
1ZRFE,2ZRFE..ZRE18# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-C0009 |
2ZRFE..ZRE182 |
2 | ||
| 90466-C0009 |
1ZRFE,2ZRFE..ZRE18# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0T010 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 16572-0T010 |
2ZRFE..ZRE182 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0T060 |
2ZRFE..ZRE182 |
1 | ||
| 16573-0T060 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-C0009 |
2ZRFE..ZRE182 NO.1 & NO.2 |
2 | ||
| 90466-C0009 |
1ZRFE,2ZRFE..ZRE18# NO.1 & NO.2 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-C0009 |
2ZRFE..ZRE182 NO.1 & NO.2 |
2 | ||
| 90466-C0009 |
1ZRFE,2ZRFE..ZRE18# NO.1 & NO.2 |
2 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-0T010 |
2ZRFE..ZRE182 |
1 | ||
| 16575-0T010 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-0T040 |
2ZRFE..ZRE182 |
1 | ||
| 16577-0T040 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-0T060 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 16581-0T060 |
2ZRFE..ZRE182 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0T080 |
2ZRFE..ZRE182..CVT |
1 | ||
| 16711-0T080 |
2ZRFE..ZRE182 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0T040 |
2ZRFE..ZRE182..CVT |
1 | ||
| 16712-0T040 |
2ZRFE..ZRE182 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-C0107 | ||||
| 90119-C0177 | ||||
| 90480-18010 | ||||
| 90480-C0007 | ||||
| 91673-80616 | ||||
| 91673-J0820 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8401 | ||||
| 8718 | ||||

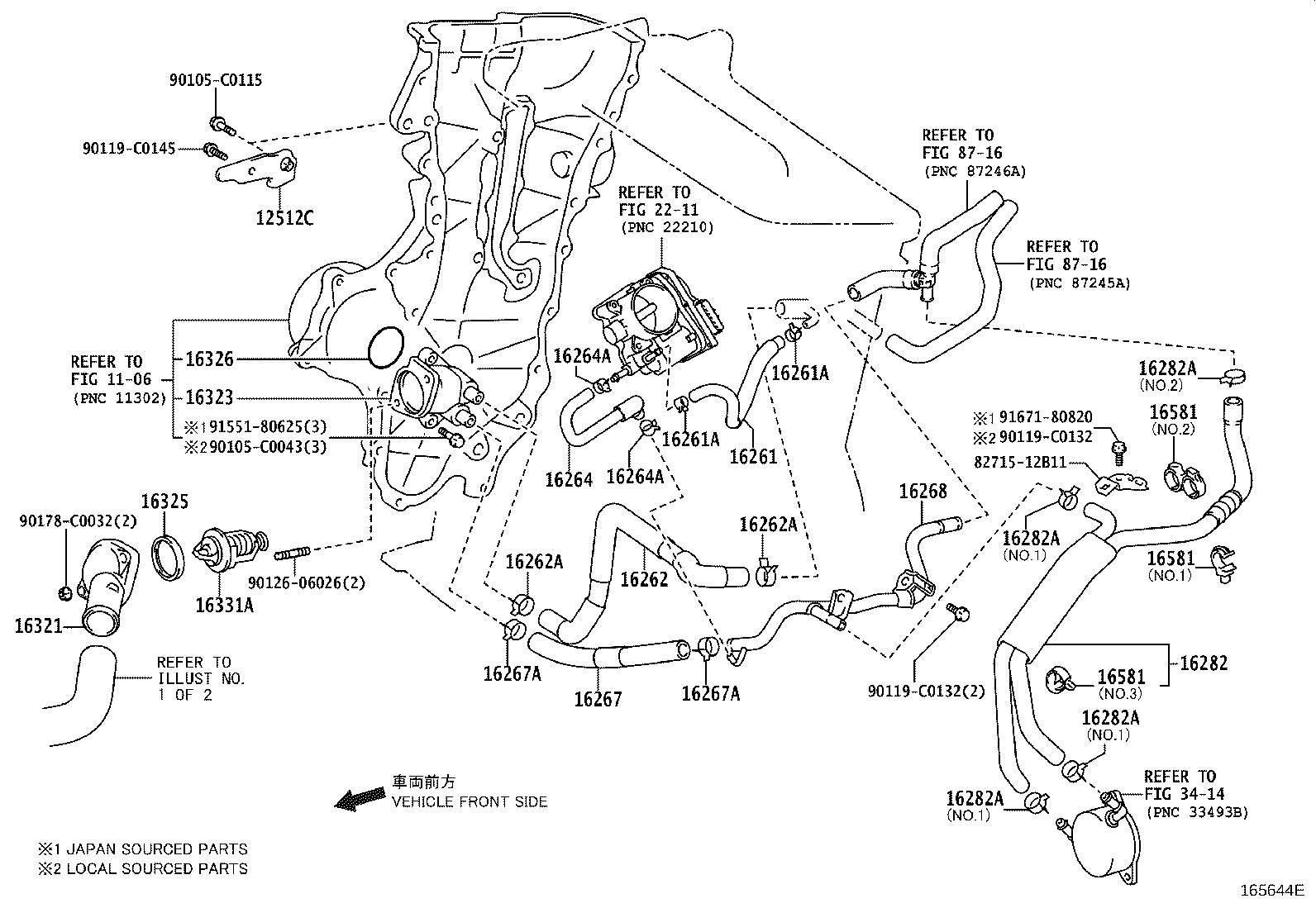

ILLUST NO. 2 OF 2(1406- )1ZRFE,2ZRFE..CVT
