ZRE182L-GEXGKC (2017)
Toyota Corolla (China)
Production
Apr 2017
-
Feb 2018
Engine
2ZRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1406- )1ZRFE,2ZRFE,8ZRFXE

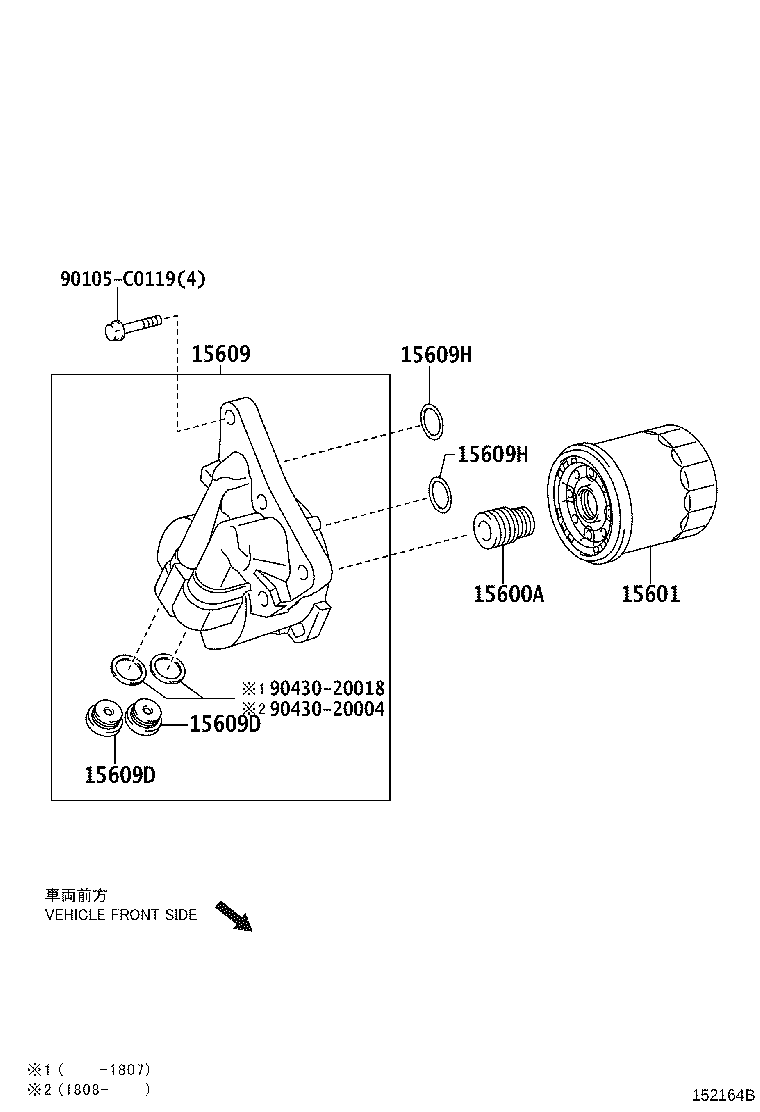

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600A - UNION(FOR OIL FILTER) | ||||
| 90904-04006 |
2ZRFE..ZRE182 |
1 | ||
| 90904-04006 |
1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-CA003 |
2ZRFE..ZRE182 |
1 | ||
| 90915-CA003 |
1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-0T010 |
1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182 |
1 | ||
| 15609-0T010 |
2ZRFE..ZRE182 |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20012 |
2ZRFE..ZRE182 |
2 | ||
| 90341-20012 |
1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182 |
2 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20012 |
2ZRFE..ZRE182 |
2 | ||
| 90341-20012 |
1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182 |
2 | ||
| 15609H - RING, O(FOR OIL FILTER BRACKET) | ||||
| 90301-C0033 |
1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182 |
2 | ||
| 90301-C0033 |
2ZRFE..ZRE182 |
2 | ||
| 15609H - RING, O(FOR OIL FILTER BRACKET) | ||||
| 90301-C0033 |
1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182 |
2 | ||
| 90301-C0033 |
2ZRFE..ZRE182 |
2 | ||
| Common parts | ||||
| 90105-C0119 | ||||
| 90430-20004 | ||||
| 90430-20018 | ||||
