ZRE182L-GEXGKC (2017)

Toyota Corolla (China)

Production Apr 2017 - Feb 2018
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1406- )1ZRFE,2ZRFE..CVT

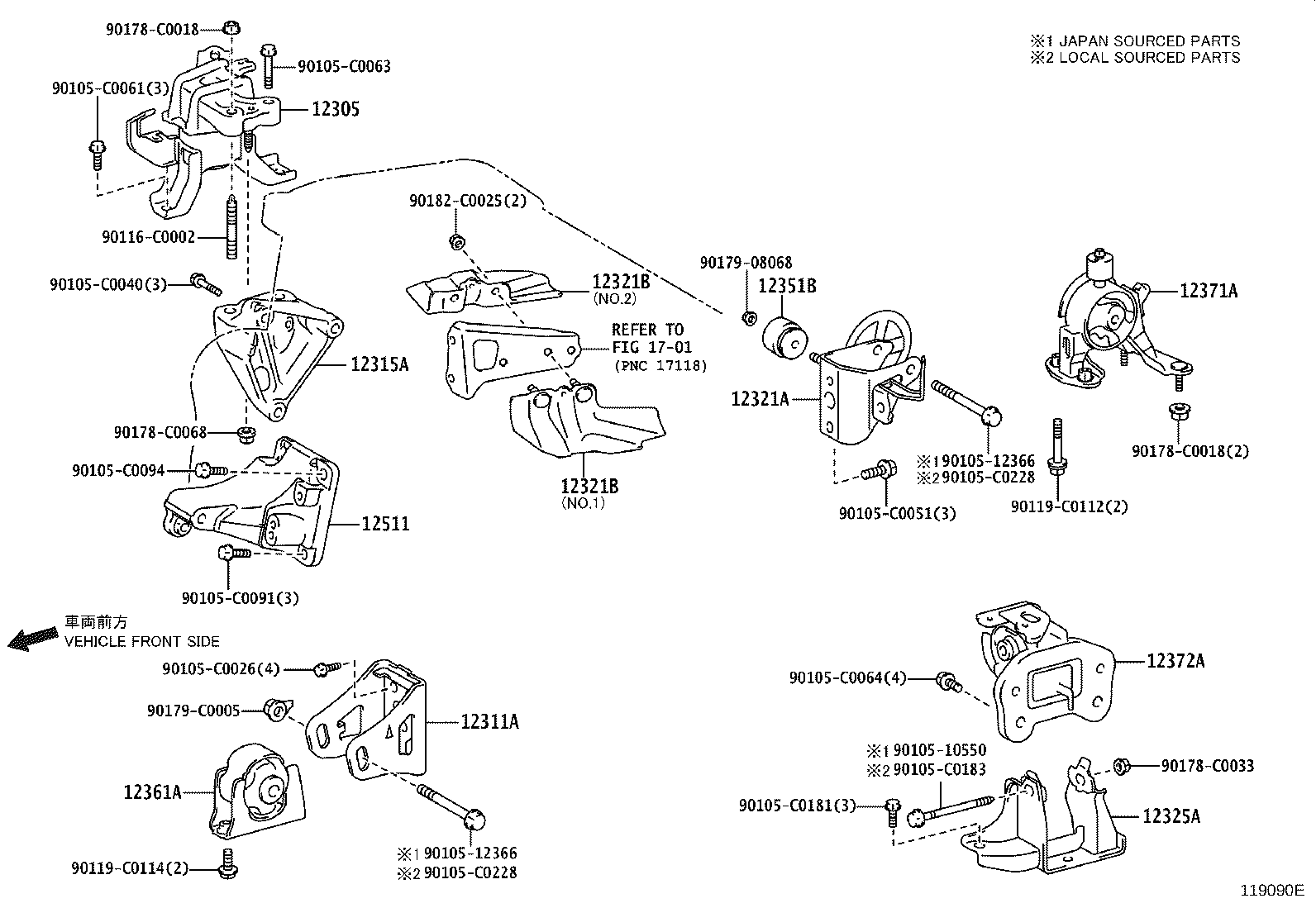

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12321B 12321B 12325A 12351B 12361A 12371A 12372A 12511 1701 9010510550 9010512366 9010512366 90105C0026 90105C0040 90105C0051 90105C0061 90105C0063 90105C0064 90105C0091 90105C0094 90105C0181 90105C0183 90105C0228 90105C0228 90116C0002 90119C0112 90119C0114 90178C0018 90178C0018 90178C0033 90178C0068 9017908068 90179C0005 90182C0025
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0T190

2ZRFE..ZRE182

 1
12305-0T190

1ZRFE,2ZRFE..ZRE18#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0T470

2ZRFE..ZRE182

 1
12311-0T470

2ZRFE..ZRE182;1ZRFE..ZRE181..CVT

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-0T010

1ZRFE,2ZRFE,8ZRFXE..ZRE18#,ZWE182

 1
12315-0T010

2ZRFE..ZRE182

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0T210

2ZRFE..ZRE182

 1
12321-0T210

1ZRFE,2ZRFE..ZRE18#..CVT

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43498-12051

1ZRFE,2ZRFE..ZRE18#

NO.2

 1
43498-02111

2ZRFE..ZRE182

NO.2

 1
43409-12060

1ZRFE,2ZRFE..ZRE18#

NO.1

 1
43409-02061

2ZRFE..ZRE182

NO.1

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43498-12051

1ZRFE,2ZRFE..ZRE18#

NO.2

 1
43498-02111

2ZRFE..ZRE182

NO.2

 1
43409-12060

1ZRFE,2ZRFE..ZRE18#

NO.1

 1
43409-02061

2ZRFE..ZRE182

NO.1

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0T190

1ZRFE,2ZRFE..ZRE18#..CVT

 1
12325-0T190

2ZRFE..ZRE182

 1
12351B - DAMPER, ENGINE MOUNTING
12351-0T020

1ZRFE,2ZRFE..ZRE18#..CVT

 1
12351-0T020

2ZRFE..ZRE182

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0T330

2ZRFE..ZRE182

 1
12361-0T330

1ZRFE,2ZRFE..ZRE18#..CVT

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0T420

1ZRFE,2ZRFE..ZRE18#..CVT

 1
12371-0Y020

2ZRFE..ZRE182

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0T480

1ZRFE,2ZRFE..ZRE18#..CVT

 1
12372-0T480

2ZRFE..ZRE182

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-0T050

1ZRFE,2ZRFE..ZRE18#

 1
12501-0T050

2ZRFE..ZRE182

 1
Common parts
90105-10550
90105-12366
90105-C0026
90105-C0040
90105-C0051
90105-C0061
90105-C0063
90105-C0064
90105-C0091
90105-C0094
90105-C0181
90105-C0183
90105-C0228
90116-C0002
90119-C0112
90119-C0114
90178-C0018
90178-C0033
90178-C0068
90179-08068
90179-C0005
90182-C0025
Linked diagrams
1701
