ZRE181L-GEXGKC (2014)

Toyota Corolla (China)

Production Jun 2014 - Sep 2016
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1406-1703)NRE181,ZRE182,ZWE182 ; (1406- )ZRE181

Click highlighted areas on diagram

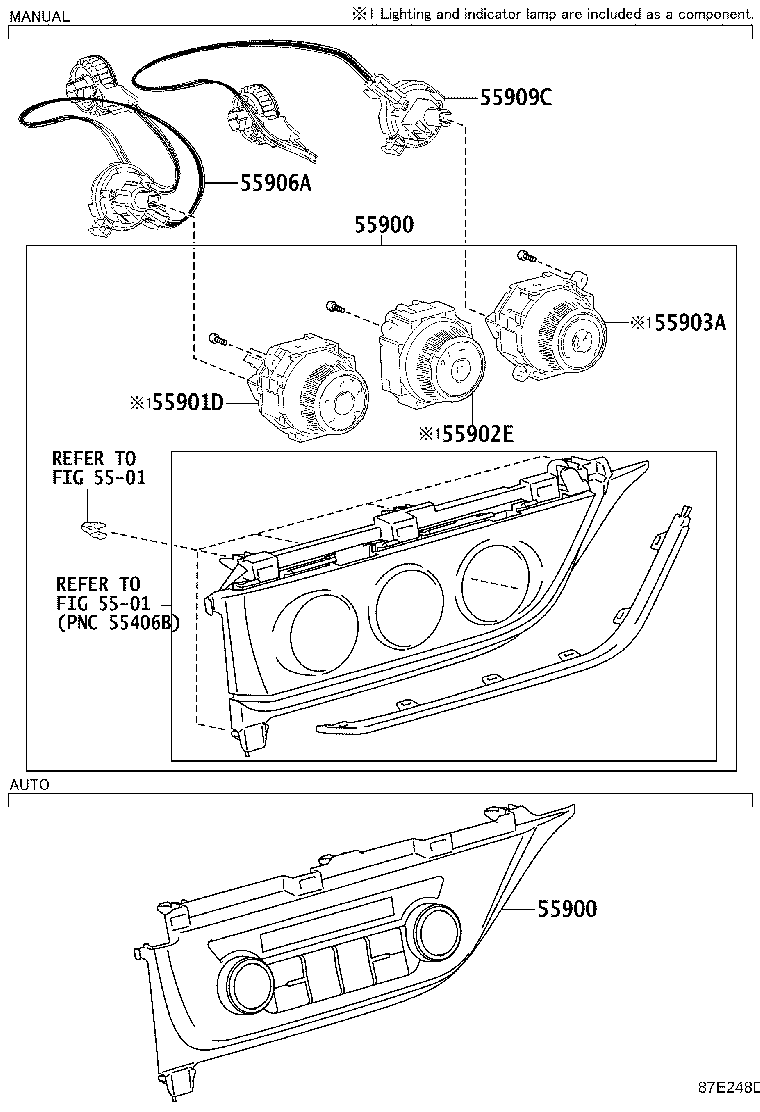

HEATER CONTROL PANEL

diagram 5501 5501 55900 55900 55901D 55902E 55903A 55906A 55909C
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-02660A0

NRE181,ZRE18#..GLXI,PREM

IVORY,TRIM0#

 1
55900-02631A1

ZRE181..GL

IVORY,TRIM0#

 1
55900-02660C0

NRE181,ZRE18#..GLXI,PREM

BLACK,TRIM2#

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-02660A0

NRE181,ZRE18#..GLXI,PREM

IVORY,TRIM0#

 1
55900-02631A1

ZRE181..GL

IVORY,TRIM0#

 1
55900-02660C0

NRE181,ZRE18#..GLXI,PREM

BLACK,TRIM2#

 1
55901D - CONTROL SUB-ASSY, HEATER, NO.1
55901-02120

NRE181,ZRE181..GL,GLI

 1
55902E - CONTROL SUB-ASSY, HEATER, NO.2
55902-02271

NRE181,ZRE181..GL,GLI

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-02370

NRE181,ZRE181..GL,GLI

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0K010

NRE181,ZRE181..GL,GLI

 1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0K010

NRE181,ZRE181..GL,GLI

 1
Linked diagrams
5501

ILLUST NO. 2 OF 3(1406- )

Click highlighted areas on diagram

AIR DUCT

diagram 55084E 55084E 55085 55950G 55979A 55990B 87201 87201B 87201F 87212 87212F 87212G 8724 90167C0004 90167C0004 90167C0004 90167C0004 90167C0004 90167C0004 9017906314 90182C0015
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-02330

NRE181,ZRE18#;ZWE182..GLI,GLXI

 1
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-02330

NRE181,ZRE18#;ZWE182..GLI,GLXI

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55086-02330

NRE181,ZRE18#,ZWE182

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-02360

NRE181,ZRE18#,ZWE182

 1
55979A - CUSHION, DEFROSTER NOZZLE
55979-02090

NRE181,ZRE18#,ZWE182

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-02250

NRE181,ZRE18#,ZWE182

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87220-02280

NRE181,ZRE18#,ZWE182

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87211-02301

NRE181,ZRE18#,ZWE182

 1
87201F - DUCT SUB-ASSY, AIR, NO.3
87211-02310

NRE181,ZRE18#,ZWE182

 1
87212 - DUCT, AIR, REAR NO.1
87215-02080

NRE181,ZRE18#,ZWE182

 1
87212F - DUCT, AIR, REAR NO.2
87213-02100

NRE181,ZRE18#,ZWE182

 1
87212G - DUCT, AIR, REAR NO.3
87212-02100

NRE181,ZRE18#,ZWE182

 1
Common parts
90167-C0004
90179-06314
90182-C0015
Linked diagrams
8724

ILLUST NO. 3 OF 3(1406- )

Click highlighted areas on diagram

SENSOR

diagram 88625H 88625Q 886881E420 88790B 88897P
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-47031

ZWE182;NRE181,ZRE18#..GLXI,PREM

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

ZWE182;NRE181,ZRE18#..GLXI,PREM

 1
88790B - THERMISTOR ASSY
88790-22131

ZRE18#

 1
88790-0D020

NRE181,ZRE18#,ZWE182

 1
88897P - ASPIRATOR
88505-02050

ZWE182;NRE181,ZRE18#..GLXI,PREM

 1
Common parts
88688-1E420
