ZRE181L-GEXGKC (2014)

Toyota Corolla (China)

Production Jun 2014 - Sep 2016
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

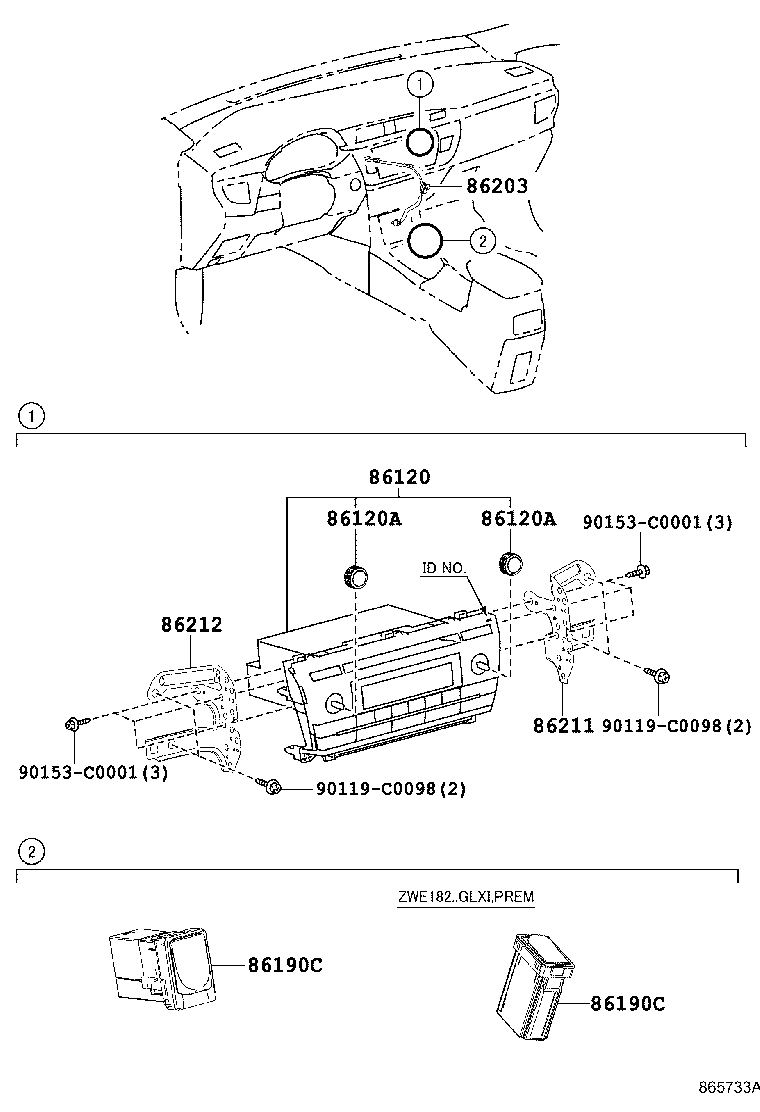

ILLUST NO. 1 OF 2(1406-1704)NRE181,ZRE182,ZWE182 ; (1406- )ZRE181

Click highlighted areas on diagram

RECEIVER & JACK ADAPTER

diagram 86120 86120A 86120A 86190C 86190C 86203 86211 86212 90119C0098 90119C0098 90153C0001 90153C0001
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-02J20

NRE181,ZRE181,ZWE182..GL,GLI

PANASONIC,ID=528CF

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25238

NRE181,ZRE181,ZWE182..GL,GLI

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25238

NRE181,ZRE181,ZWE182..GL,GLI

 2
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0R020

NRE181,ZRE18#,ZWE182..GLXI,PREM

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0R020

NRE181,ZRE18#,ZWE182..GLXI,PREM

 1
86203 - WIRE, RADIO
86203-02100

NRE181,ZRE18#..GLXI,PREM

 1
86211 - BRACKET, RADIO, NO.1
86211-02410

NRE181,ZRE18#,ZWE182

 1
86212 - BRACKET, RADIO, NO.2
86212-02400

NRE181,ZRE18#,ZWE182

 1
Common parts
90119-C0098
90153-C0001

ILLUST NO. 2 OF 2(1406- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 90119C0208
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04204

NRE181,ZRE18#,ZWE182

 1
Common parts
90119-C0208
