ZRE181L-GEXGKC (2014)
Toyota Corolla (China)
ILLUST NO. 1 OF 9(1406- )ZRE18#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
ZRE18#,ZWE182 YAZAKI |
1 | ||
| 83530-28020 |
ZRE18#,ZWE182 DENSO |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-12010 |
ZRE18# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02300 |
ZRE18# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-0R070 |
ZRE18#,ZWE182 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZRE18#,ZWE182 |
1 | ||
| Common parts | ||||
| 82715-02E40 | ||||
| 82715-02E50 | ||||
| 82715-02K80 | ||||
| 82715-42710 | ||||
| 90105-C0048 | ||||
| 90105-C0079 | ||||
| 90119-C0096 | ||||
| 90430-12221 | ||||
ILLUST NO. 2 OF 9(1406- )NRE181,ZRE18#
TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
ZRE181..CVT TMH:REFER 34-01 |
1 | ||
| 84540-02020 |
ZRE181..CVT TMCAP:REFER 34-01 |
1 | ||
| Common parts | ||||
| 82715-52A40 | ||||
| 90119-C0234 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 91611-60822 | ||||
| 91651-40620 | ||||
| Linked diagrams | ||||
| 3304 | ||||

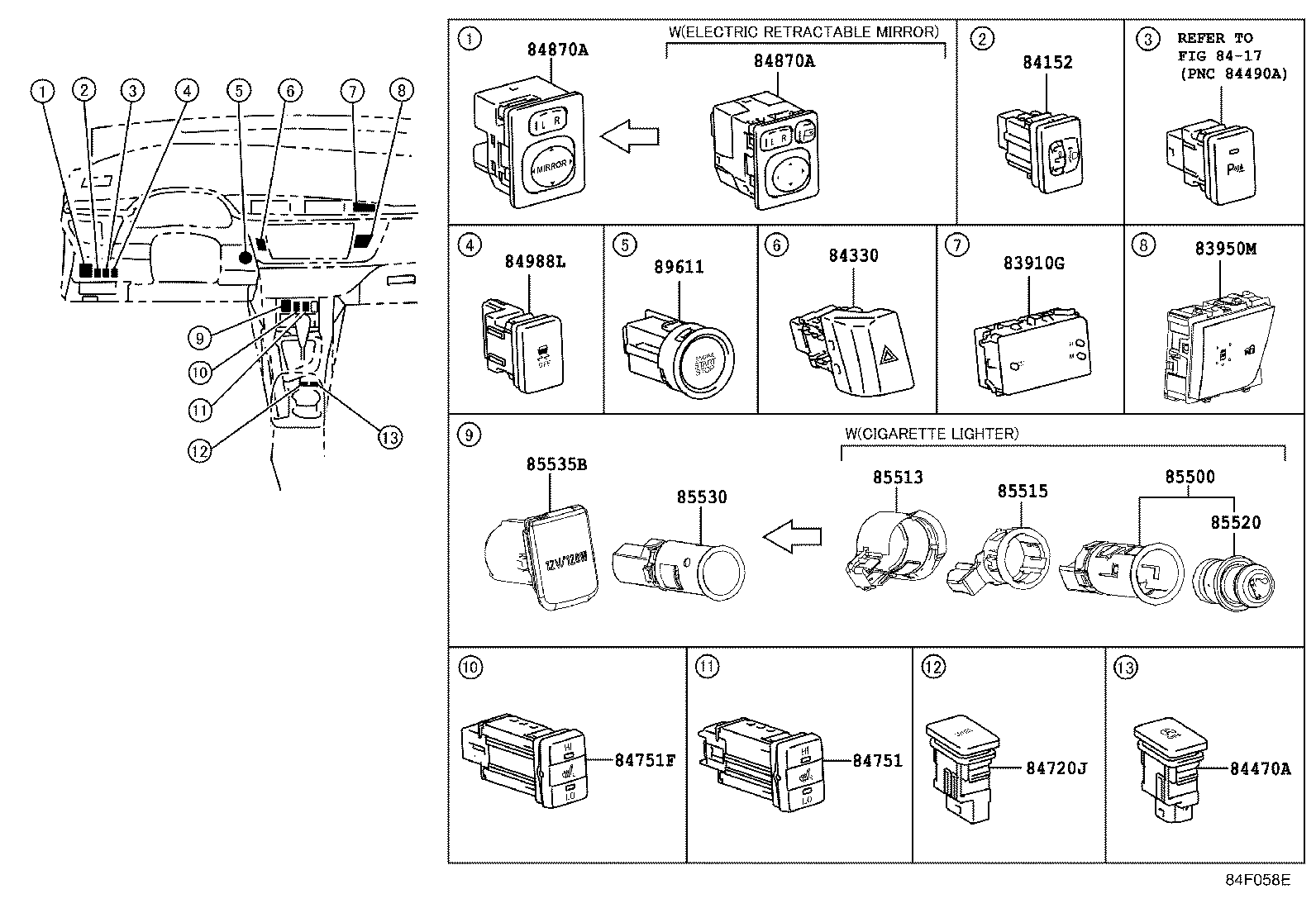

ILLUST NO. 6 OF 9(1406-1703)NRE181,ZRE182 ; (1406- )ZRE181
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-02180 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-02380 |
ZWE182;NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02101 |
NRE181,ZRE18# |
1 | ||
| 84152-02100 |
ZRE18# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02280 |
ZRE18# |
1 | ||
| 84332-02281 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-02040 |
ZRE18#..CVT |
1 | ||
| 84720-02041 |
NRE181,ZRE18#..CVT |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-0R040 |
ZRE181..CVT..GLXI NAVIGATION PACKAGE |
1 | ||
| 84751-0R042 |
ZRE181..CVT..GLXI NAVIGATION PACKAGE |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-0R050 |
ZRE181..CVT..GLXI NAVIGATION PACKAGE |
1 | ||
| 84751-0R052 |
ZRE181..CVT..GLXI NAVIGATION PACKAGE |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02220 |
ZWE182..GLI;NRE181,ZRE181 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02220 |
ZWE182..GLI;NRE181,ZRE181 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-02070 |
NRE181,ZRE18# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-02030 |
NRE181,ZRE18# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-02100 |
NRE181,ZRE18# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-02050 |
NRE181,ZRE18# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0R010 |
ZRE18#..GLXI,PREM |
1 | ||
| 89611-0R011 |
ZRE18#..GLXI,PREM |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 8 OF 9(1406- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-0P090A1 |
ZRE181..CVT..GLXI NAVIGATION PACKAGE,IVORY,TRIM0# |
1 | ||
| 84921-0P090C0 |
ZRE181..CVT..GLXI NAVIGATION PACKAGE,BLACK,TRIM2# |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-0P070A1 |
ZRE181..CVT..GLXI NAVIGATION PACKAGE,IVORY,TRIM0# |
1 | ||
| 84921-0P070C0 |
ZRE181..CVT..GLXI NAVIGATION PACKAGE,BLACK,TRIM2# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-0R010C0 |
ZRE181..CVT..GLXI NAVIGATION PACKAGE,BLACK,TRIM2# |
1 | ||
| 84920-0R010A0 |
ZRE181..CVT..GLXI NAVIGATION PACKAGE,IVORY,TRIM0# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-02070 |
ZRE181..CVT..GLXI NAVIGATION PACKAGE |
1 | ||
| Common parts | ||||
| 93560-14010 | ||||
ILLUST NO. 7 OF 9(1406- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-02020 |
ZRE181..GL,GLI |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02C00 |
NRE181,ZRE18#,ZWE182..GLXI,PREM |
1 | ||
| 84140-02C10 |
ZRE181..GL |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-02660C0 |
NRE181,ZRE181..GLXI BLACK,TRIM0#,2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-06180 |
ZRE181..GLXI |
1 | ||
| 84306-02310 |
ZRE181..GL,GLI |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-06180 |
ZRE181..GLXI |
1 | ||
| 84306-02310 |
ZRE181..GL,GLI |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-02050 |
ZRE181..GL,GLI |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02860 |
NRE181,ZRE18#;ZWE182..GLI,GLXI |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-02020 |
ZRE181..CVT..(GL,GLI) |
1 | ||
| Common parts | ||||
| 90159-C0010 | ||||
| 90168-40113 | ||||
| 90168-C0001 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 9 OF 9(1406- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02160 |
NRE181,ZRE18# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02160 |
NRE181,ZRE18# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0R010 |
ZRE181;ZRE182..6F |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0R010 |
ZRE181;ZRE182..6F |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0R010 |
ZRE181;ZRE182..6F |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0R010 |
ZRE181;ZRE182..6F |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D080 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D080 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D080 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02380 |
ZWE182..GLI;NRE181,ZRE181..GL |
1 | ||
| 84820-0R050 |
ZWE182..GLXI,PREM;NRE181,ZRE18#..GLI,GLXI,PREM |
1 | ||
| Common parts | ||||
| 90164-C0009 | ||||
| 90166-C0004 | ||||
| 90166-C0005 | ||||
ILLUST NO. 3 OF 9(1406-1610)ZRE182..CVT ; (1406- )ZRE181 ; (1406- )ZRE182..6F
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-37060 |
1ZRFE..ZRE181;2ZRFE..ZRE182..6F |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12010 |
ZRE181;ZRE182..6F |
1 | ||
| Common parts | ||||
| 93315-14010 | ||||
ILLUST NO. 5 OF 9(1406- )NRE181,ZRE18#
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZRE181;ZRE182..6F 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZRE181;ZRE182..6F 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
ZRE181;ZRE182..6F 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZRE181;ZRE182..6F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ZRE181;ZRE182..6F 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ZRE181;ZRE182..6F 25A,MINI FUSE |
1 | ||
| 90982-09019 |
ZRE181;ZRE182..6F 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ZRE181;ZRE182..6F 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
ZRE181;ZRE182..6F 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZRE181;ZRE182..6F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ZRE181;ZRE182..6F 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ZRE181;ZRE182..6F 25A,MINI FUSE |
1 | ||
| 90982-09019 |
ZRE181;ZRE182..6F 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ZRE181;ZRE182..6F 7.5A,MINI FUSE,BROWN |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-02170 |
ZRE181;ZRE182..6F |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-02180 |
ZRE181;ZRE182..6F |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-02190 |
ZRE181;ZRE182..6F |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-02Z80 |
ZRE181..GL;ZWE182..GLI |
1 | ||
| 82730-02Z70 |
ZWE182..GLXI;ZRE18#..GLI,GLXI,PREM |
1 | ||
| 82730-02Z81 |
ZRE181..GL |
1 | ||
| 82755 - BLOCK, CENTER RELAY | ||||
| 82755-02060 |
ZRE181;ZRE182..6F |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-T2005 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09120 |
ZWE182;ZRE18#..GLXI,PREM |
1 | ||
| 84340-09140 |
NRE181,ZRE181..GL,GLI |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0R010 |
ZRE181;ZRE182..6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-02050 |
ZRE181;ZRE182..6F (L) |
1 | ||
| 84550-33010 |
ZRE181;ZRE182..6F (J) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2005 |
ZRE181;ZRE182..6F |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-T2004 |
ZRE181..GL,GLI |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-12010 |
ZRE18#..GLXI,PREM |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-02420 |
ZRE181..GL |
1 | ||
| 89220-02400 |
NRE181,ZRE181..GLI,GLXI |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-02A10 |
ZRE181 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-02A10 |
ZRE181 |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-T2005 |
NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM |
1 | ||
| Common parts | ||||
| 90119-C0093 | ||||
| 90119-C0098 | ||||
| 90159-C0002 | ||||
| 90159-C0008 | ||||
| 90159-C0016 | ||||
| 90178-C0032 | ||||
| 90183-06019 | ||||
| 91671-80616 | ||||
| 94120-41000 | ||||
ILLUST NO. 4 OF 9(1406-1610)ZRE182..CVT ; (1406- )ZRE181 ; (1406- )ZRE182..6F
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 28300-21020 |
1ZRFE..ZRE181;9NRFTS,2ZRFE..NRE181,ZRE182..6F |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-T2005 |
1ZRFE..ZRE181;2ZRFE..ZRE182..6F |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08274 |
NRE181,ZRE18# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08296 |
NRE181,ZRE18#,ZWE182 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08304 |
NRE181,ZRE181 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08295 |
NRE181,ZRE18#,ZWE182 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
NRE181,ZRE18#,ZWE182 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09022 |
NRE181,ZRE18#,ZWE182 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
NRE181,ZRE18#,ZWE182 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
NRE181,ZRE18#,ZWE182 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
NRE181,ZRE18#,ZWE182 25A,MINI FUSE |
1 | ||
| 90982-09023 |
NRE181,ZRE18#,ZWE182 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
NRE181,ZRE18#,ZWE182 10A,MINI FUSE,RED |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-02080 |
NRE181,ZRE18# |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-02090 |
ZRE181;ZRE182..6F |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-02100 |
NRE181,ZRE18# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-02070 |
NRE181,ZRE18# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-02360 |
ZRE181 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02A10 |
NRE181,ZRE18# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-02100 |
NRE181,ZRE18# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-02100 |
NRE181,ZRE18# |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-02J30 |
NRE181,ZRE18# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-T4002 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2004 |
ZRE181;ZRE182..6F |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2004 |
ZRE181;ZRE182..6F |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-T2005 |
ZRE18#,ZWE182 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2005 |
ZRE181;ZRE182..6F |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-T2005 |
ZRE181;ZRE182..6F |
3 | ||
| Common parts | ||||
| 90119-C0098 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
