ZRE181L-GEXGKC (2014)
Toyota Corolla (China)
(1406- )ZRE181..CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17343L - HOSE, AIR, NO.3 | ||||
| 17342-0T010 |
1ZRFE..ZRE181..CVT |
1 | ||
| 17343M - CLIP(FOR AIR HOSE NO.3) | ||||
| 96133-41500 |
1ZRFE..ZRE181..CVT NO.1:REFER ILLUST. |
1 | ||
| 96132-41500 |
1ZRFE..ZRE181..CVT NO.2:REFER ILLUST. |
1 | ||
| 17343M - CLIP(FOR AIR HOSE NO.3) | ||||
| 96133-41500 |
1ZRFE..ZRE181..CVT NO.1:REFER ILLUST. |
1 | ||
| 96132-41500 |
1ZRFE..ZRE181..CVT NO.2:REFER ILLUST. |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-02C60 |
ZRE181..CVT |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90080-48071 |
ZRE181..CVT |
2 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90080-48071 |
ZRE181..CVT |
2 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20170 |
ZRE181..CVT |
2 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20170 |
ZRE181..CVT |
2 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-02230 |
ZRE181..CVT |
1 | ||
| 4476B - EJECTOR, BRAKE BOOSTER VACUUM | ||||
| 4476B-48010 |
ZRE181..CVT |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-02040 |
ZRE181..CVT |
2 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-02040 |
ZRE181..CVT |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 96133-41500 |
ZRE181..CVT |
4 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 96133-41500 |
ZRE181..CVT |
4 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 96133-41500 |
ZRE181..CVT |
4 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 96133-41500 |
ZRE181..CVT |
4 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 90445-C0009 |
ZRE181..CVT |
2 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 90445-C0009 |
ZRE181..CVT |
2 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 96133-41500 |
ZRE181..CVT |
4 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 96133-41500 |
ZRE181..CVT |
4 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 96133-41500 |
ZRE181..CVT |
4 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 96133-41500 |
ZRE181..CVT |
4 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-02280 |
ZRE181..CVT |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ZRE181..CVT |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ZRE181..CVT |
2 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-02040 |
ZRE181..CVT NO.2:REFER ILLUST. |
1 | ||
| 44783-02050 |
ZRE181..CVT NO.1:REFER ILLUST. |
1 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-02040 |
ZRE181..CVT NO.2:REFER ILLUST. |
1 | ||
| 44783-02050 |
ZRE181..CVT NO.1:REFER ILLUST. |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-02050 |
NRE181,ZRE18# |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-0P010 |
NRE181,ZRE18# |
1 | ||
| Common parts | ||||
| 90178-C0032 | ||||
| 90182-C0024 | ||||
| 94120-41000 | ||||

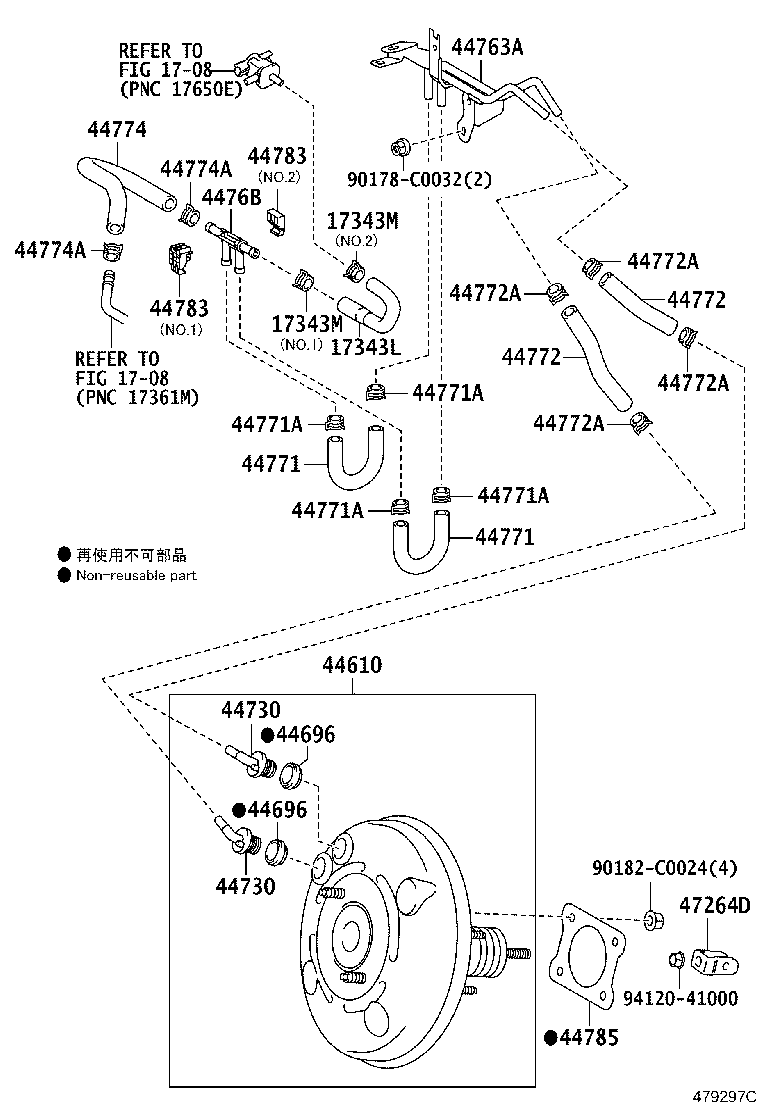

| Linked diagrams | ||||
| 1708 | ||||
