ZRE181L-GEXGKC (2014)
Toyota Corolla (China)

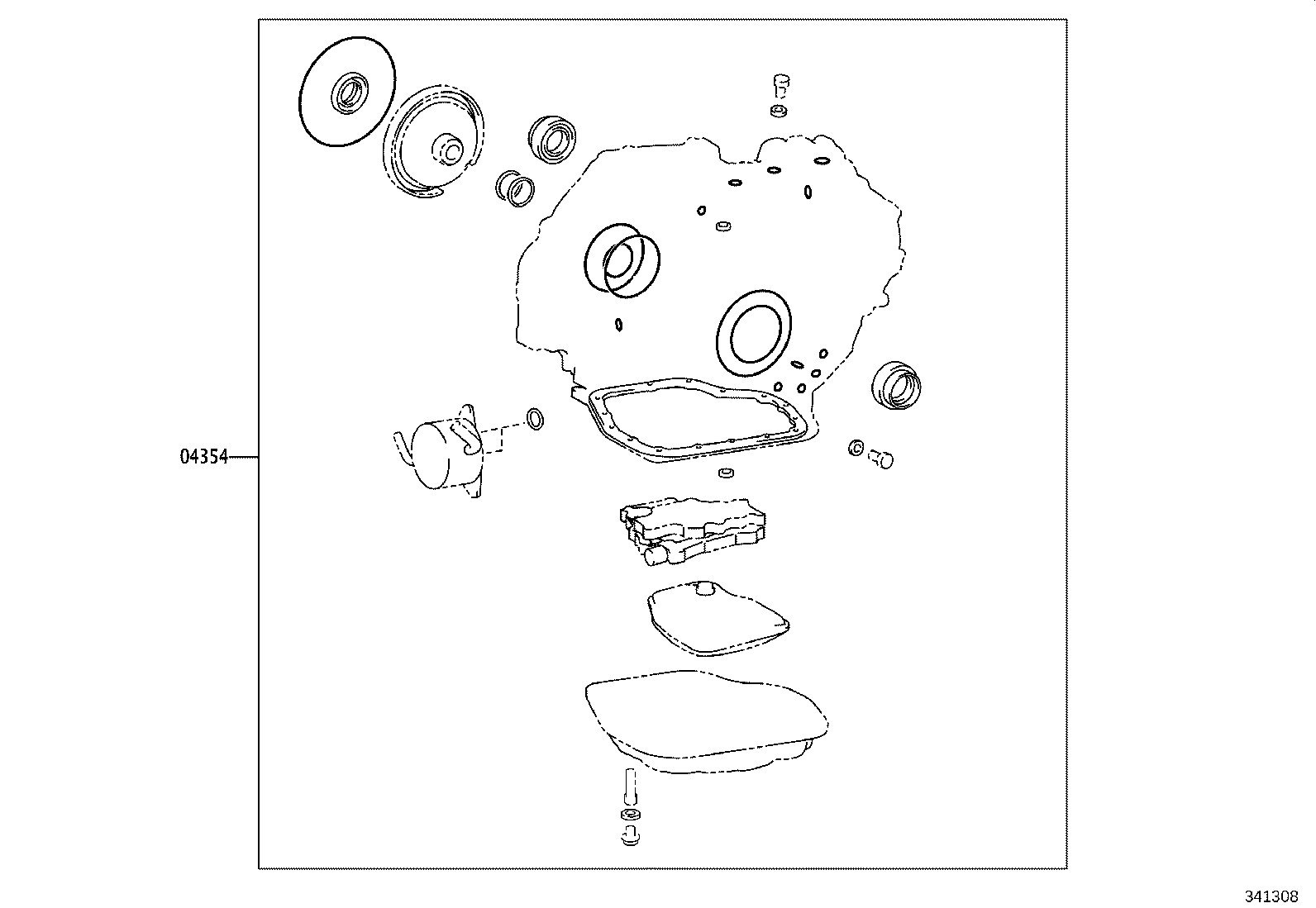

ILLUST NO. 1 OF 3(1406- )NRE181,ZRE18#..CVT
K313
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE | ||||
| 30400-12260 |
ZRE181..CVT K313,TMH:REFER TO ILLUST. |
1 | ||
| 30400J - PLUG, TRANSAXLE HOLE | ||||
| 90341-08001 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 90341-08001 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
8 | ||
| 90341-C0008 |
ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 30400J - PLUG, TRANSAXLE HOLE | ||||
| 90341-08001 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 90341-08001 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
8 | ||
| 90341-C0008 |
ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 30400J - PLUG, TRANSAXLE HOLE | ||||
| 90341-08001 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 90341-08001 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
8 | ||
| 90341-C0008 |
ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 30400J - PLUG, TRANSAXLE HOLE | ||||
| 90341-08001 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 90341-08001 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
8 | ||
| 90341-C0008 |
ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 30400J - PLUG, TRANSAXLE HOLE | ||||
| 90341-08001 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 90341-08001 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
8 | ||
| 90341-C0008 |
ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 30400K - GASKET, TRANSAXLE HOLE PLUG | ||||
| 90301-C0061 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 90301-06196 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
8 | ||
| 30400K - GASKET, TRANSAXLE HOLE PLUG | ||||
| 90301-C0061 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 90301-06196 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
8 | ||
| 30400K - GASKET, TRANSAXLE HOLE PLUG | ||||
| 90301-C0061 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 90301-06196 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
8 | ||
| 30400K - GASKET, TRANSAXLE HOLE PLUG | ||||
| 90301-C0061 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 90301-06196 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
8 | ||
| 30400K - GASKET, TRANSAXLE HOLE PLUG | ||||
| 90301-C0061 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 90301-06196 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
8 | ||
| 30400L - PLUG , FILLER(CVT) | ||||
| 90341-12025 |
NRE181,ZRE18#..CVT (J),TMCAP:REFER ILL. |
1 | ||
| 90341-12025 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 90341-C0007 |
ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 90341-C0007 |
ZRE18#..CVT (L),TMCAP:REFER ILL. |
1 | ||
| 30400M - GASKET , FILLER PLUG(CVT) | ||||
| 90430-12221 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 90430-12221 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18077 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 90341-C0011 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90430-18008 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 90430-18008 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 33493C - COOLER, TRANSMISSION OIL | ||||
| 33493-12080 |
NRE181,ZRE181..CVT (J) |
1 | ||
| 33493-02010 |
NRE181,ZRE181..CVT (L) |
1 | ||
| 33493D - RING, O (FOR TRANSMISSION OIL COOLER) | ||||
| 90301-C0028 |
NRE181,ZRE181..CVT (L) |
2 | ||
| 90301-20012 |
NRE181,ZRE181..CVT (J) |
2 | ||
| 33493D - RING, O (FOR TRANSMISSION OIL COOLER) | ||||
| 90301-C0028 |
NRE181,ZRE181..CVT (L) |
2 | ||
| 90301-20012 |
NRE181,ZRE181..CVT (J) |
2 | ||
| 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) | ||||
| 35106-12200 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35106-02020 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35106P - BOLT(FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
16 | ||
| 90119-C0435 |
ZRE18#..CVT TMCAP:REFER ILLUST. |
16 | ||
| 90119-06173 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
16 | ||
| 35125E - TUBE, OVERFLOW(CVT) | ||||
| 35125-02160 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35125-12440 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35125F - PLUG, OVERFLOW(CVT) | ||||
| 90341-12034 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 90341-12034 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35125G - GASKET, OVERFLOW PLUG(CVT) | ||||
| 90430-12008 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 90430-12008 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35141D - HOSE(FOR BREATHER PLUG) | ||||
| 35121-12090 |
ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35121-02010 |
ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35141E - RING, O(FOR BREATHER PLUG) | ||||
| 90301-06005 |
ZRE18#..CVT TMH:REFER TO ILLUST. |
1 | ||
| 90301-06021 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 90301-C0060 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03216 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 90930-C3022 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35141J - PLUG, BREATHER, NO.2(CVT) | ||||
| 90930-03191 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 90930-C3019 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35150B - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35150-48010 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35150C - RING, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35168C - GASKET, TRANSAXLE OIL PAN(CVT) | ||||
| 35168-12091 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35168-02020 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-02010 |
ZRE18#..CVT TMCAP:REFER ILLUST. |
3 | ||
| 35394-30011 |
ZRE181..CVT TMH:REFER TO ILLUST. |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-02010 |
ZRE18#..CVT TMCAP:REFER ILLUST. |
3 | ||
| 35394-30011 |
ZRE181..CVT TMH:REFER TO ILLUST. |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-02010 |
ZRE18#..CVT TMCAP:REFER ILLUST. |
3 | ||
| 35394-30011 |
ZRE181..CVT TMH:REFER TO ILLUST. |
3 | ||
| 35572C - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-12160 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35572-12160 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| Common parts | ||||
| 90105-C0088 | ||||
| 90105-C0134 | ||||
| 90170-C0013 | ||||
| 90464-C0004 | ||||
| 90469-C0012 | ||||
| 91551-80820 | ||||
| 91551-80830 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 3402 | ||||
| 8202 | ||||
| 8401 | ||||
| 8410 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 3(1406- )NRE181,ZRE18#..CVT
K313
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400J - PLUG, TRANSAXLE HOLE | ||||
| 90341-08001 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 90341-08001 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
8 | ||
| 90341-C0008 |
ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 30400J - PLUG, TRANSAXLE HOLE | ||||
| 90341-08001 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 90341-08001 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
8 | ||
| 90341-C0008 |
ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 30400K - GASKET, TRANSAXLE HOLE PLUG | ||||
| 90301-C0061 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 90301-06196 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
8 | ||
| 30400K - GASKET, TRANSAXLE HOLE PLUG | ||||
| 90301-C0061 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
8 | ||
| 90301-06196 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
8 | ||
| 34320 - BEARING, CYLINDRICAL ROLLER(FOR SECONDARY SHEAVE SHAFT) | ||||
| 90365-24001 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 90365-24001 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35068E - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35068-12020 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35075D - GEAR SUB-ASSY, FRONT PLANETARY RING | ||||
| 35075-12031 |
ZRE18#..CVT *435 |
1 | ||
| 35075-12031 |
ZRE181..CVT |
1 | ||
| 35075-02010 |
ZRE181..CVT *436 |
1 | ||
| 35145D - GASKET, TRANSAXLE CASE | ||||
| 35145-33010 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35145-33010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35165B - PLATE, TRANSMISSION CASE, NO.1 | ||||
| 35165-02020 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35165-12060 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35174B - PLATE, OIL RESERVOIR LOCK | ||||
| 35174-12010 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35174-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35195C - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-02020 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35195-12040 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35195D - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35195-12050 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35195-02030 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35330D - STRAINER ASSY, OIL | ||||
| 35330-12050 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35330-02020 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35330E - RING, O (FOR OIL STRAINER) | ||||
| 90301-22014 |
ZRE18#..CVT TMH:REFER TO ILLUST. |
1 | ||
| 90301-C0066 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 90301-22019 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35410J - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-02020 |
ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35410-12871 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35410-02040 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35481C - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-12030 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35481-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35482C - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35482-73010 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35506L - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-C0033 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 90311-12002 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35603E - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35603-12040 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35610A - CLUTCH ASSY, FORWARD MULTIPLE DISC | ||||
| 35610-12242 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35610-02020 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35610F - RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90520-C0014 |
NRE181,ZRE18#..CVT NO.2,TMCAP:SEE ILL. |
1 | ||
| 90520-99087 |
NRE181,ZRE181..CVT NO.2,TMH:SEE ILLUST |
1 | ||
| 90520-44041 |
NRE181,ZRE181..CVT NO.1,TMH:SEE ILLUST |
1 | ||
| 90520-C0022 |
NRE181,ZRE18#..CVT NO.1,TMCAP:SEE ILL. |
1 | ||
| 35610F - RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90520-C0014 |
NRE181,ZRE18#..CVT NO.2,TMCAP:SEE ILL. |
1 | ||
| 90520-99087 |
NRE181,ZRE181..CVT NO.2,TMH:SEE ILLUST |
1 | ||
| 90520-44041 |
NRE181,ZRE181..CVT NO.1,TMH:SEE ILLUST |
1 | ||
| 90520-C0022 |
NRE181,ZRE18#..CVT NO.1,TMCAP:SEE ILL. |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90301-C0017 |
NRE181,ZRE18#..CVT NO.1,TMCAP:SEE ILL. |
1 | ||
| 90301-C0055 |
NRE181,ZRE18#..CVT NO.2,TMCAP:SEE ILL. |
1 | ||
| 90301-95003 |
NRE181,ZRE181..CVT NO.2,TMH:SEE ILLUST |
1 | ||
| 90301-99155 |
NRE181,ZRE181..CVT NO.3,TMH:SEE ILLUST |
1 | ||
| 90301-50001 |
NRE181,ZRE181..CVT NO.1,TMH:SEE ILLUST |
1 | ||
| 90301-C0068 |
NRE181,ZRE18#..CVT NO.3,TMCAP:SEE ILL. |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90301-C0017 |
NRE181,ZRE18#..CVT NO.1,TMCAP:SEE ILL. |
1 | ||
| 90301-C0055 |
NRE181,ZRE18#..CVT NO.2,TMCAP:SEE ILL. |
1 | ||
| 90301-95003 |
NRE181,ZRE181..CVT NO.2,TMH:SEE ILLUST |
1 | ||
| 90301-99155 |
NRE181,ZRE181..CVT NO.3,TMH:SEE ILLUST |
1 | ||
| 90301-50001 |
NRE181,ZRE181..CVT NO.1,TMH:SEE ILLUST |
1 | ||
| 90301-C0068 |
NRE181,ZRE18#..CVT NO.3,TMCAP:SEE ILL. |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90301-C0017 |
NRE181,ZRE18#..CVT NO.1,TMCAP:SEE ILL. |
1 | ||
| 90301-C0055 |
NRE181,ZRE18#..CVT NO.2,TMCAP:SEE ILL. |
1 | ||
| 90301-95003 |
NRE181,ZRE181..CVT NO.2,TMH:SEE ILLUST |
1 | ||
| 90301-99155 |
NRE181,ZRE181..CVT NO.3,TMH:SEE ILLUST |
1 | ||
| 90301-50001 |
NRE181,ZRE181..CVT NO.1,TMH:SEE ILLUST |
1 | ||
| 90301-C0068 |
NRE181,ZRE18#..CVT NO.3,TMCAP:SEE ILL. |
1 | ||
| 35612D - PISTON, FORWARD CLUTCH | ||||
| 35612-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35612-12072 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35623L - PISTON, REVERSE BRAKE | ||||
| 35623-02020 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35623-12080 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35623M - RING, O (FOR REVERSE BRAKE PISTON) | ||||
| 90301-98002 |
NRE181,ZRE181..CVT NO.1,TMH:SEE ILLUST |
1 | ||
| 90301-C0057 |
NRE181,ZRE18#..CVT NO.1,TMCAP:SEE ILL. |
1 | ||
| 90301-99087 |
NRE181,ZRE181..CVT NO.2,TMH:SEE ILLUST |
1 | ||
| 90301-C0058 |
NRE181,ZRE18#..CVT NO.2,TMCAP:SEE ILL. |
1 | ||
| 35623M - RING, O (FOR REVERSE BRAKE PISTON) | ||||
| 90301-98002 |
NRE181,ZRE181..CVT NO.1,TMH:SEE ILLUST |
1 | ||
| 90301-C0057 |
NRE181,ZRE18#..CVT NO.1,TMCAP:SEE ILL. |
1 | ||
| 90301-99087 |
NRE181,ZRE181..CVT NO.2,TMH:SEE ILLUST |
1 | ||
| 90301-C0058 |
NRE181,ZRE18#..CVT NO.2,TMCAP:SEE ILL. |
1 | ||
| 35623N - RING, SNAP (FOR REVERSE BRAKE PISTON) | ||||
| 90520-C0013 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 90520-99090 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12092 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
3 | ||
| 35633-02020 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
3 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12092 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
3 | ||
| 35633-02020 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
3 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12092 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
3 | ||
| 35633-02020 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
3 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
3 | ||
| 35634-12050 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
3 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
3 | ||
| 35634-12050 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
3 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
3 | ||
| 35634-12050 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
3 | ||
| 35635G - FLANGE, FORWARD CLUTCH | ||||
| 35635-12150 |
NRE181,ZRE181..CVT T=3.2,MARK 3,TMH:REFER TO ILLUST. |
1 | ||
| 35635-12170 |
NRE181,ZRE181..CVT T=3.6,MARK 5,TMH:REFER TO ILLUST. |
1 | ||
| 35635-02020 |
NRE181,ZRE18#..CVT T=3.4,MARK 4,TMCAP:REFER ILLUST. |
1 | ||
| 35635-12160 |
NRE181,ZRE181..CVT T=3.4,MARK 4,TMH:REFER TO ILLUST. |
1 | ||
| 35635-02010 |
NRE181,ZRE18#..CVT T=3.2,MARK 3,TMCAP:REFER ILLUST. |
1 | ||
| 35635-02030 |
NRE181,ZRE18#..CVT T=3.6,MARK 5,TMCAP:REFER ILLUST. |
1 | ||
| 35668C - BALANCER, CLUTCH, NO.1 | ||||
| 35668-12011 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35668-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35671D - PLATE, BRAKE CUSHION | ||||
| 35671-12040 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35671-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35672D - PLATE, CLUTCH CUSHION | ||||
| 35672-12040 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35672-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35676L - FLANGE, BRAKE | ||||
| 35676-12110 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35676-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35676M - RING, SNAP (FOR BRAKE FLANGE) | ||||
| 90520-C0012 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 90520-99086 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35681B - DISC, BRAKE, NO.1 | ||||
| 35681-52051 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
3 | ||
| 35681B - DISC, BRAKE, NO.1 | ||||
| 35681-52051 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
3 | ||
| 35681B - DISC, BRAKE, NO.1 | ||||
| 35681-52051 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
3 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35691-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
3 | ||
| 35691-12040 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
3 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35691-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
3 | ||
| 35691-12040 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
3 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35691-02010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
3 | ||
| 35691-12040 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
3 | ||
| 35701L - RACE, THRUST BEARING (FOR INPUT SHAFT) | ||||
| 35789-12090 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35789-02020 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35701M - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT) | ||||
| 90374-20005 |
NRE181,ZRE181..CVT OD=36.5,TMH:REFER TO ILLUST. |
1 | ||
| 90374-C0018 |
NRE181,ZRE18#..CVT OD=36.5,TMCAP:REFER ILLUST. |
1 | ||
| 35720M - GEAR ASSY, PLANETARY | ||||
| 35720-02010 |
ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35720-12061 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35720-02011 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35720N - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY GEAR) | ||||
| 90374-34014 |
NRE181,ZRE181..CVT NO.1,TMH:SEE ILLUST |
1 | ||
| 90374-C0020 |
NRE181,ZRE18#..CVT NO.1,TMCAP:SEE ILL. |
1 | ||
| 90374-18008 |
NRE181,ZRE181..CVT NO.2,TMH:SEE ILLUST |
1 | ||
| 90374-C0019 |
NRE181,ZRE18#..CVT NO.2,TMCAP:SEE ILL. |
1 | ||
| 35720N - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY GEAR) | ||||
| 90374-34014 |
NRE181,ZRE181..CVT NO.1,TMH:SEE ILLUST |
1 | ||
| 90374-C0020 |
NRE181,ZRE18#..CVT NO.1,TMCAP:SEE ILL. |
1 | ||
| 90374-18008 |
NRE181,ZRE181..CVT NO.2,TMH:SEE ILLUST |
1 | ||
| 90374-C0019 |
NRE181,ZRE18#..CVT NO.2,TMCAP:SEE ILL. |
1 | ||
| 35726A - WASHER, PLANETARY RING GEAR THRUST | ||||
| 35726-12010 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35726-12010 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 35882E - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-12040 |
NRE181,ZRE181..CVT NO.2,TMH:SEE ILLUST |
1 | ||
| 35882-02020 |
ZRE18#..CVT NO.1,TMCAP:SEE ILL. |
1 | ||
| 35882-12030 |
NRE181,ZRE181..CVT NO.1,TMH:SEE ILLUST |
1 | ||
| 35882-02050 |
NRE181,ZRE18#..CVT NO.2,TMCAP:SEE ILL. |
1 | ||
| 35882-02040 |
NRE181,ZRE18#..CVT NO.1,TMCAP:SEE ILL. |
1 | ||
| 35882-02030 |
ZRE18#..CVT NO.2,TMCAP:SEE ILL. |
1 | ||
| 35882E - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-12040 |
NRE181,ZRE181..CVT NO.2,TMH:SEE ILLUST |
1 | ||
| 35882-02020 |
ZRE18#..CVT NO.1,TMCAP:SEE ILL. |
1 | ||
| 35882-12030 |
NRE181,ZRE181..CVT NO.1,TMH:SEE ILLUST |
1 | ||
| 35882-02050 |
NRE181,ZRE18#..CVT NO.2,TMCAP:SEE ILL. |
1 | ||
| 35882-02040 |
NRE181,ZRE18#..CVT NO.1,TMCAP:SEE ILL. |
1 | ||
| 35882-02030 |
ZRE18#..CVT NO.2,TMCAP:SEE ILL. |
1 | ||
| 82125M - WIRE, TRANSMISSION | ||||
| 82125-02440 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 82125-12641 |
NRE181,ZRE18#..CVT TMH:REFER TO ILLUST. |
1 | ||
| 82125Q - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
NRE181,ZRE18#..CVT |
1 | ||
| Common parts | ||||
| 90105-C0043 | ||||
| 90105-C0081 | ||||
| 90105-C0130 | ||||
| 90119-C0051 | ||||
| 90119-C0097 | ||||
| 90119-C0224 | ||||
| 90250-10017 | ||||
| 90301-06004 | ||||
| 90301-06024 | ||||
| 91551-80612 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91611-B0614 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 3402 | ||||
| 4301 | ||||
| 8410 | ||||
ILLUST NO. 3 OF 3(1406- )NRE181,ZRE18#..CVT
K313
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90119-C0139 |
NRE181,ZRE18#..CVT |
7 | ||
| 30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP) | ||||
| 90311-45027 |
NRE181,ZRE181..CVT TMH:REFER TO ILLUST. |
1 | ||
| 90311-C0032 |
NRE181,ZRE18#..CVT TMCAP:REFER ILLUST. |
1 | ||
| 35105C - BOLT(FOR TRANSAXLE HOUSING & CASE SET) | ||||
| 90105-08071 |
NRE181,ZRE181..CVT NO.1,TMH:SEE ILLUST |
4 | ||
| 90105-C0289 |
ZRE18#..CVT NO.2,TMCAP:SEE ILL. |
18 | ||
| 91551-10830 |
NRE181,ZRE181..CVT NO.2,TMH:SEE ILLUST |
18 | ||
| 90105-C0285 |
NRE181,ZRE18#..CVT NO.1,TMCAP:SEE ILL. |
4 | ||
| 35105C - BOLT(FOR TRANSAXLE HOUSING & CASE SET) | ||||
| 90105-08071 |
NRE181,ZRE181..CVT NO.1,TMH:SEE ILLUST |
4 | ||
| 90105-C0289 |
ZRE18#..CVT NO.2,TMCAP:SEE ILL. |
18 | ||
| 91551-10830 |
NRE181,ZRE181..CVT NO.2,TMH:SEE ILLUST |
18 | ||
| 90105-C0285 |
NRE181,ZRE18#..CVT NO.1,TMCAP:SEE ILL. |
4 | ||
| Common parts | ||||
| 90105-C0082 | ||||
| 90105-C0084 | ||||
| 90105-C0290 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 91551-80645 | ||||
| Linked diagrams | ||||
| 3402 | ||||
| 4302 | ||||
ILLUST NO. 4 OF 4(1407- )NRE181,ZRE18#..CVT
K313
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
