ZRE181L-GEXGKC (2014)

Toyota Corolla (China)

Production Jun 2014 - Sep 2016
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1406-1610)2ZRFE..CVT ; (1406- )1ZRFE ; (1406- )2ZRFE..6F

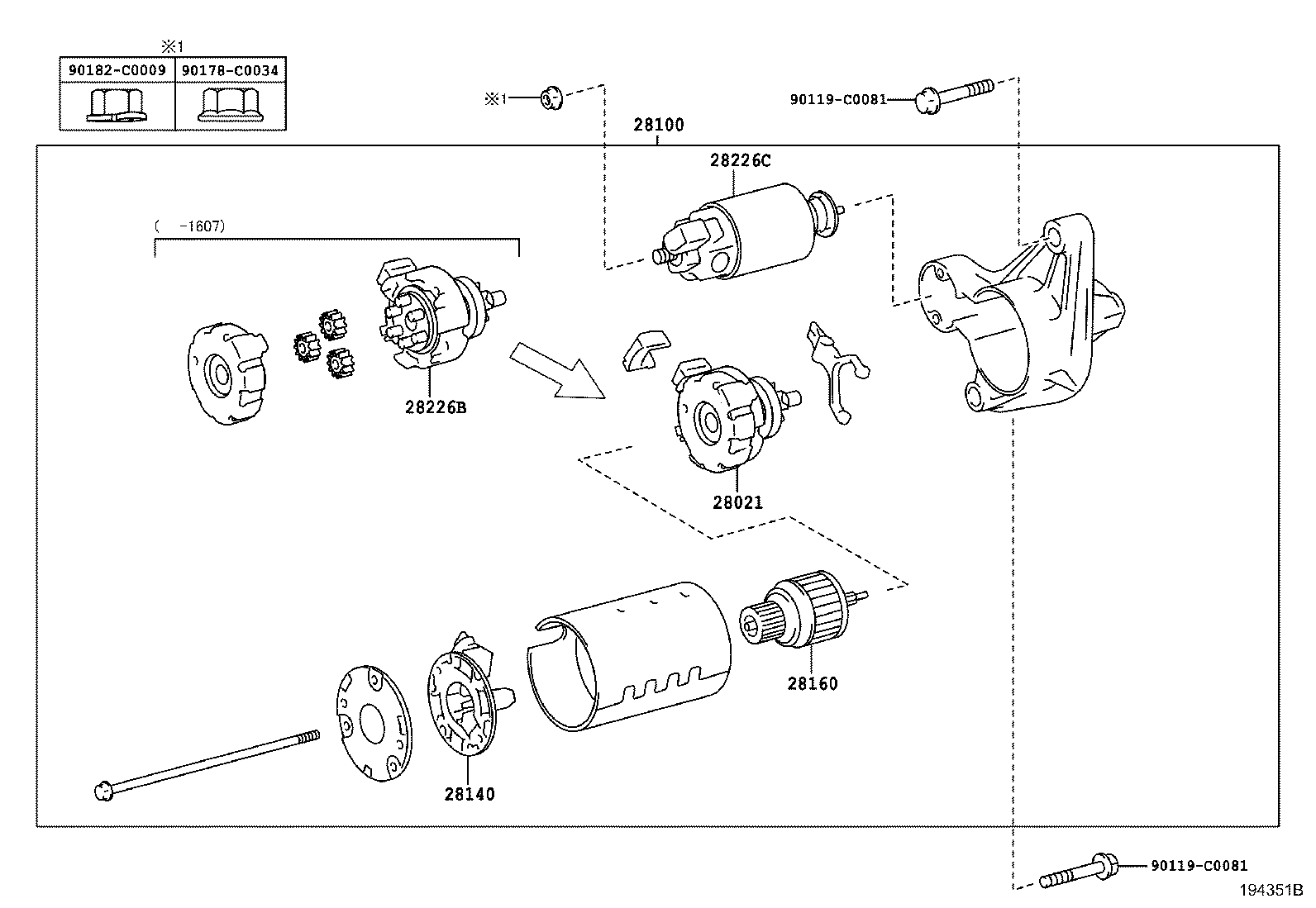

Click highlighted areas on diagram

12V 1.2KW

diagram 28021 28100 28140 28160 28226B 28226C 90119C0081 90119C0081 90178C0034 90182C0009
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-0T330

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

 1
28100 - STARTER ASSY
28100-0T330

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

12V 1.2KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-21070

1ZRFE,2ZRFE..ZRE18#

 1
28140-0T330

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

 1
28140-0T340

1ZRFE,2ZRFE..ZRE18#

 1
28160 - ARMATURE ASSY, STARTER
28160-21080

1ZRFE,2ZRFE..ZRE18#

 1
28160-0T330

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-0T300

1ZRFE,2ZRFE..ZRE18#

 1
28226-47170

1ZRFE,2ZRFE..ZRE18#

 1
28226C - STARTER KIT, REPAIR SERVICE, NO.2
28226-0T340

1ZRFE,2ZRFE..ZRE18#

 1
28226-37130

1ZRFE,2ZRFE..ZRE18#

 1
28226-0T330

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

 1
Common parts
90119-C0081
90178-C0034
90182-C0009
