ZRE181L-GEMEKC (2014)

Toyota Corolla (China)

Production Jun 2014 - Sep 2016
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1406-1704) ; (1704- )ZRE181

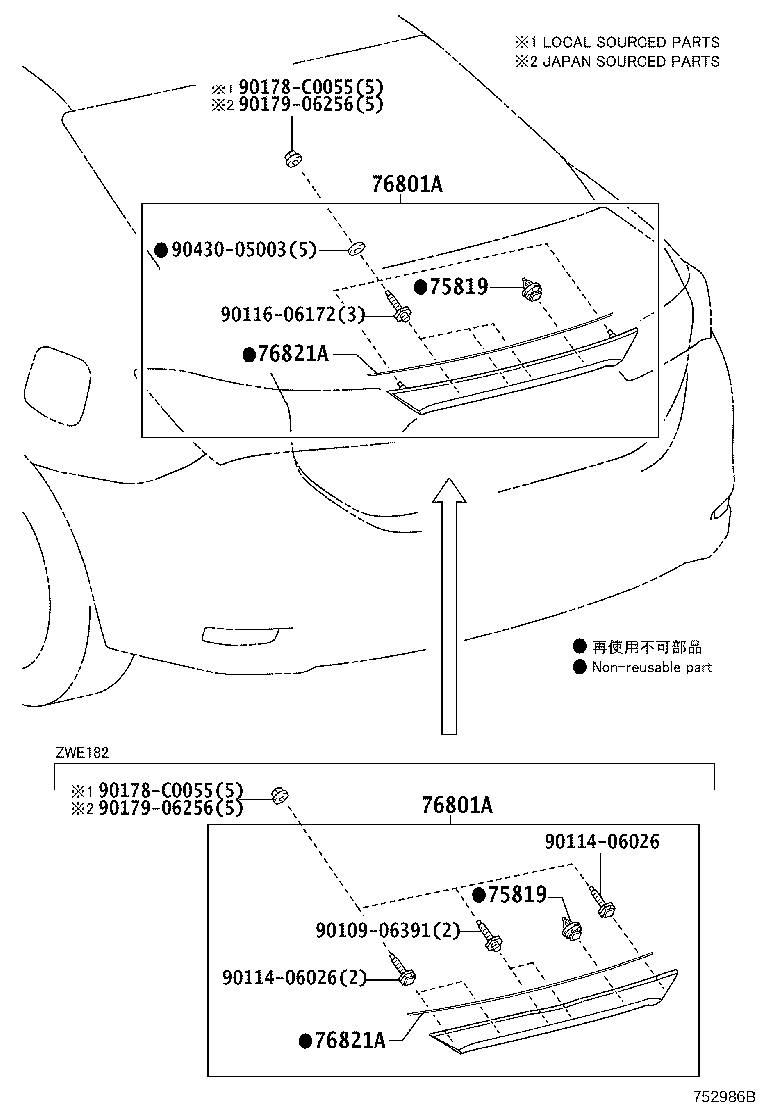

Click highlighted areas on diagram

diagram 75819 75819 76801A 76801A 76821A 76821A 9010906391 9011406026 9011406026 9011606172 90178C0055 90178C0055 9017906256 9017906256 9043005003
Part # Description Qty Price
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-33010

NRE181,ZRE18#,ZWE182

 1
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-33010

NRE181,ZRE18#,ZWE182

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-02E70

NRE181,ZRE181..GL,GLI

PLATED

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-02E70

NRE181,ZRE181..GL,GLI

PLATED

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76825-02220

NRE181,ZRE18#

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76825-02220

NRE181,ZRE18#

 1
Common parts
90109-06391
90114-06026
90116-06172
90178-C0055
90179-06256
90430-05003
