ZRE181L-GEMEKC (2014)

Toyota Corolla (China)

Production Jun 2014 - Sep 2016
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1406- )

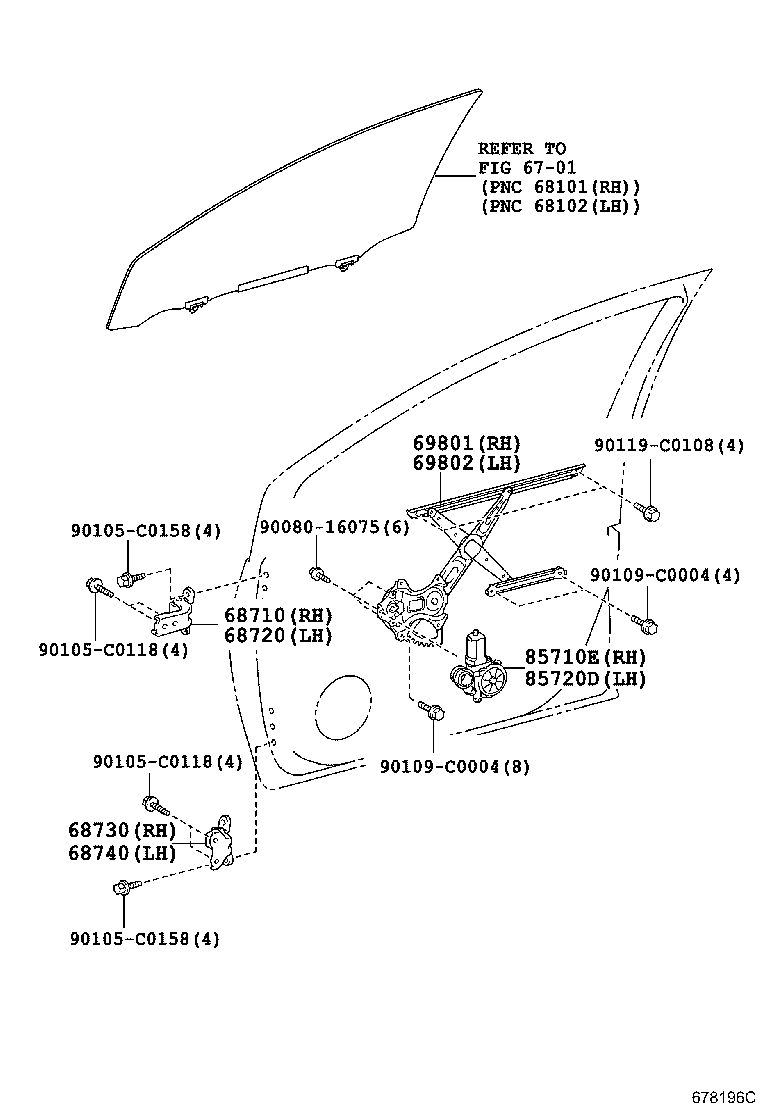

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69801 69802 85710E 85720D 9008016075 90105C0118 90105C0118 90105C0158 90105C0158 90109C0004 90109C0004 90119C0108
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-02031

NRE181,ZRE18#,ZWE182

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-02031

NRE181,ZRE18#,ZWE182

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-02061

NRE181,ZRE18#,ZWE182

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-02061

NRE181,ZRE18#,ZWE182

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-0D170

NRE181,ZRE18#,ZWE182

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-0D180

NRE181,ZRE18#,ZWE182

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-06190

NRE181,ZRE18#,ZWE182

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-06210

ZWE182..GLI;NRE181,ZRE181..GL

 1
85720-02520

ZWE182..GLXI,PREM;NRE181,ZRE18#..GLI,GLXI,PREM

 1
Common parts
90080-16075
90105-C0118
90105-C0158
90109-C0004
90119-C0108
Linked diagrams
6701
