ZRE181L-GEMEKC (2014)

Toyota Corolla (China)

Production Jun 2014 - Sep 2016
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1406-1703)NRE181,ZRE18# ; (1703- )ZRE181

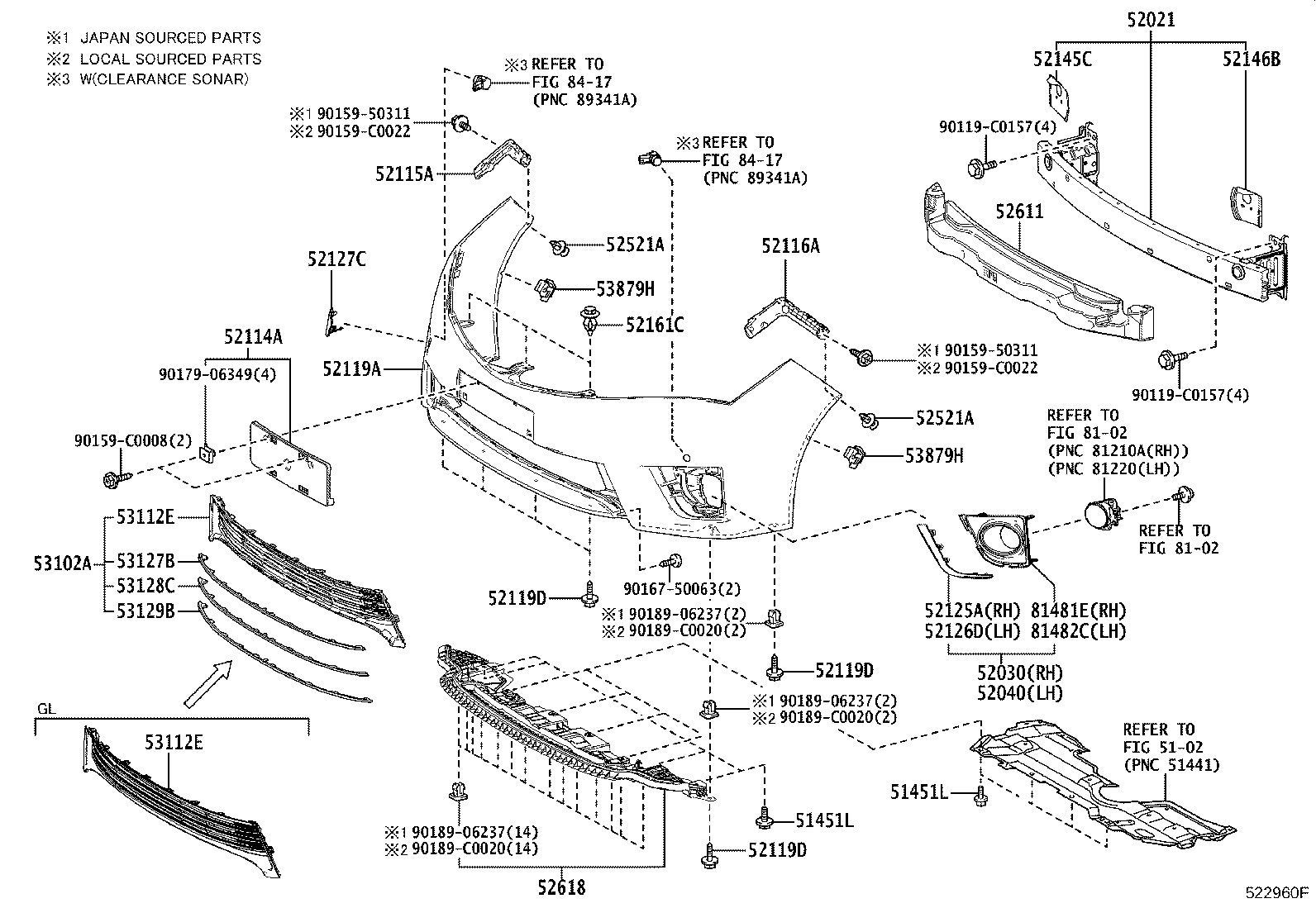

Click highlighted areas on diagram

diagram 5102 51451L 51451L 52021 52030 52040 52114A 52115A 52116A 52119A 52119D 52119D 52119D 52125A 52126D 52127C 52145C 52146B 52161C 52521A 52521A 52611 52618 53102A 53112E 53112E 53127B 53128C 53129B 53879H 53879H 8102 8102 81481E 81482C 8417 8417 90119C0157 90119C0157 9015950311 9015950311 90159C0008 90159C0022 90159C0022 9016750063 9017906349 9018906237 9018906237 9018906237 90189C0020 90189C0020 90189C0020
Part # Description Qty Price
51451L - BOLT, NO.1
90119-C0186

NRE181,ZRE18#

 8
51451L - BOLT, NO.1
90119-C0186

NRE181,ZRE18#

 8
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-02280

NRE181,ZRE18#,ZWE182

 1
52030 - COVER ASSY, FRONT BUMPER HOLE, RH
52030-02190

NRE181,ZRE18#

 1
52040 - COVER ASSY, FRONT BUMPER HOLE, LH
52040-02190

NRE181,ZRE18#

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-02140

NRE181,ZRE18#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02290

NRE181,ZRE18#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-02290

NRE181,ZRE18#

 1
52119A - COVER, FRONT BUMPER
52119-0Z950

NRE181,ZRE181..GLI

PAINT REQ.

 1
52119-0Z949

NRE181,ZRE18#..GL,GLXI,PREM

PAINT REQ.

 1
52119D - SCREW, NO.1
90159-60477

NRE181,ZRE18#,ZWE182

 8
52119D - SCREW, NO.1
90159-60477

NRE181,ZRE18#,ZWE182

 8
52119D - SCREW, NO.1
90159-60477

NRE181,ZRE18#,ZWE182

 8
52125A - BRACKET, FOG LAMP MOUNTING, RH
52125-02030

NRE181,ZRE18#

 1
52126D - BRACKET, FOG LAMP MOUNTING, LH
52126-02020

NRE181,ZRE18#

 1
52127C - COVER, FRONT BUMPER HOLE
52127-02922

ZRE18#

 1
52127-02928

NRE181,ZRE18#

 1
52145C - BRACKET, FRONT BUMPER SIDE MOUNTING, RH
52145-02180

NRE181,ZRE18#,ZWE182

 1
52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH
52146-02160

NRE181,ZRE18#,ZWE182

 1
52161C - PIECE, FRONT BUMPER
52161-16010

NRE181,ZRE18#,ZWE182

(J)

 3
52161-02040

NRE181,ZRE18#,ZWE182

(L)

 3
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05170

NRE181,ZRE18#,ZWE182

 2
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05170

NRE181,ZRE18#,ZWE182

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-02220

NRE181,ZRE18#

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-02110

NRE181,ZRE18#,ZWE182

 1
53102A - GRILLE SUB-ASSY, RADIATOR, LWR
53102-02220

NRE181,ZRE18#..GLI,GLXI,PREM

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-02600

NRE181,ZRE18#..GLI,GLXI,PREM

NO PAINT REQ.

 1
53112-02590

NRE181,ZRE181..GL

NO PAINT REQ.

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-02600

NRE181,ZRE18#..GLI,GLXI,PREM

NO PAINT REQ.

 1
53112-02590

NRE181,ZRE181..GL

NO PAINT REQ.

 1
53127B - MOULDING, RADIATOR GRILLE, NO.7
53127-02100

NRE181,ZRE18#..GLI,GLXI,PREM

 1
53128C - MOULDING, RADIATOR GRILLE, NO.8
53128-02090

NRE181,ZRE18#..GLI,GLXI,PREM

 1
53129B - MOULDING, RADIATOR GRILLE, NO.9
53129-02090

NRE181,ZRE18#..GLI,GLXI,PREM

 1
53879H - RETAINER, FRONT FENDER LINER
53879-58010

NRE181,ZRE18#,ZWE182

(J)

 2
53879-02060

NRE181,ZRE18#,ZWE182

(L)

 2
53879H - RETAINER, FRONT FENDER LINER
53879-58010

NRE181,ZRE18#,ZWE182

(J)

 2
53879-02060

NRE181,ZRE18#,ZWE182

(L)

 2
81481E - COVER, FOG LAMP, RH
81481-02490

NRE181,ZRE18#

 1
81482C - COVER, FOG LAMP, LH
81482-02480

NRE181,ZRE18#

 1
Common parts
90119-C0157
90159-50311
90159-C0008
90159-C0022
90167-50063
90179-06349
90189-06237
90189-C0020
