ZRE181L-GEMEKC (2014)

Toyota Corolla (China)

Production Jun 2014 - Sep 2016
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1406- )5F ; (1406- )ZRE182

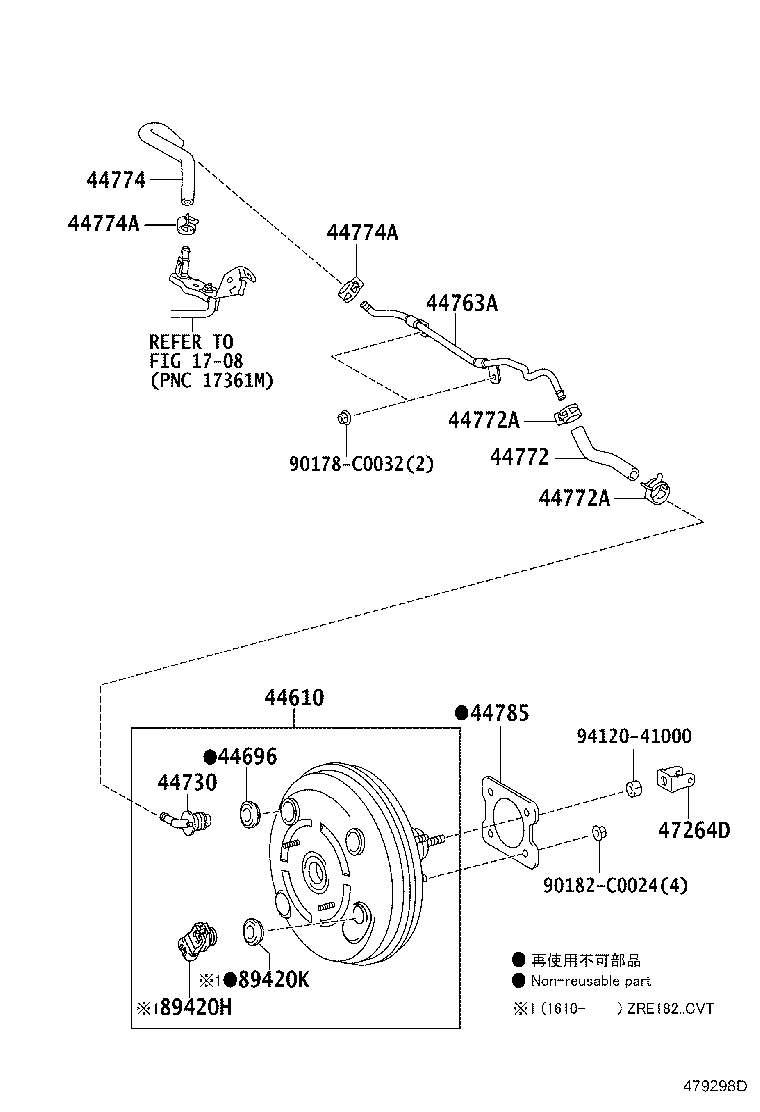

Click highlighted areas on diagram

diagram 1708 44610 44696 44730 44763A 44772 44772A 44772A 44774 44774A 44774A 44785 47264D 89420H 89420K 90178C0032 90182C0024 9412041000
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-02C10

ZRE181..5F

 1
44696 - GROMMET, CHECK VALVE
90080-48071

ZRE181..5F;NRE181,ZRE182

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170

ZRE182;ZRE181..5F

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-02070

ZRE182;ZRE181..5F

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-02060

ZRE181..5F;NRE181,ZRE182

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

ZRE181..5F;NRE181,ZRE182

 2
96133-41500

ZRE182;ZRE181..5F

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

ZRE181..5F;NRE181,ZRE182

 2
96133-41500

ZRE182;ZRE181..5F

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-02240

ZRE182;ZRE181..5F

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

ZRE182;ZRE181..5F

 2
90467-16014

ZRE181..5F;NRE181,ZRE182

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

ZRE182;ZRE181..5F

 2
90467-16014

ZRE181..5F;NRE181,ZRE182

 2
44785 - GASKET, BRAKE BOOSTER
44785-02050

NRE181,ZRE18#

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0P010

NRE181,ZRE18#

 1
Common parts
90178-C0032
90182-C0024
94120-41000
Linked diagrams
1708
