ZRE181L-GEMEKC (2014)
Toyota Corolla (China)
Production
Jun 2014
-
Sep 2016
Engine
1ZRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1406- )5F

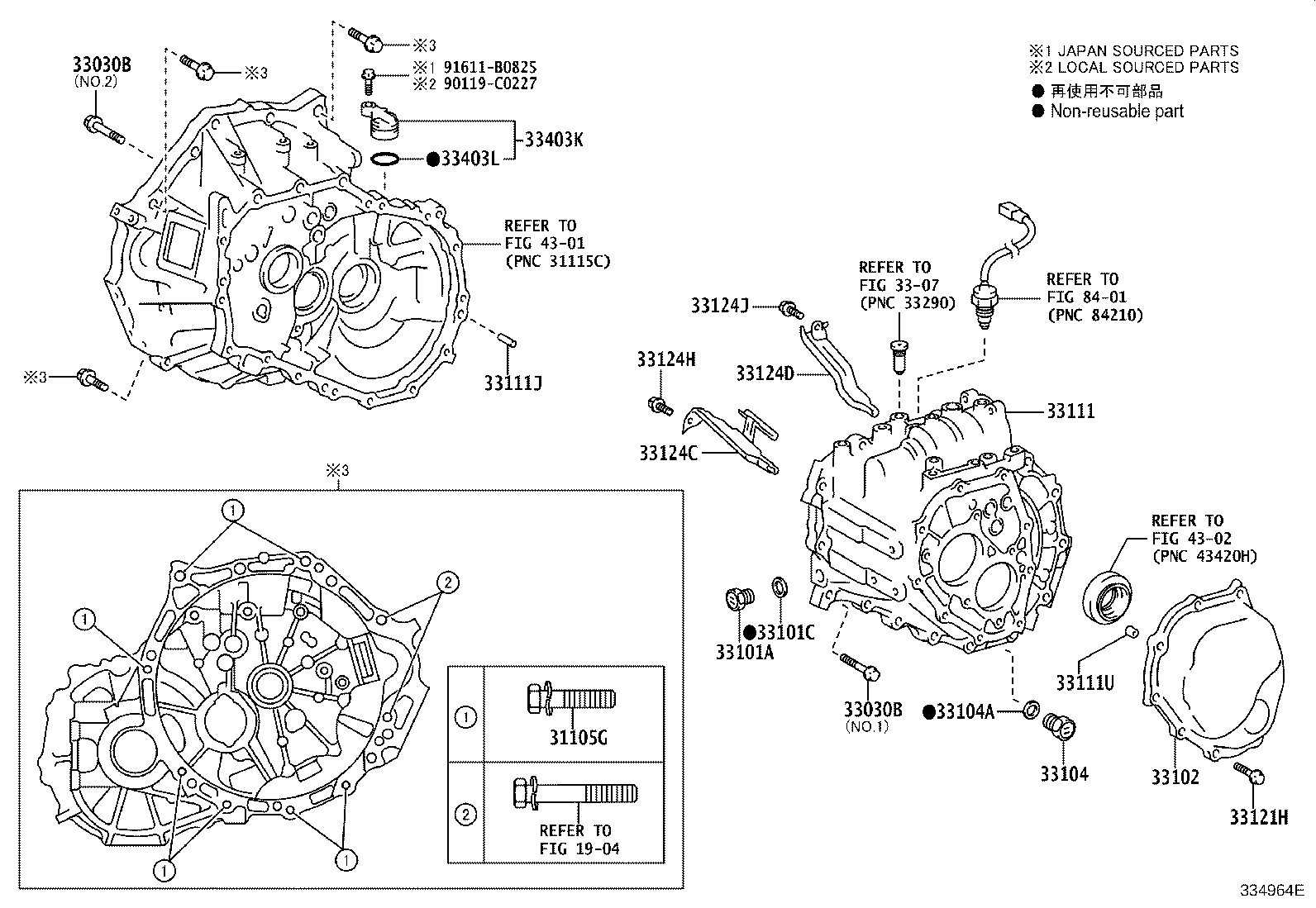

Click highlighted areas on diagram
C51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-C0139 |
ZRE181..5F *10-1.25PX45-30 |
7 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-C0192 |
ZRE181..5F *8-1.25PX51-28,NO.1:REFER ILLUST. |
13 | ||
| 90105-C0185 |
ZRE181..5F *8-1.25PX45-27.5,NO.2:REFER ILLUST. |
3 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-C0192 |
ZRE181..5F *8-1.25PX51-28,NO.1:REFER ILLUST. |
13 | ||
| 90105-C0185 |
ZRE181..5F *8-1.25PX45-27.5,NO.2:REFER ILLUST. |
3 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-C0003 |
ZRE181..5F |
1 | ||
| 90341-C0016 |
ZRE181..5F |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
ZRE181..5F |
1 | ||
| 90430-C0011 |
ZRE181..5F |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-02020 |
ZRE181..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-C0003 |
ZRE181..5F |
1 | ||
| 90341-C0016 |
ZRE181..5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
ZRE181..5F |
1 | ||
| 90430-C0011 |
ZRE181..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-02071 |
ZRE181..5F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-C0005 |
ZRE181..5F L=23,OD=8 |
4 | ||
| 90250-08054 |
ZRE181..5F L=23,OD=8 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
ZRE181..5F L=11,OD=11 |
2 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90119-C0277 |
ZRE181..5F |
9 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-0D020 |
ZRE181..5F |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-0D030 |
ZRE181..5F |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 90119-C0275 |
ZRE181..5F |
1 | ||
| 33124J - BOLT, W/WASHER | ||||
| 90119-C0275 |
ZRE181..5F |
1 | ||
| 33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-02020 |
NRE181,ZRE18#..MTM |
1 | ||
| 33403L - RING, O | ||||
| 96711-24030 |
NRE181,ZRE18#..MTM |
1 | ||
| Common parts | ||||
| 90119-C0227 | ||||
| 91611-B0825 | ||||
| Linked diagrams | ||||
| 1904 | ||||
| 3307 | ||||
| 4301 | ||||
| 4302 | ||||
| 8401 | ||||
