ZRE181L-GEMEKC (2014)

Toyota Corolla (China)

Production Jun 2014 - Sep 2016
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1406- )1ZRFE

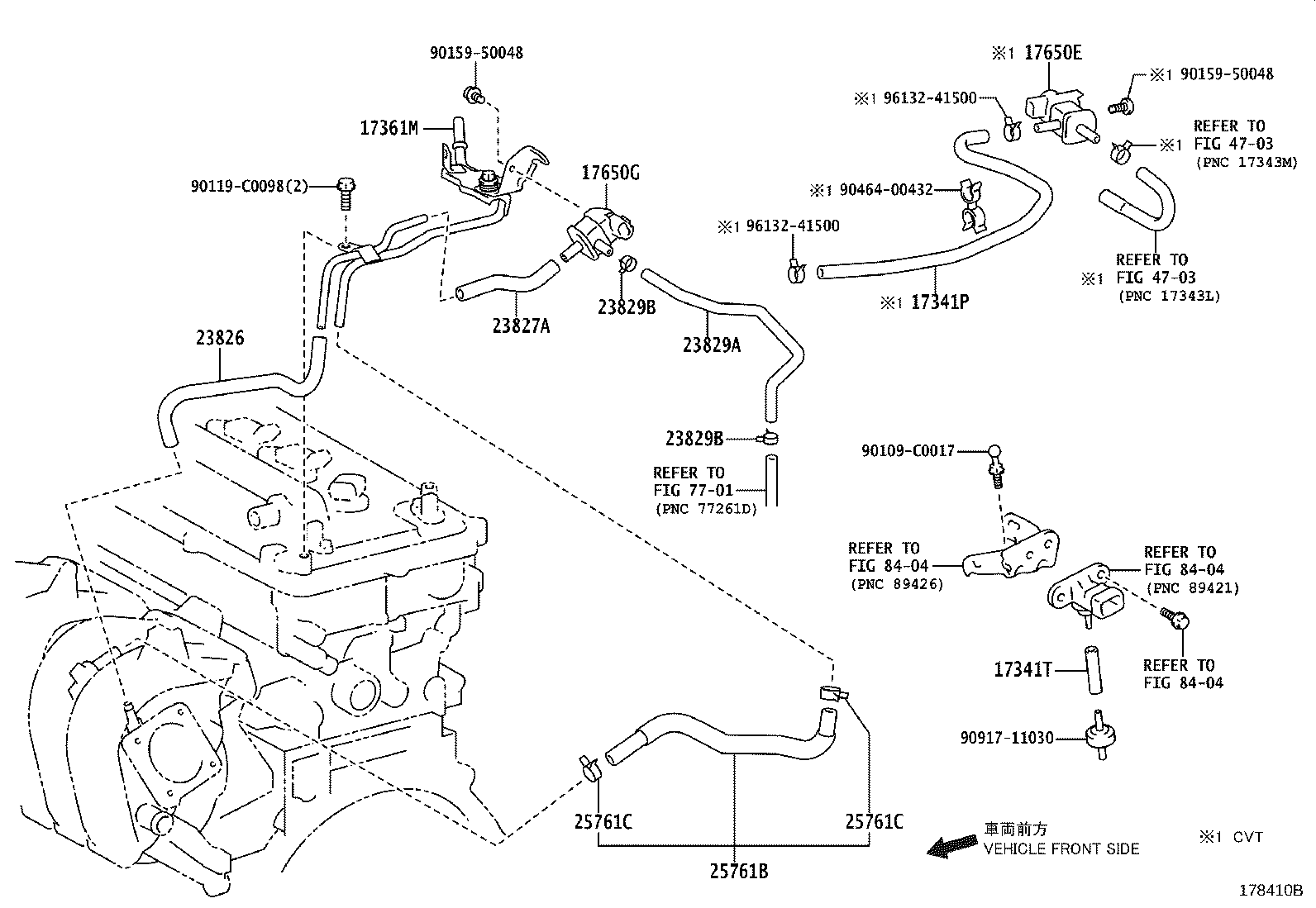

Click highlighted areas on diagram

diagram 17341P 17341T 17361M 17650E 17650G 23826 23827A 23829A 23829B 23829B 25761B 25761C 25761C 4703 4703 7701 8404 8404 8404 90109C0017 90119C0098 9015950048 9015950048 9046400432 9091711030 9613241500 9613241500
Part # Description Qty Price
17341T - HOSE, AIR, NO.1
17341-0T020

1ZRFE,2ZRFE..ZRE18#

 1
17361M - TUBE, AIR
17361-37011

1ZRFE..ZRE181

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12276

1ZRFE,2ZRFE..ZRE18#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0T041

1ZRFE..ZRE181

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-37020

1ZRFE..ZRE181

 1
23829A - HOSE, FUEL VAPOR FEED
23826-0T080

1ZRFE,2ZRFE..ZRE18#

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

1ZRFE,2ZRFE..ZRE18#

(J)

 2
90466-C0002

1ZRFE,2ZRFE..ZRE18#

(L)

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

1ZRFE,2ZRFE..ZRE18#

(J)

 2
90466-C0002

1ZRFE,2ZRFE..ZRE18#

(L)

 2
25761B - HOSE, VACCUM TRANSMITTING, NO.1
25761-0T010

1ZRFE..ZRE181

 1
25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1)
96133-41500

1ZRFE,2ZRFE..ZRE18#

 2
25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1)
96133-41500

1ZRFE,2ZRFE..ZRE18#

 2
Common parts
90109-C0017
90119-C0098
90159-50048
90464-00432
90917-11030
96132-41500
Linked diagrams
4703
7701
8404
