Toyota Corolla (china) ZRE152 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Manufacturers Home
Toyota
GR
COROLLA (CHINA)
ZRE152L-GEFVKC (2010)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

ZRE152L-GEFVKC (2010)

Toyota Corolla (China)

Production Sep 2010 - Mar 2012

Engine 2ZRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0705- )

Click highlighted areas on diagram

MANUAL HEATER CONTROL

Part #	Description	Period	Qty	Price
Linked diagrams
5501

ILLUST NO. 1 OF 3(0705- )

Click highlighted areas on diagram

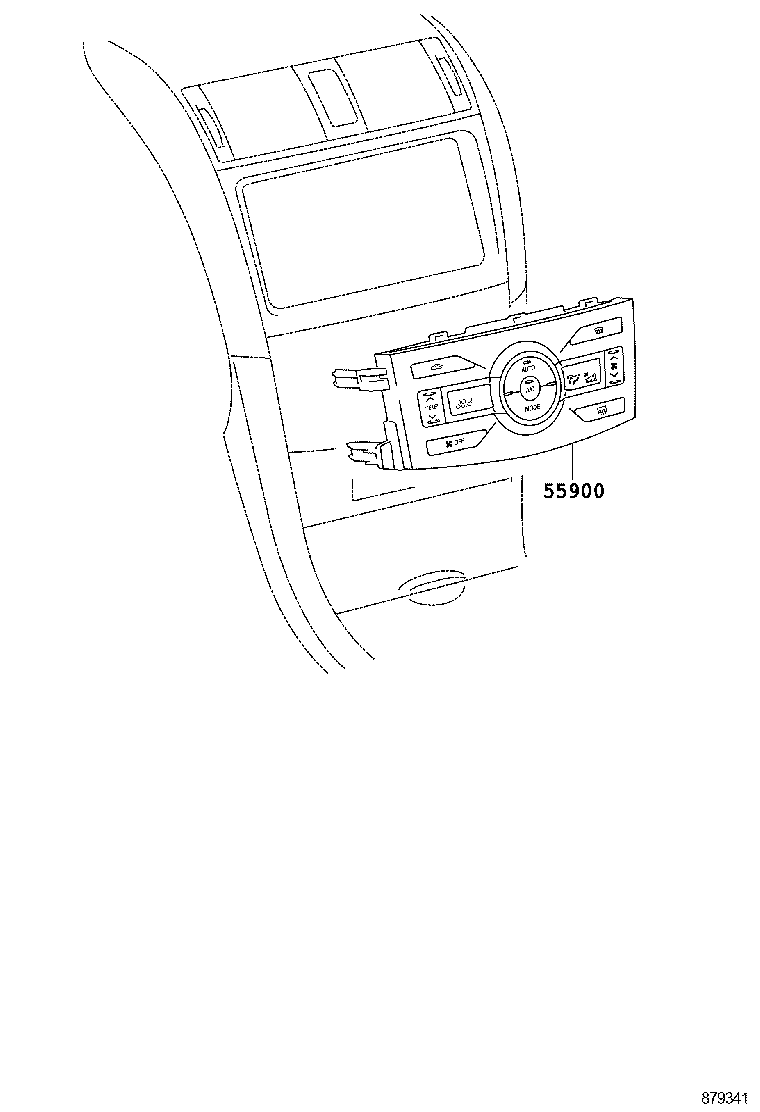

AUTO HEATER CONTROL

Part #	Description	Period	Qty
55900 - CONTROL ASSY, AIR CONDITIONER
55900-02240	ZRE152	05/2007 - 09/2010	1
55900-02330	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
55900-02330	ZRE152,153..GLI,GLX,GLXI	09/2010 - 12/2999	1

ILLUST NO. 2 OF 3(0705- )

Click highlighted areas on diagram

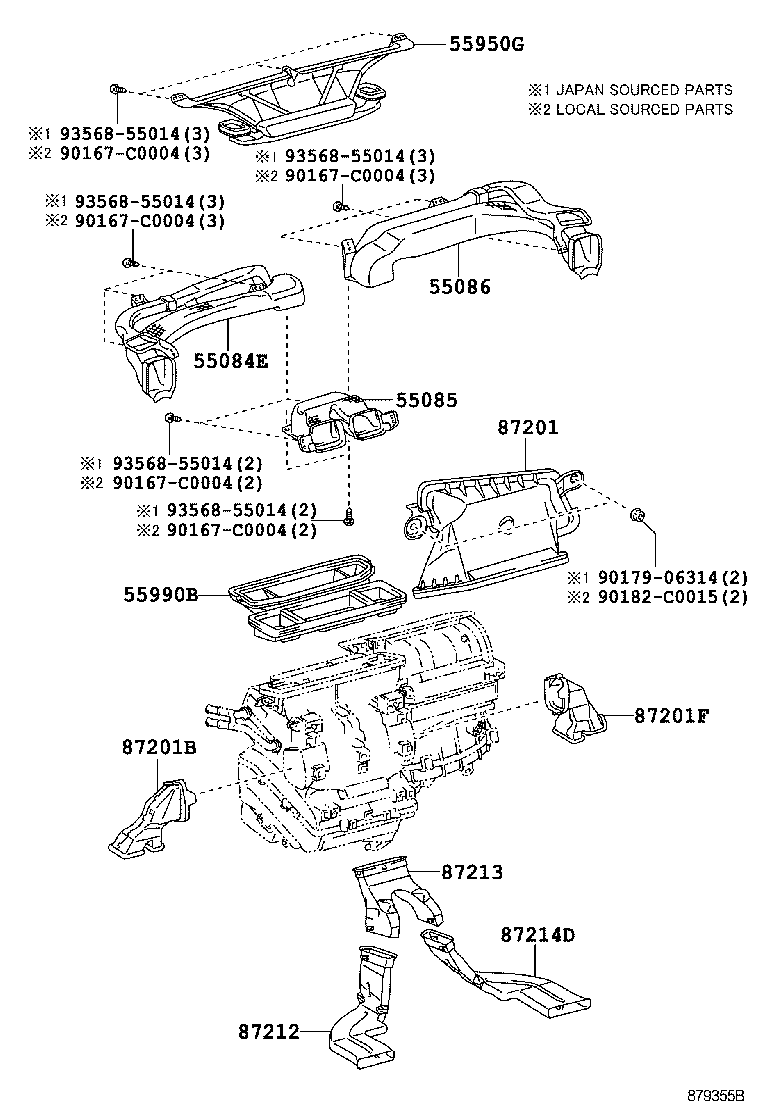

AIR DUCT

Part #	Description	Period	Qty
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-02040	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
55084-02040	ZRE15#	05/2007 - 09/2010	1
55084-02040	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-02080	ZRE15#	05/2007 - 09/2010	1
55085-02080	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
55085-02080	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-02080	ZRE15#	05/2007 - 09/2010	1
55086-02080	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
55086-02080	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
55950G - NOZZLE ASSY, DEFROSTER
55950-02170	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
55950-02170	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
55950-02170	ZRE15#	05/2007 - 09/2010	1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-02090	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
55990-02090	ZRE15#	05/2007 - 09/2010	1
55990-02090	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87220-02050	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
87220-02050	ZRE15#	05/2007 - 09/2010	1
87220-02050	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
87201B - DUCT SUB-ASSY, AIR, NO.2
87211-02300	ZRE15#	05/2007 - 09/2010	1
87211-02300	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
87201F - DUCT SUB-ASSY, AIR, NO.3
87211-02310	ZRE15#	05/2007 - 09/2010	1
87211-02310	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
87211-02310	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
87212 - DUCT, AIR, REAR NO.1
87213-02100	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
87213-02100	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
87213-02100	ZRE15#	05/2007 - 09/2010	1
87213 - DUCT, AIR, REAR NO.2
87215-02080	ZRE15#	05/2007 - 09/2010	1
87215-02080	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
87215-02080	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
87214D - DUCT, AIR, REAR NO.3
87212-02100	ZRE15#	05/2007 - 09/2010	1
87212-02100	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
87212-02100	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
Common parts
90167-C0004
90179-06314
90182-C0015
93568-55014

ILLUST NO. 3 OF 3(0705- )

Click highlighted areas on diagram

SENSOR

Part #	Description	Period	Qty
88505 - DUCT SUB-ASSY,AIR CONDITIONER
88505-02050	ZRE152	05/2007 - 09/2010	1
88505-02050	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
88505-02050	ZRE152,153..GLI,GLX,GLXI	09/2010 - 12/2999	1
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-47031	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
88625-47031	ZRE152	05/2007 - 09/2010	1
88625-47031	ZRE152,153..GLI,GLX,GLXI	09/2010 - 12/2999	1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
88625-47021	ZRE152	05/2007 - 09/2010	1
88625-47021	ZRE152,153..GLI,GLX,GLXI	09/2010 - 12/2999	1
88790B - THERMISTOR ASSY
88790-22131	ZRE15#	05/2007 - 09/2010	1
88790-22131	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
88790-22131	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
Common parts
88688-1E420
