ZRE152L-GEFVKC (2010)

Toyota Corolla (China)

Production Sep 2010 - Mar 2012
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

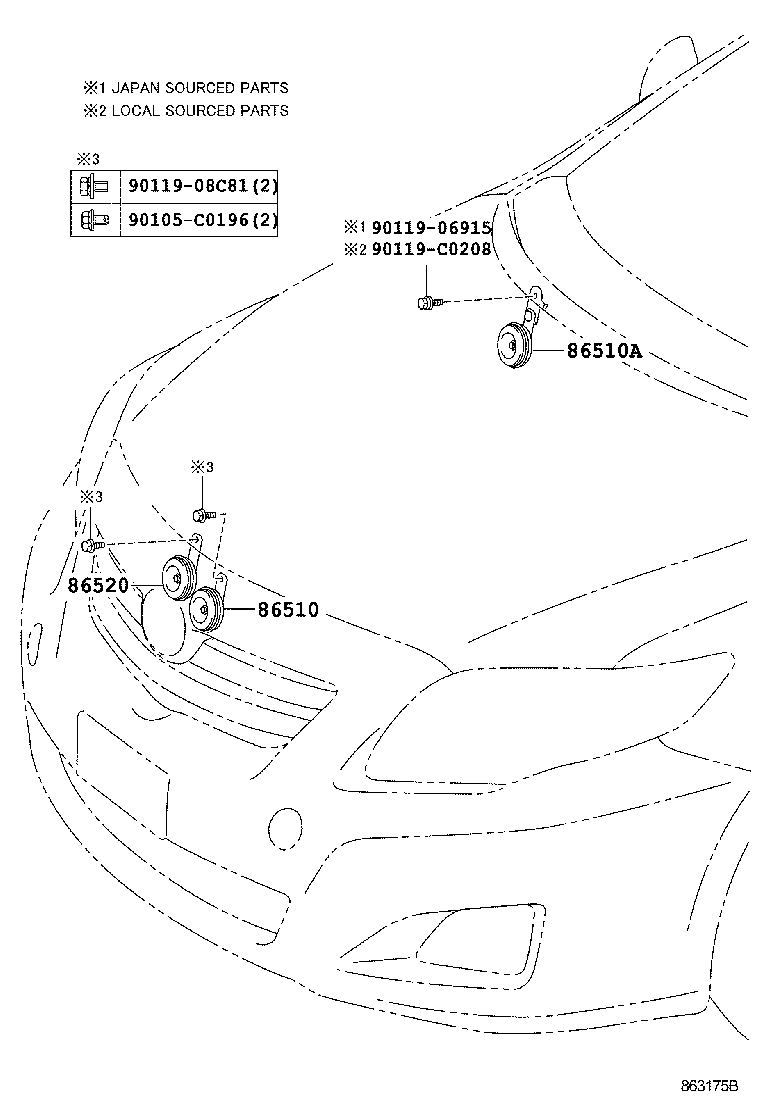

Click highlighted areas on diagram

diagram 86510 86510A 86520 90105C0196 9011906915 9011908C81 90119C0208
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-0R020

ZRE152..GLS,GLXS

 1
86510-0P011

ZRE15#

 1
86510A - HORN ASSY, SECURITY
86560-02060

ZRE15#..GL,GLI,GLX,GLXI

 1
86560-12031

ZRE15#

 1
86560-02060

ZRE152..GLS,GLXS

 1
86520 - HORN ASSY, LOW PITCHED
86520-06120

ZRE152..GLS,GLXS

 1
86520-06091

ZRE15#

 1
Common parts
90105-C0196
90119-06915
90119-08C81
90119-C0208
