ZRE152L-GEFVKC (2010)

Toyota Corolla (China)

Production Sep 2010 - Mar 2012
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

Click highlighted areas on diagram

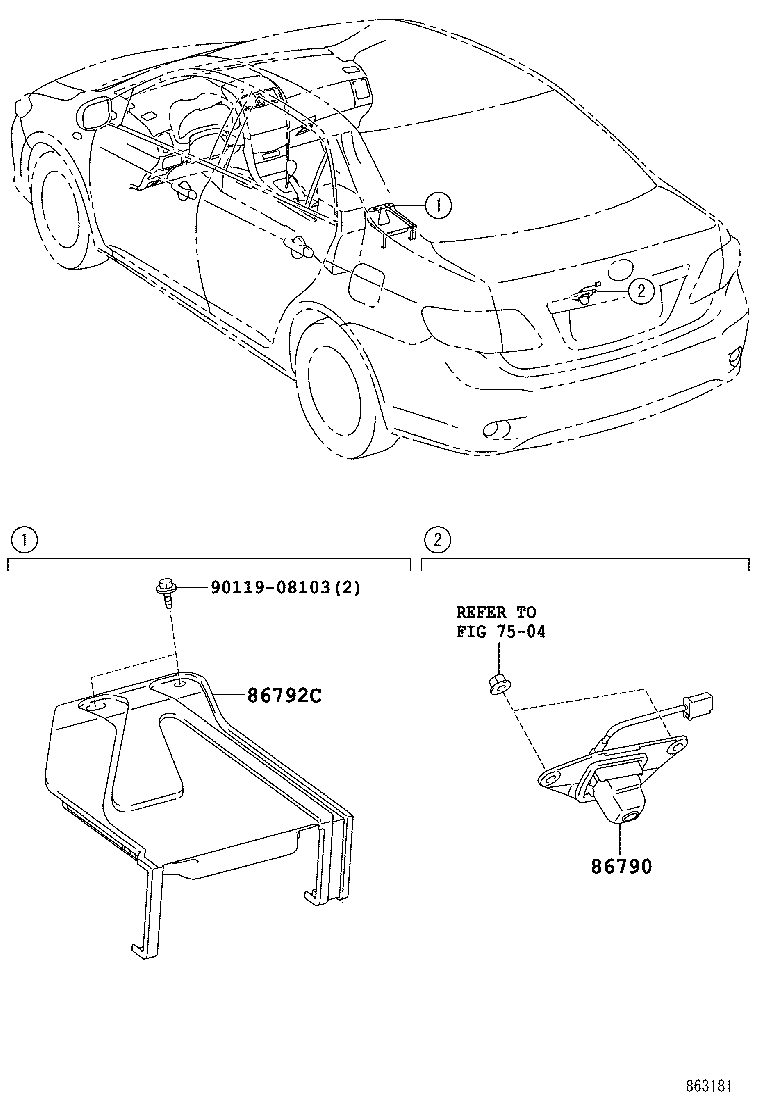

diagram 7504 86790 86792C 9011908103
Part # Description Qty Price
86790 - CAMERA ASSY, TELEVISION
86790-12090

ZRE152..GLXS,PREM

AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP

 1
86790-02020

ZRE152..6F..GLXS

BACK MONITOR-WITH(IN INNER MIRROR)

 1
86790-02020

ZRE152..6F..GLXS

BACK MONITOR-WITH(GUIDE)

 1
86790-02020

ZRE152,153..GLX,GLXI

BACK MONITOR-WITH(IN INNER MIRROR)

 1
86790-02020

ZRE152..GLI,GLS;ZRE152..6F..GLXS

AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER

 1
86792C - COMPUTER, PARKING ASSIST
86792-12050

ZRE152..GLXS,PREM

AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP

 1
86792-12060

ZRE152..GLI,GLS;ZRE152..6F..GLXS

AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER

 1
86792-12060

ZRE152..6F..GLXS

BACK MONITOR-WITH(GUIDE)

 1
Common parts
90119-08103
Linked diagrams
7504
