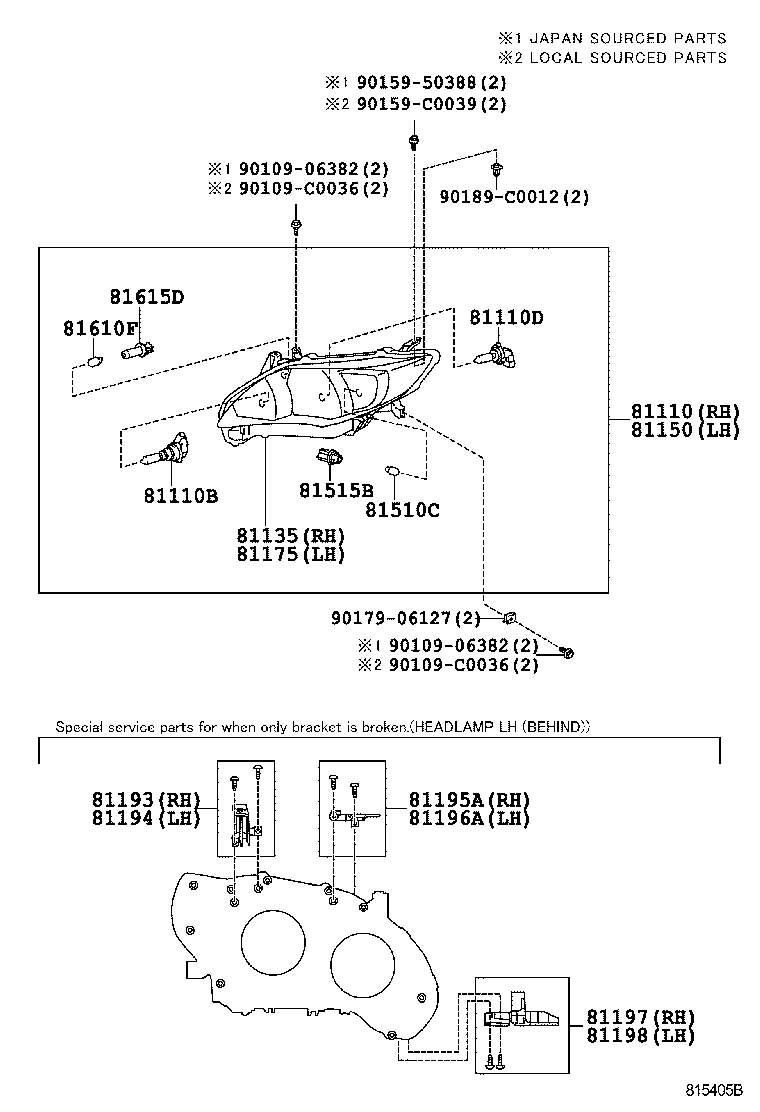

Toyota Corolla (china) ZRE152 HEADLAMP

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-02610	ZRE15#..GL,GLI,GLS,GLXI,PREM	05/2007 - 09/2010	1
81110-02B30	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046	ZRE15#..GL,GLI,GLX,GLXI 12V65W(SAE),60W(ECE)	09/2010 - 12/2999	2
90981-13046	ZRE15# 12V65W(SAE),60W(ECE)	05/2007 - 09/2010	2
90981-13046	ZRE152..GLS,GLXS 12V65W(SAE),60W(ECE)	09/2010 - 03/2012	2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13047	ZRE151,152..GL,GLI,GLXI 12V 51W,HALOGEN	09/2010 - 12/2999	2
90981-13047	ZRE152..GLS,GLXS 12V 51W,HALOGEN	09/2010 - 03/2012	2
90981-13047	ZRE15#..GL,GLI,GLS,GLXI,PREM 12V 51W,HALOGEN	05/2007 - 09/2010	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-02610	ZRE15#..GL,GLI,GLS,GLXI,PREM	05/2007 - 09/2010	1
81130-02B30	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
81150 - HEADLAMP ASSY, LH
81150-02610	ZRE15#..GL,GLI,GLS,GLXI,PREM	05/2007 - 09/2010	1
81150-02B30	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-02610	ZRE15#..GL,GLI,GLS,GLXI,PREM	05/2007 - 09/2010	1
81170-02B30	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-12120	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
81193-12050	ZRE15#	05/2007 - 09/2010	1
81193-12120	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-12110	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
81194-12050	ZRE15#	05/2007 - 09/2010	1
81194-12110	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-12050	ZRE15#	05/2007 - 09/2010	1
81195-12140	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
81195-12140	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-12050	ZRE15#	05/2007 - 09/2010	1
81196-12140	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
81196-12140	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-12100	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
81197-12100	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
81197-12050	ZRE15#	05/2007 - 09/2010	1
81198 - BRACKET, HEADLAMP, LWR LH
81198-12050	ZRE15#	05/2007 - 09/2010	1
81198-12110	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
81198-12110	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021	ZRE152..GLS,GLXS 12V 21W,AMBER	09/2010 - 03/2012	2
90981-15021	ZRE15# 12V 21W,AMBER	05/2007 - 09/2010	2
90981-15021	ZRE15#..GL,GLI,GLX,GLXI 12V 21W,AMBER	09/2010 - 12/2999	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90069-81074	ZRE152..GLS,GLXS	09/2010 - 03/2012	2
90069-81074	ZRE15#	05/2007 - 09/2010	2
90069-81074	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	ZRE15# 12V 5W	05/2007 - 09/2010	2
99132-12050	ZRE152..GLS,GLXS 12V 5W	09/2010 - 03/2012	2
99132-12050	ZRE15#..GL,GLI,GLX,GLXI 12V 5W	09/2010 - 12/2999	2
81615D - SOCKET, CLEARANCE LAMP
90069-81075	ZRE152..GLS,GLXS	09/2010 - 03/2012	2
90069-81075	ZRE15#	05/2007 - 09/2010	2
90069-81075	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	2
Common parts
90109-06382
90109-C0036
90159-50388
90159-C0039
90179-06127
90189-C0012

ZRE152L-GEFVKC (2010)

(1009- )ZRE151,152
