ZRE152L-GEFVKC (2010)

Toyota Corolla (China)

Production Sep 2010 - Mar 2012
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1009- )

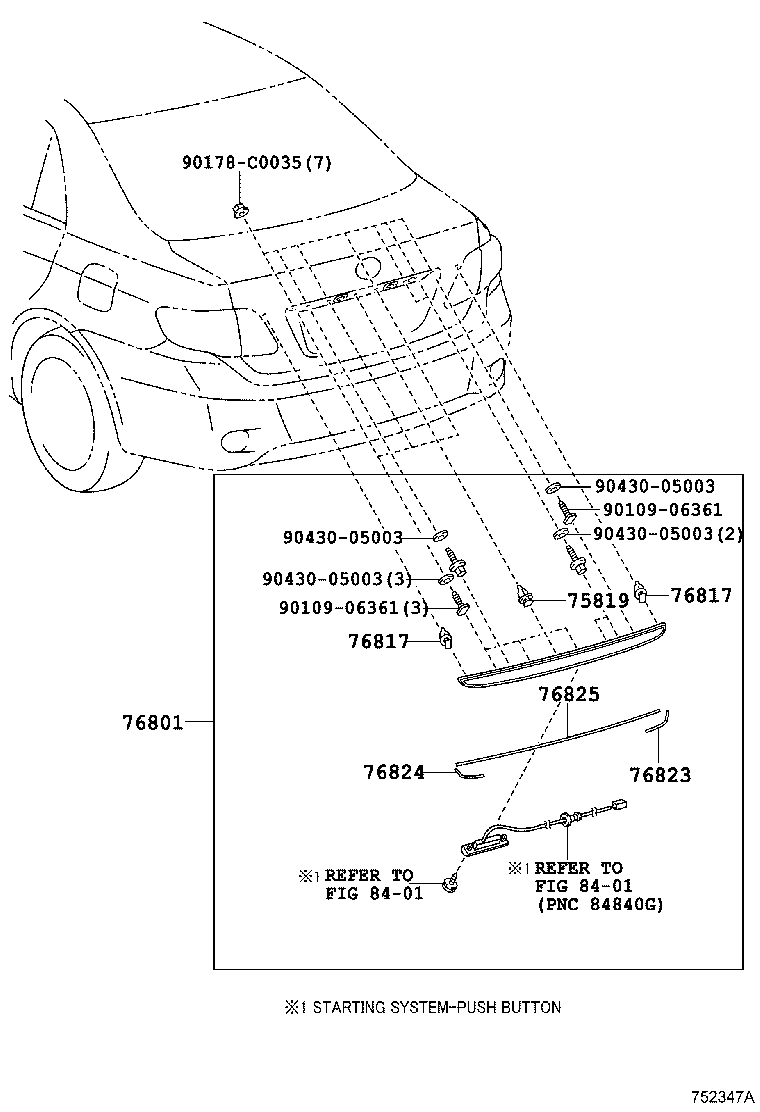

Click highlighted areas on diagram

diagram 75819 76801 76817 76817 76823 76824 76825 8401 8401 9010906361 9010906361 90178C0035 9043005003 9043005003 9043005003 9043005003
Part # Description Qty Price
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-33010

ZRE15#..GL,GLI,GLX,GLXI

 1
75819-33010

ZRE152..GLS,GLXS

 1
75819-33010

ZRE15#

 1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-02310A0

ZRE15#..GL,GLI,GLS

SUPER WHITE 2,040

 1
76801-02310C0

ZRE15#..GL,GLI,GLS

BLACK MC.,209

 1
76801-02310D0

ZRE15#..GL,GLI,GLS

RED M.M.,3R3

 1
76801-02310B0

ZRE15#..GL,GLI,GLS

SILVER ME.,1F7

 1
76801-02310J0

ZRE15#..GL,GLI,GLS

DK.BLUE MC.,8S6

 1
76801-02310E0

ZRE15#..GL,GLI,GLS

BEIGE M. M.,4Q2

 1
76801-02670

ZRE152..GLS,GLXS

PLATED

 1
76801-02320

ZRE152..GLXI,GLXS

PLATED

 1
76801-02680

ZRE152..GLI,GLS;ZRE152..6F..GLXS

PLATED,AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER

 1
76801-02680

ZRE152..6F..GLXS

PLATED,BACK MONITOR-WITH(GUIDE)

 1
76801-02670

ZRE151,152..GL,GLI,GLXI

PLATED

 1
76801-02680

ZRE152..6F..GLXS

PLATED,BACK MONITOR-WITH(IN INNER MIRROR)

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-12100

ZRE152..GLS,GLXS

 2
76817-12100

ZRE15#..GL,GLI,GLX,GLXI

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-12100

ZRE152..GLS,GLXS

 2
76817-12100

ZRE15#..GL,GLI,GLX,GLXI

 2
76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76823-02030

ZRE15#..GL,GLI,GLX,GLXI

 1
76823-02030

ZRE152..GLS,GLXS

 1
76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76824-02020

ZRE152..GLS,GLXS

 1
76824-02020

ZRE15#..GL,GLI,GLX,GLXI

 1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-02100

ZRE15#..GL,GLI,GLX,GLXI

 1
76825-02050

ZRE15#

 1
76825-02100

ZRE152..GLS,GLXS

 1
Common parts
90109-06361
90178-C0035
90430-05003
Linked diagrams
8401
