ZRE152L-GEFVKC (2010)

Toyota Corolla (China)

Production Sep 2010 - Mar 2012
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

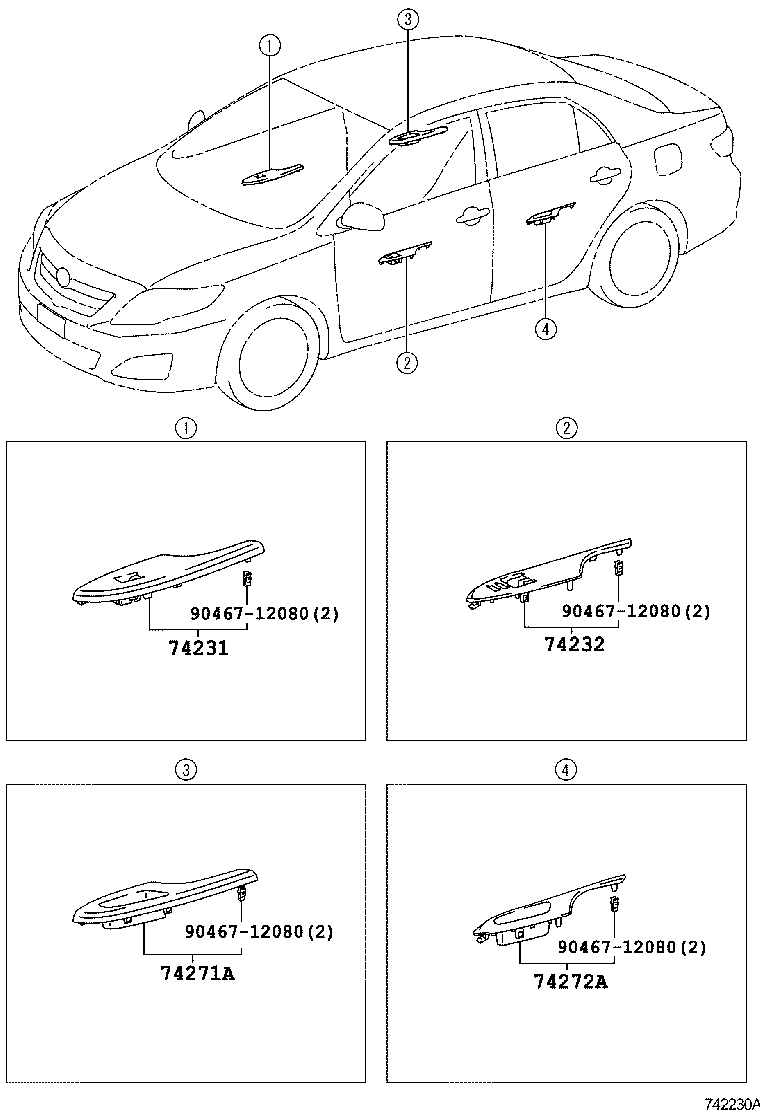

ILLUST NO. 1 OF 2(0705- )

Click highlighted areas on diagram

ARMREST

diagram 74231 74232 74271A 74272A 9046712080 9046712080 9046712080 9046712080
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-02620B0

ZRE15#..GL,GLI,GLXI,PREM

SILVER,TRIM4#

 1
74231-02B50B0

ZRE152..GLS,GLXS

ORNAMENT SILVER,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-02630B0

ZRE15#..GL,GLI,GLXI,PREM

SILVER,TRIM4#

 1
74232-02C00B0

ZRE152..GLS,GLXS

ORNAMENT SILVER,TRIM1#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-02300B0

ZRE152..GLS,GLXS

ORNAMENT SILVER,TRIM1#

 1
74271-02180B0

ZRE15#..GL,GLI,GLXI,PREM

SILVER,TRIM4#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-02290B0

ZRE152..GLS,GLXS

ORNAMENT SILVER,TRIM1#

 1
74272-02170B0

ZRE15#..GL,GLI,GLXI,PREM

SILVER,TRIM4#

 1
Common parts
90467-12080

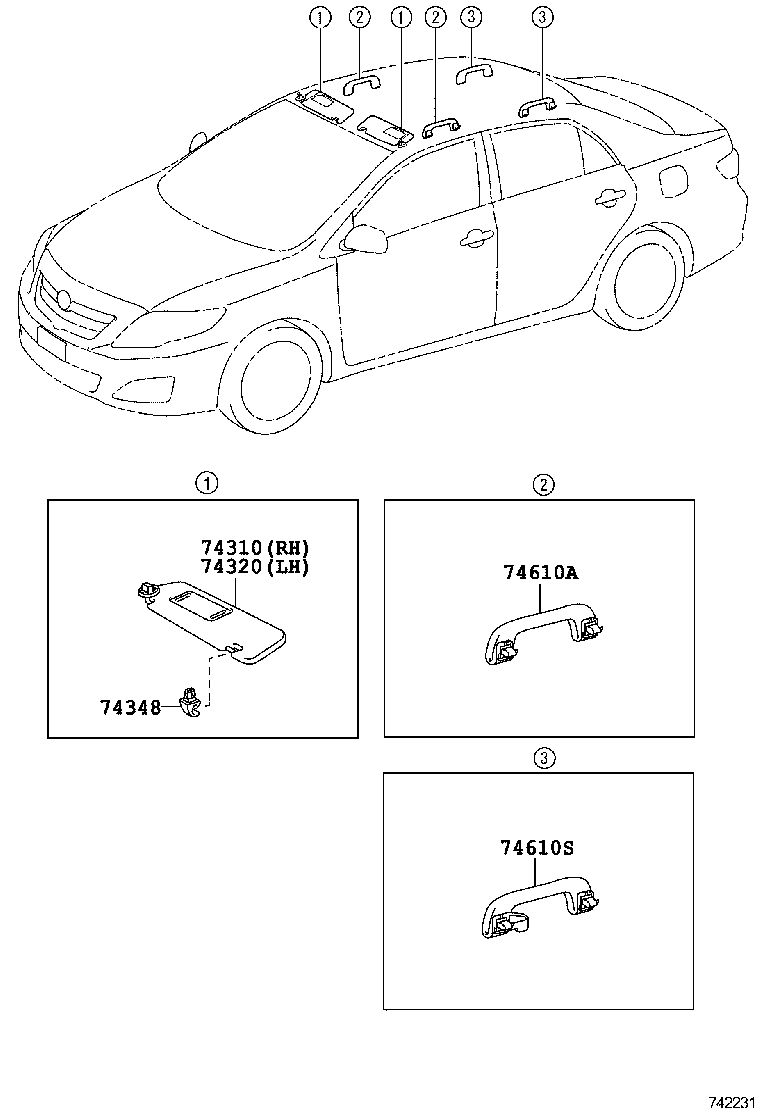

ILLUST NO. 2 OF 2(0705- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74348 74610A 74610S
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-02D20E0

ZRE15#..GL,GLI,GLS

GREGE,TRIM4#

 1
74310-02D30E0

ZRE152..GLXI,GLXS,PREM

GREGE,TRIM4#

 1
74310-02D20B0

ZRE151,152..GL,GLS

LIGHT GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-02720E0

ZRE152..GLXI,GLXS,PREM

GREGE,TRIM4#

 1
74320-02710E0

ZRE15#..GL,GLI,GLS

GREGE,TRIM4#

 1
74320-02710B0

ZRE151,152..GL,GLS

LIGHT GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-33040E0

ZRE15#

GREGE,TRIM4#

 2
74348-33040B1

ZRE15#..GL,GLI,GLX

LT.GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-52020B1

ZRE15#..GL,GLI,GLS,GLX,GLXS

LT.GRAY,TRIM1#

 2
74610-52020E0

ZRE15#

GREGE,TRIM4#

 2
74610S - GRIP ASSY, ASSIST
74610-52030B1

ZRE15#..GL,GLI,GLX

LT.GRAY,TRIM1#

 2
74610-52030E0

ZRE15#

GREGE,TRIM4#

 2
