ZRE152L-GEFVKC (2010)

Toyota Corolla (China)

Production Sep 2010 - Mar 2012
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

Click highlighted areas on diagram

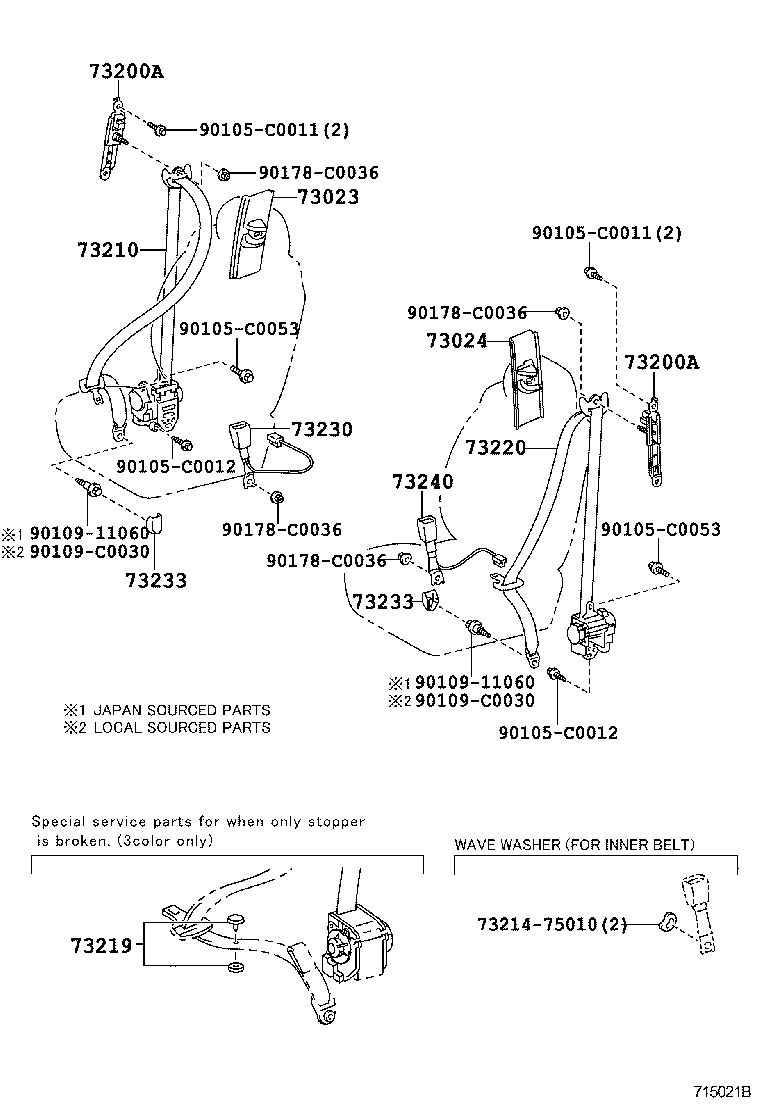

FRONT SEAT

diagram 73023 73024 73200A 73200A 73210 7321475010 73219 73220 73230 73233 73233 73240 90105C0011 90105C0011 90105C0012 90105C0012 90105C0053 90105C0053 9010911060 9010911060 90109C0030 90109C0030 90178C0036 90178C0036 90178C0036 90178C0036
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-06110B1

ZRE15#..GL,GLI,GLX

LT.GRAY,TRIM1#

 1
73023-06110E0

ZRE15#

GREGE,TRIM4#

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-06090B1

ZRE15#..GL,GLI,GLX

LT.GRAY,TRIM1#

 1
73024-06090E0

ZRE15#

GREGE,TRIM4#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-06080

ZRE152..GLS,GLXS

 2
73200-06080

ZRE15#

 2
73200-06080

ZRE15#..GL,GLI,GLX,GLXI

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-06080

ZRE152..GLS,GLXS

 2
73200-06080

ZRE15#

 2
73200-06080

ZRE15#..GL,GLI,GLX,GLXI

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-02330E0

ZRE15#

GREGE,TRIM4#

 1
73210-02330B1

ZRE152,153..GLS,GLX,GLXS

DK.GRAY,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

ZRE15#

BLACK

 1
73219-33030

ZRE152..GLS,GLXS

BEIGE

 1
73219-33010

ZRE15#..GL,GLI,GLX,GLXI

BLACK

 1
73219-33020

ZRE15#

GRAY

 1
73219-33030

ZRE15#..GL,GLI,GLX,GLXI

BEIGE

 1
73219-33030

ZRE15#

BEIGE

 1
73219-33020

ZRE152..GLS,GLXS

GRAY

 1
73219-33020

ZRE15#..GL,GLI,GLX,GLXI

GRAY

 1
73219-33010

ZRE152..GLS,GLXS

BLACK

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-02300E0

ZRE15#

GREGE,TRIM4#

 1
73220-02300B1

ZRE152,153..GLS,GLX,GLXS

DK.GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-02430B0

ZRE15#..GL,GLI,GLX

DK.GRAY,TRIM1#

 1
73230-02430E0

ZRE15#

GREGE,TRIM4#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-12050B0

ZRE15#..GL,GLI,GLX

DK.GRAY,TRIM1#

 2
73233-12050E0

ZRE15#..GL,GLI,GLXI,GLXS,PREM

GREGE,TRIM4#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-12050B0

ZRE15#..GL,GLI,GLX

DK.GRAY,TRIM1#

 2
73233-12050E0

ZRE15#..GL,GLI,GLXI,GLXS,PREM

GREGE,TRIM4#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-02420E0

ZRE152..GLXI,GLXS,PREM

GREGE,TRIM4#

 1
73230-02410B0

ZRE151,152..GL,GLI

DK.GRAY,TRIM1#

 1
73230-02420B0

ZRE152,153..GLX,GLXS

DK.GRAY,TRIM1#

 1
73230-02410E0

ZRE15#..GL,GLI,GLS

GREGE,TRIM4#

 1
Common parts
73214-75010
90105-C0011
90105-C0012
90105-C0053
90109-11060
90109-C0030
90178-C0036

(0705- )

Click highlighted areas on diagram

REAR SEAT

diagram 73219 73360B 73360B 73439 73470B 73480 73719 73719 90105C0012 90105C0012 90105C0012 90105C0012 90105C0012 90105C0012 90105C0012 90105C0012
Part # Description Qty Price
73219 - STOPPER, TONGUE PLATE
73219-33010

ZRE15#

BLACK

 1
73219-33030

ZRE152..GLS,GLXS

BEIGE

 1
73219-33010

ZRE15#..GL,GLI,GLX,GLXI

BLACK

 1
73219-33020

ZRE15#

GRAY

 1
73219-33030

ZRE15#..GL,GLI,GLX,GLXI

BEIGE

 1
73219-33030

ZRE15#

BEIGE

 1
73219-33020

ZRE152..GLS,GLXS

GRAY

 1
73219-33020

ZRE15#..GL,GLI,GLX,GLXI

GRAY

 1
73219-33010

ZRE152..GLS,GLXS

BLACK

 1
73360B - BELT ASSY, REAR SEAT, OUTER
73360-02390E0

ZRE15#

GREGE,TRIM4#

 2
73360-02390B1

ZRE152..GLS,GLXS

DK.GRAY,TRIM1#

 2
73360B - BELT ASSY, REAR SEAT, OUTER
73360-02390E0

ZRE15#

GREGE,TRIM4#

 2
73360-02390B1

ZRE152..GLS,GLXS

DK.GRAY,TRIM1#

 2
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-02050

ZRE152..GLS,GLXS

 1
73439-02050

ZRE15#

 1
73439-02050

ZRE15#..GL,GLI,GLX,GLXI

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-02290B1

ZRE152,153..GLS,GLX,GLXS

DK.GRAY,TRIM1#

 1
73470-02290E0

ZRE15#

GREGE,TRIM4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-02300E0

ZRE15#

GREGE,TRIM4#

 1
73480-02310B0

ZRE152,153..GLS,GLX,GLXS

DK.GRAY,TRIM1#

 1
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-02020

ZRE15#

 2
73719-02020

ZRE152..GLS,GLXS

 2
73719-02020

ZRE15#..GL,GLI,GLX,GLXI

 2
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-02020

ZRE15#

 2
73719-02020

ZRE152..GLS,GLXS

 2
73719-02020

ZRE15#..GL,GLI,GLX,GLXI

 2
Common parts
90105-C0012
