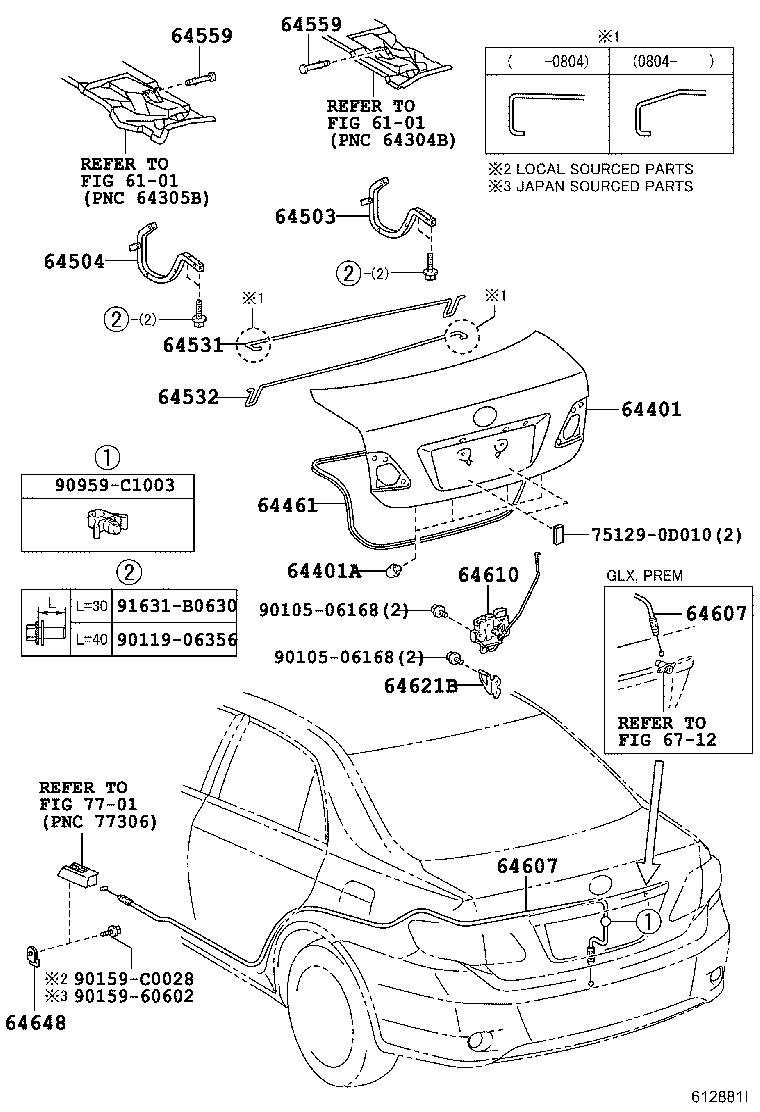

Toyota Corolla (china) ZRE152 LUGGAGE COMPARTMENT DOOR & LOCK

Part #	Description	Period	Qty
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-02730	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
64401-02270	ZRE15#..GL,GLI,GLXI	05/2007 - 09/2010	1
64401-02720	ZRE152..6F..GLXS BACK MONITOR-WITH(IN INNER MIRROR)	04/2011 - 03/2012	1
64401-02750	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
64401-02720	ZRE152..6F..GLXS BACK MONITOR-WITH(GUIDE)	04/2011 - 03/2012	1
64401-02720	ZRE152..GLS;ZRE152..6F..GLXS AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER	09/2010 - 04/2011	1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09116	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	4
90541-09116	ZRE15#	05/2007 - 09/2010	4
90541-09116	ZRE152..GLS,GLXS	09/2010 - 03/2012	4
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-02120	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
64461-02120	ZRE15#	05/2007 - 09/2010	1
64461-02120	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-02100	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
64503-02100	ZRE15#	05/2007 - 09/2010	1
64503-02100	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-02100	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
64503-02100	ZRE15#	05/2007 - 09/2010	1
64503-02100	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-02202	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
64531-02192	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
64531-02190	ZRE15#..GL,GLI,GLXI,PREM	05/2007 - 04/2008	1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-02182	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
64532-02180	ZRE15#..GL,GLI,GLXI,PREM	05/2007 - 04/2008	1
64532-02192	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040	ZRE15#	05/2007 - 09/2010	2
64559-12040	ZRE152..GLS,GLXS	09/2010 - 03/2012	2
64559-12040	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	2
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040	ZRE15#	05/2007 - 09/2010	2
64559-12040	ZRE152..GLS,GLXS	09/2010 - 03/2012	2
64559-12040	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-02191	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
64607-02190	ZRE15#..GL,GLI,GLS,GLXI,GLXS	05/2007 - 01/2010	1
64607-02191	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-02191	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
64607-02190	ZRE15#..GL,GLI,GLS,GLXI,GLXS	05/2007 - 01/2010	1
64607-02191	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-02110	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
64610-02110	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
64610-02110	ZRE15#..GL,GLI,GLS,GLXI,GLXS	05/2007 - 09/2010	1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-06060	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
64621-06060	ZRE15#	05/2007 - 09/2010	1
64621-06060	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
64648 - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-02020	ZRE152..GLS,GLXS	07/2011 - 03/2012	1
64648-02020	ZRE15#..GL,GLI,GLX,GLXI	07/2011 - 12/2999	1
64648-12020	ZRE15#	05/2007 - 09/2010	1
64648-12020	ZRE15#	09/2010 - 06/2011	1
Common parts
75129-0D010
90105-06168
90119-06356
90159-60602
90159-C0028
90959-C1003
91631-B0630
Linked diagrams
6101
6712
7701

ZRE152L-GEFVKC (2010)

(0705- )
