ZRE152L-GEFVKC (2010)
Toyota Corolla (China)

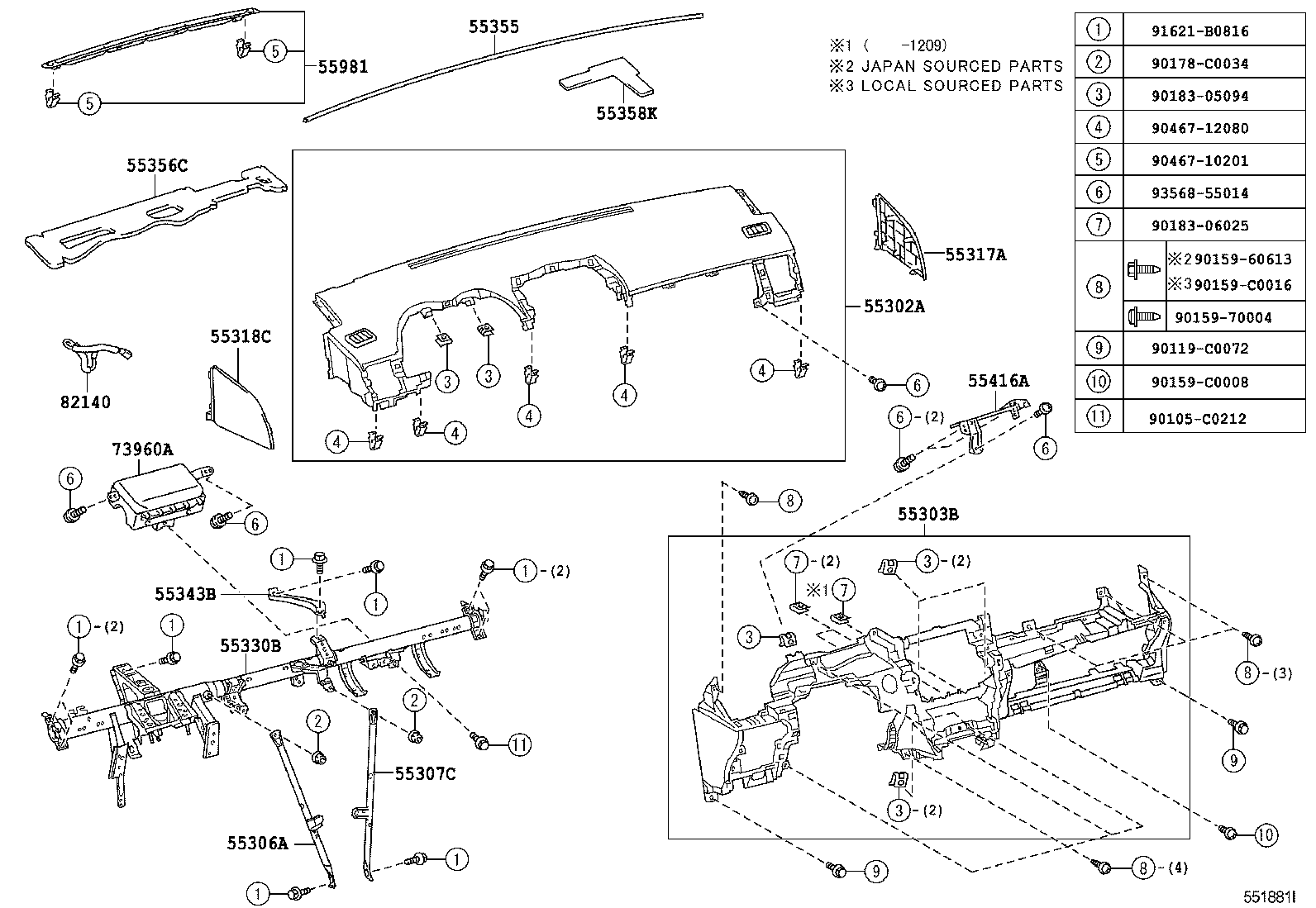

ILLUST NO. 1 OF 2(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-02230E0 |
ZRE15# ASH BROWN,TRIM4# |
1 | ||
| 55302-02231B0 |
ZRE152..GLS,GLXS DK.GRAY,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02250E0 |
ZRE15# GREGE,TRIM4# |
1 | ||
| 55303-02250B0 |
ZRE152,153..GLS,GLX,GLXS DK.GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02290 |
ZRE15# |
1 | ||
| 55306-02290 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55306-02290 |
ZRE152..GLS,GLXS |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02150 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55307-02150 |
ZRE15# |
1 | ||
| 55307-02150 |
ZRE152..GLS,GLXS |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-02120E0 |
ZRE15# GREGE,TRIM4# |
1 | ||
| 55317-02120B0 |
ZRE152,153..GLS,GLX,GLXS DK.GRAY,TRIM1# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-02020B0 |
ZRE152,153..GLS,GLX,GLXS DK.GRAY,TRIM1# |
1 | ||
| 55318-02020E0 |
ZRE15# GREGE,TRIM4# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-02460 |
ZRE15# |
1 | ||
| 55330-02460 |
ZRE152..GLS,GLXS |
1 | ||
| 55330-02460 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02090 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55343-02090 |
ZRE152..GLS,GLXS |
1 | ||
| 55343-02090 |
ZRE15# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02110 |
ZRE152..GLS,GLXS |
1 | ||
| 55355-02110 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55355-02110 |
ZRE15# |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02110 |
ZRE15# |
1 | ||
| 55356-02110 |
ZRE152..GLS,GLXS |
1 | ||
| 55356-02110 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-02060 |
ZRE152..GLS,GLXS |
1 | ||
| 55358-02060 |
ZRE15# |
1 | ||
| 55358-02060 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-02070 |
ZRE15# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-02040 |
ZRE152..GLXI,GLXS,PREM |
1 | ||
| 55981-02040 |
ZRE152..GLXS |
1 | ||
| 55981-02040 |
ZRE152,153..GLX,GLXI |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02100 |
ZRE152..GLS,GLXS |
1 | ||
| 73960-02100 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 73960-02100 |
ZRE15# |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-02270 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 82140-02270 |
ZRE15# |
1 | ||
| 82140-02270 |
ZRE152..GLS,GLXS |
1 | ||
| Common parts | ||||
| 90105-C0212 | ||||
| 90119-C0072 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90159-C0008 | ||||
| 90159-C0016 | ||||
| 90178-C0034 | ||||
| 90183-05094 | ||||
| 90183-06025 | ||||
| 90467-10201 | ||||
| 90467-12080 | ||||
| 91621-B0816 | ||||
| 93568-55014 | ||||

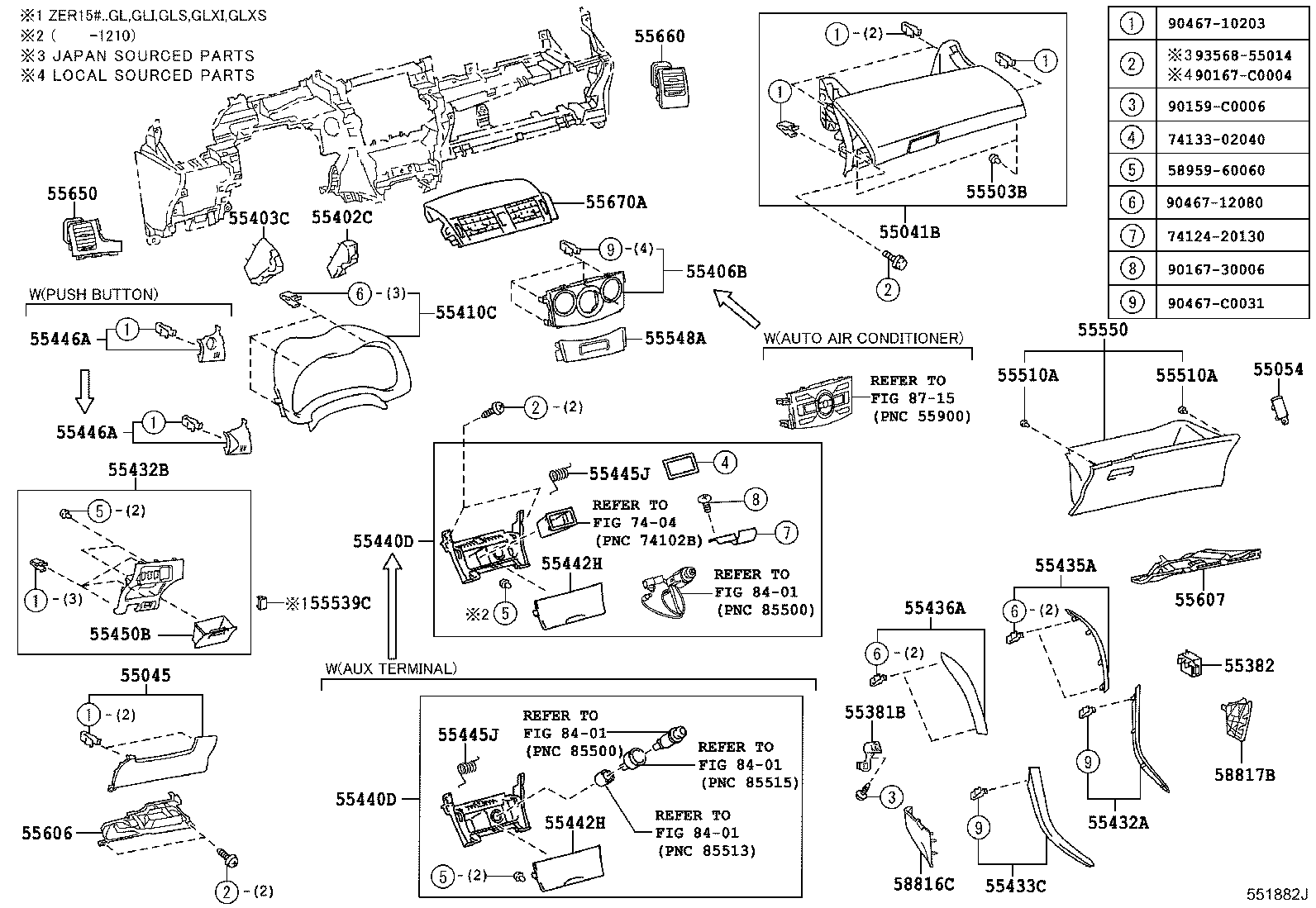

ILLUST NO. 2 OF 2(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-02111E0 |
ZRE15#..GL,GLI,GLXI,PREM GREGE,TRIM4# |
1 | ||
| 55041-02111B0 |
ZRE152,153..GLS,GLX,GLXS DK.GRAY,TRIM1# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02221E0 |
ZRE15#..GL,GLI,GLXI,PREM GREGE,TRIM4# |
1 | ||
| 55045-02221B0 |
ZRE152,153..GLS,GLX,GLXS DK.GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12030 |
ZRE15# |
1 | ||
| 55054-12030 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55054-12030 |
ZRE152..GLS,GLXS |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-02150 |
ZRE15# |
1 | ||
| 55381-02150 |
ZRE152..GLS,GLXS |
1 | ||
| 55381-02150 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55382 - BRACKET, FINISH PANEL MOUNTING, NO.2 | ||||
| 55382-02120 |
ZRE152..GLS,GLXS |
1 | ||
| 55382-02120 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55382-02120 |
ZRE15# |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-02030 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55402-02030 |
ZRE152..GLS,GLXS |
1 | ||
| 55402-02030 |
ZRE15# |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-02130 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55403-02130 |
ZRE15# |
1 | ||
| 55403-02130 |
ZRE152..GLS,GLXS |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02090E0 |
ZRE15# ASH BROWN,TRIM4# |
1 | ||
| 55410-02090B0 |
ZRE152..GLS,GLXS DK.GRAY,TRIM1# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-02450 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55432-02450 |
ZRE152..GLS,GLXS |
1 | ||
| 55432-02181 |
ZRE15# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-02041E0 |
ZRE15#..GL,GLI,GLXI,PREM GREGE,TRIM4# |
1 | ||
| 55480-02041B0 |
ZRE152,153..GLS,GLX,GLXS DK.GRAY,TRIM1# |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55433-02310 |
ZRE152..GLS,GLXS |
1 | ||
| 55433-02121 |
ZRE15# |
1 | ||
| 55433-02310 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-02190 |
ZRE15# |
1 | ||
| 55435-02370 |
ZRE152..GLS,GLXS |
1 | ||
| 55435-02370 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-02330 |
ZRE152..GLS,GLXS |
1 | ||
| 55436-02150 |
ZRE15# |
1 | ||
| 55436-02330 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-02080 |
ZRE15# |
1 | ||
| 55440-02230 |
ZRE152..GLXI,GLXS AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER |
1 | ||
| 55440-02230 |
ZRE152..GLXI,GLXS AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER |
1 | ||
| 55440-02330 |
ZRE152..GLXS |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-02080 |
ZRE15# |
1 | ||
| 55440-02230 |
ZRE152..GLXI,GLXS AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER |
1 | ||
| 55440-02230 |
ZRE152..GLXI,GLXS AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER |
1 | ||
| 55440-02330 |
ZRE152..GLXS |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-02720 |
ZRE152..GLXI,GLXS AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER |
1 | ||
| 55442-02720 |
ZRE152..GLXI,GLXS AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER |
1 | ||
| 55442-02440 |
ZRE152..GLXS |
1 | ||
| 55442-02160 |
ZRE15# |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-02720 |
ZRE152..GLXI,GLXS AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER |
1 | ||
| 55442-02720 |
ZRE152..GLXI,GLXS AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER |
1 | ||
| 55442-02440 |
ZRE152..GLXS |
1 | ||
| 55442-02160 |
ZRE15# |
1 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-02130 |
ZRE15# |
1 | ||
| 55445-02130 |
ZRE152..GLXS |
1 | ||
| 55445-12130 |
ZRE152,153..GLX,GLXI,GLXS AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER |
1 | ||
| 55445-12130 |
ZRE152,153..GLX,GLXI,GLXS AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER |
1 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-02130 |
ZRE15# |
1 | ||
| 55445-02130 |
ZRE152..GLXS |
1 | ||
| 55445-12130 |
ZRE152,153..GLX,GLXI,GLXS AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER |
1 | ||
| 55445-12130 |
ZRE152,153..GLX,GLXI,GLXS AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02150B0 |
ZRE151,152..GL,GLI DK.GRAY,TRIM1# |
1 | ||
| 55446-02150E0 |
ZRE15#..GL,GLI,GLS,GLXI,GLXS GREGE,TRIM4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02150B0 |
ZRE151,152..GL,GLI DK.GRAY,TRIM1# |
1 | ||
| 55446-02150E0 |
ZRE15#..GL,GLI,GLS,GLXI,GLXS GREGE,TRIM4# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-02030E0 |
ZRE15#..GL,GLI,GLXI,PREM GREGE,TRIM4# |
1 | ||
| 55450-02030B0 |
ZRE152,153..GLS,GLX,GLXS DK.GRAY,TRIM1# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 58959-60060 |
ZRE152..GLS,GLXS |
2 | ||
| 58959-60060 |
ZRE15#..GL,GLI,GLX,GLXI |
2 | ||
| 58959-60060 |
ZRE15# |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 55557-53030 |
ZRE15# |
2 | ||
| 55557-53030 |
ZRE15#..GL,GLI,GLX,GLXI |
2 | ||
| 55557-53030 |
ZRE152..GLS,GLXS |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 55557-53030 |
ZRE15# |
2 | ||
| 55557-53030 |
ZRE15#..GL,GLI,GLX,GLXI |
2 | ||
| 55557-53030 |
ZRE152..GLS,GLXS |
2 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060E0 |
ZRE15#..GL,GLI,GLS,GLXI,GLXS GREGE,TRIM4# |
1 | ||
| 55539-0R020B0 |
ZRE151,152..GL,GLI DK.GRAY,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-02360 |
ZRE151,152..GL,GLI,GLXI |
1 | ||
| 55548-02090 |
ZRE15# |
1 | ||
| 55548-02360 |
ZRE152..GLS,GLXS |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02231B0 |
ZRE152,153..GLS,GLX,GLXS DK.GRAY,TRIM1# |
1 | ||
| 55550-02231E0 |
ZRE15#..GL,GLI,GLXI,PREM GREGE,TRIM4# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02101 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55606-02101 |
ZRE152..GLS,GLXS |
1 | ||
| 55606-02101 |
ZRE15# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02121 |
ZRE152..GLS,GLXS |
1 | ||
| 55607-02121 |
ZRE15# |
1 | ||
| 55607-02121 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02120E0 |
ZRE15# GREGE,TRIM4# |
1 | ||
| 55650-02122B0 |
ZRE151,152..GL,GLI DK.GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02070E0 |
ZRE15# GREGE,TRIM4# |
1 | ||
| 55660-02072B0 |
ZRE151,152..GL,GLI DK.GRAY,TRIM1# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02160 |
ZRE15# |
1 | ||
| 55670-02163 |
ZRE152..GLS,GLXS |
1 | ||
| 55670-02163 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 55670-02162 |
ZRE15# |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-02080E0 |
ZRE15# GREGE,TRIM4# |
1 | ||
| 58816-02080B0 |
ZRE152,153..GLS,GLX,GLXS DK.GRAY,TRIM1# |
1 | ||
| 58817B - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02080E0 |
ZRE15# GREGE,TRIM4# |
1 | ||
| 58817-02080B0 |
ZRE152,153..GLS,GLX,GLXS DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 58959-60060 | ||||
| 74124-20130 | ||||
| 74133-02040 | ||||
| 90159-C0006 | ||||
| 90167-30006 | ||||
| 90167-C0004 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-C0031 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8401 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
