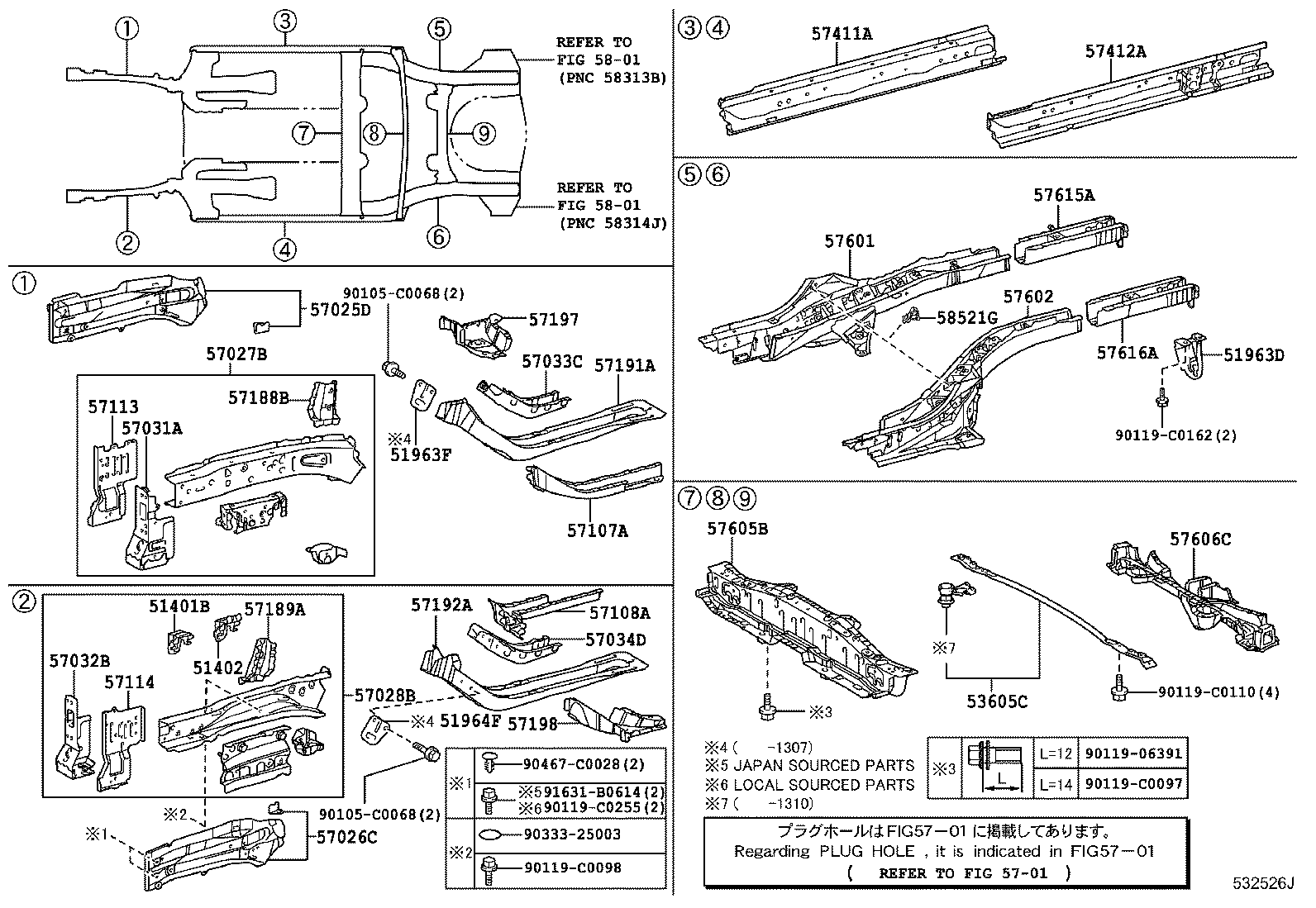

Toyota Corolla (china) ZRE152 FLOOR SIDE MEMBER

Part #	Description	Period	Qty
51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING
51401-02030	ZRE15#	05/2007 - 09/2010	1
51401-02030	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
51401-02030	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-02030	ZRE15#	05/2007 - 09/2010	1
51402-02030	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
51402-02030	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
51963D - HOOK, TRANSPORT, REAR LH
51968-02090	ZRE15#	05/2007 - 09/2010	1
51968-02090	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
51968-02090	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
51963F - HOOK, TRANSPORT
51963-02110	ZRE15#	05/2007 - 09/2010	1
51963-02110	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
51964F - HOOK, TRANSPORT, LH
51964-02040	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
51964-02040	ZRE15#	05/2007 - 09/2010	1
53605C - BRACE SUB-ASSY, REAR FLOOR SIDE MEMBER
53605-02020	ZRE15#	05/2007 - 09/2010	1
53605-02020	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57025-02040	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57025-02040	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57025-02040	ZRE15#	05/2007 - 09/2010	1
57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57026-02040	ZRE15#	05/2007 - 09/2010	1
57026-02040	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57026-02040	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH
57027-02050	ZRE15#	05/2007 - 09/2010	1
57027-02050	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57027-02050	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH
57028-02040	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57028-02040	ZRE15#	05/2007 - 09/2010	1
57028-02040	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57031-02030	ZRE15#	05/2007 - 09/2010	1
57031-02030	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57031-02030	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57032-02030	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57032-02030	ZRE15#	05/2007 - 09/2010	1
57032-02030	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH
57033-02060	ZRE15#	05/2007 - 09/2010	1
57033-02060	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57033-02060	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH
57034-02060	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57034-02060	ZRE15#	05/2007 - 09/2010	1
57034-02060	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57107-02060	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57107-02060	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57107-02060	ZRE15#	05/2007 - 09/2010	1
57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57108-02060	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57108-02060	ZRE15#	05/2007 - 09/2010	1
57108-02060	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-02090	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57113-02090	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57113-02090	ZRE15#	05/2007 - 09/2010	1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-02090	ZRE15#	05/2007 - 09/2010	1
57114-02090	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57114-02090	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH
57188-02030	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57188-02030	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57188-02030	ZRE15#	05/2007 - 09/2010	1
57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH
57189-02030	ZRE15#	05/2007 - 09/2010	1
57189-02030	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57189-02030	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57191A - MEMBER, FRONT SIDE, INNER REAR RH
57191-02120	ZRE15#	05/2007 - 09/2010	1
57191-02120	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57191-02120	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57192A - MEMBER, FRONT SIDE, INNER REAR LH
57192-02120	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57192-02120	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57192-02120	ZRE15#	05/2007 - 09/2010	1
57197 - BOX, TORQUE, FRONT RH
57197-02060	ZRE15#	05/2007 - 09/2010	1
57197-02060	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57197-02060	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57198 - BOX, TORQUE, FRONT LH
57198-02060	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57198-02060	ZRE15#	05/2007 - 09/2010	1
57198-02060	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-02150	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57401-02150	ZRE15#	05/2007 - 09/2010	1
57401-02150	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-02150	ZRE15#	05/2007 - 09/2010	1
57402-02150	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57402-02150	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-02200	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57601-02200	ZRE15#	05/2007 - 09/2010	1
57601-02200	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-02200	ZRE15#	05/2007 - 09/2010	1
57602-02200	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57602-02200	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-02110	ZRE15#	05/2007 - 09/2010	1
57605-02110	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57605-02110	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-02110	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57606-02110	ZRE15#	05/2007 - 09/2010	1
57606-02110	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57603-02090	ZRE15#	05/2007 - 09/2010	1
57603-02090	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
57603-02090	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57604-02060	ZRE152..GLS,GLXS	09/2010 - 03/2012	1
57604-02060	ZRE15#	05/2007 - 09/2010	1
57604-02060	ZRE151,152..GL,GLI,GLXI	09/2010 - 12/2999	1
58521G - HOOK, FLOOR CARPET
58521-02070	ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	2
58521-02070	ZRE152..GLS,GLXS	09/2010 - 03/2012	2
58521-02070	ZRE15#	05/2007 - 09/2010	2
Common parts
90105-C0068
90119-06391
90119-C0097
90119-C0098
90119-C0110
90119-C0162
90119-C0255
90333-25003
90467-C0028
91631-B0614
Linked diagrams
5701
5801

ZRE152L-GEFVKC (2010)

(0705- )
