ZRE152L-GEFVKC (2010)
Toyota Corolla (China)
Production
Sep 2010
-
Mar 2012
Engine
2ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )

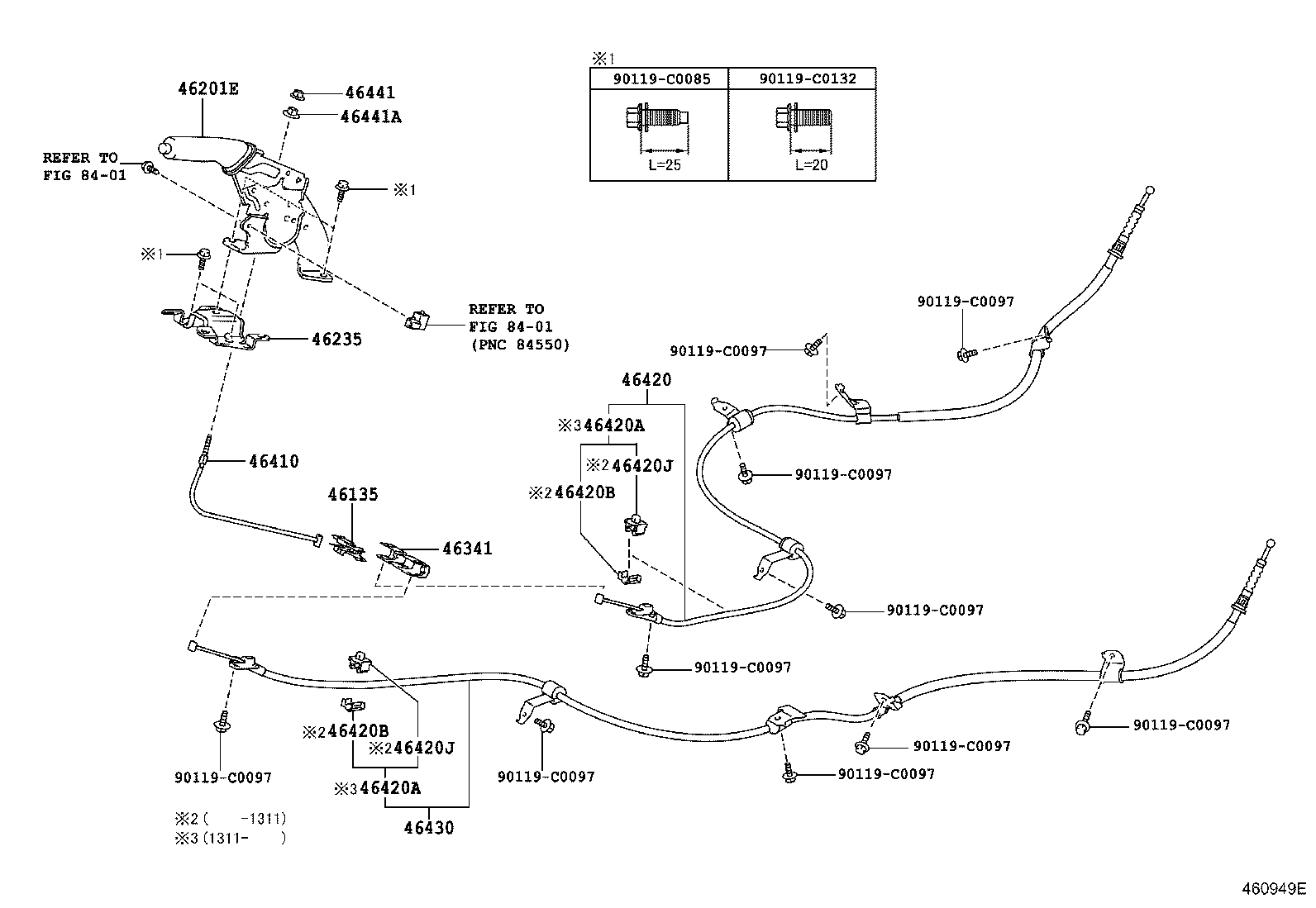

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46135 - STOPPER, PARKING BRAKE CABLE END | ||||
| 46135-12010 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 46135-12010 |
ZRE15# |
1 | ||
| 46135-12010 |
ZRE152..GLS,GLXS |
1 | ||
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-02270E0 |
ZRE15# ASH BROWN,TRIM4# |
1 | ||
| 46201-02270B0 |
ZRE152..GLS,GLXS DK.GRAY,TRIM1# |
1 | ||
| 46235 - BRACKET, PARKING BRAKE LEVER SUPPORT | ||||
| 46235-02010 |
ZRE152..GLS,GLXS |
1 | ||
| 46235-02010 |
ZRE15# |
1 | ||
| 46235-02010 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-02060 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 46341-02060 |
ZRE152..GLS,GLXS |
1 | ||
| 46341-02060 |
ZRE15# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-02080 |
ZRE152..GLS,GLXS |
1 | ||
| 46410-02080 |
ZRE15# |
1 | ||
| 46410-02080 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-02140 |
ZRE15# |
1 | ||
| 46420-02140 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 46420-02140 |
ZRE152..GLS,GLXS |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46411-12040 |
ZRE15# |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46411-12040 |
ZRE15# |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46411-12030 |
ZRE15# |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46411-12030 |
ZRE15# |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-02140 |
ZRE15# |
1 | ||
| 46430-02140 |
ZRE152..GLS,GLXS |
1 | ||
| 46430-02140 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 90179-06299 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 90179-06299 |
ZRE152..GLS,GLXS |
1 | ||
| 90179-06299 |
ZRE15# |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 46441-12010 |
ZRE152..GLS,GLXS |
1 | ||
| 46441-12010 |
ZRE15#..GL,GLI,GLX,GLXI |
1 | ||
| 46441-12010 |
ZRE15# |
1 | ||
| Common parts | ||||
| 90119-C0085 | ||||
| 90119-C0097 | ||||
| 90119-C0132 | ||||
| Linked diagrams | ||||
| 8401 | ||||
