ZRE152L-GEFVKC (2010)

Toyota Corolla (China)

Production Sep 2010 - Mar 2012
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-1301)

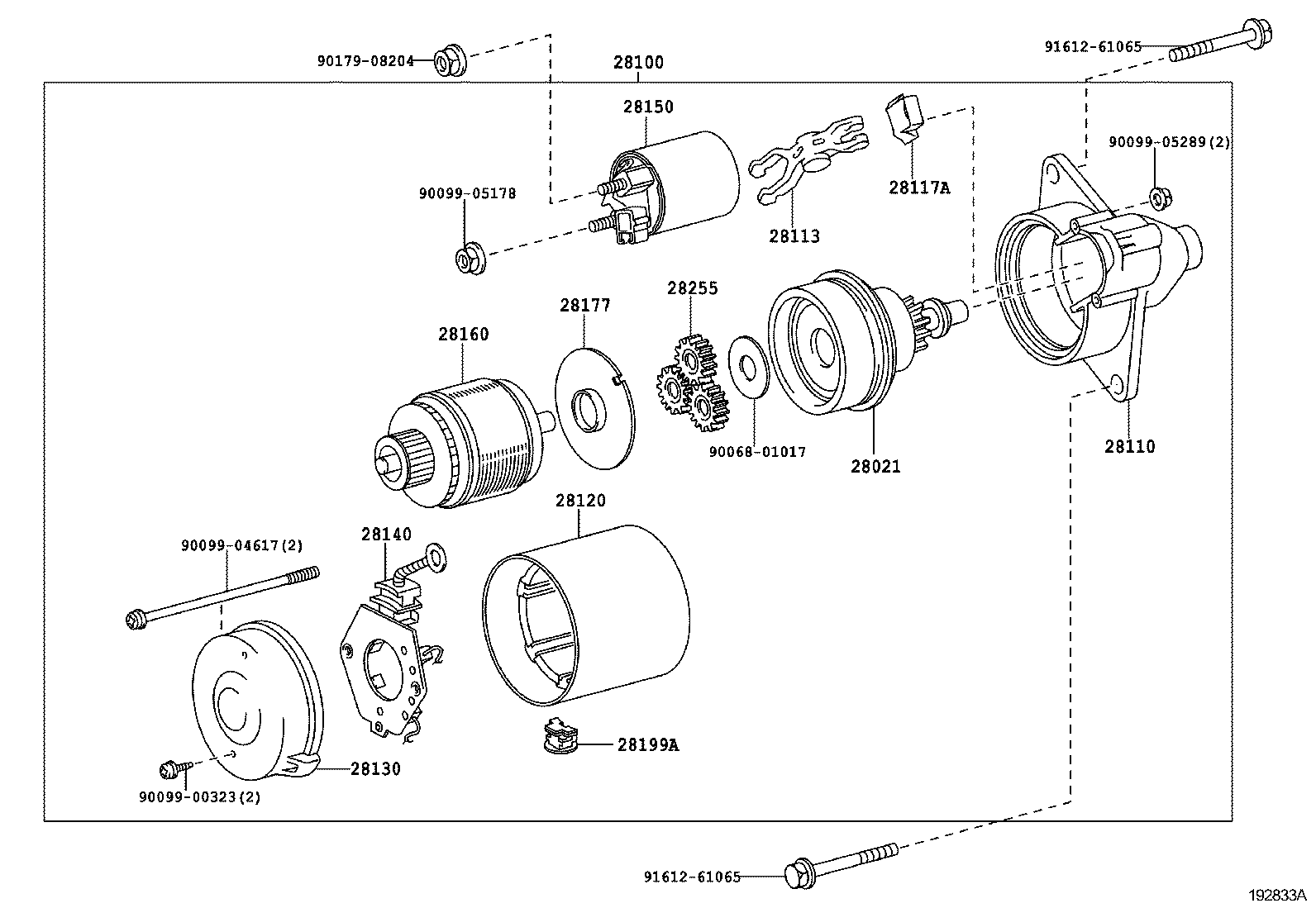

Click highlighted areas on diagram

12V 1.6KW

diagram 28021 28100 28110 28113 28117A 28120 28130 28140 28150 28160 28177 28199A 28255 9006801017 9009900323 9009904617 9009905178 9009905289 9017908204 9161261065 9161261065
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-37050

1ZRFE,2ZRFE..ZRE15#

 1
28021-37050

2ZRFE..ZRE152..GLS,GLXS

 1
28100 - STARTER ASSY
28100-0T020

1ZRFE,2ZRFE..ZRE15#

12V 1.6KW

 1
28100-0T020

2ZRFE..ZRE152..GLS,GLXS

12V 1.6KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0T020

1ZRFE,2ZRFE..ZRE15#

 1
28110-0T020

1ZRFE,2ZRFE,3ZRFE..ZRE15#

 1
28113 - LEVER, STARTER PINION DRIVE
28113-0T020

1ZRFE,2ZRFE..ZRE15#

 1
28113-0T020

1ZRFE,2ZRFE,3ZRFE..ZRE15#

 1
28117A - SEAL, RUBBER
28117-0T020

1ZRFE,2ZRFE..ZRE15#

 1
28117-0T020

1ZRFE,2ZRFE,3ZRFE..ZRE15#

 1
28120 - YOKE ASSY, STARTER
28120-37050

2ZRFE..ZRE152..GLS,GLXS

 1
28120-37050

1ZRFE,2ZRFE..ZRE15#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0T020

1ZRFE,2ZRFE..ZRE15#

 1
28130-0T020

1ZRFE,2ZRFE,3ZRFE..ZRE15#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-37050

1ZRFE,2ZRFE..ZRE15#

 1
28140-0T020

2ZRFE..ZRE152..GLS,GLXS

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-0T020

2ZRFE..ZRE152..GLS,GLXS

 1
28150-0T020

1ZRFE,2ZRFE..ZRE15#

 1
28160 - ARMATURE ASSY, STARTER
28160-0T020

2ZRFE..ZRE152..GLS,GLXS

 1
28160-37050

1ZRFE,2ZRFE..ZRE15#

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-0T020

1ZRFE,2ZRFE,3ZRFE..ZRE15#

 1
28177-0T020

1ZRFE,2ZRFE..ZRE15#

 1
28199A - PROTECTOR, DUST STARTER
28199-37050

1ZRFE,2ZRFE,3ZRFE..ZRE15#

 1
28199-37050

1ZRFE,2ZRFE..ZRE15#

 1
28255 - GEAR, PLANET
28255-37050

1ZRFE,2ZRFE,3ZRFE..ZRE15#

 3
28255-37050

1ZRFE,2ZRFE..ZRE15#

 3
Common parts
90068-01017
90099-00323
90099-04617
90099-05178
90099-05289
90179-08204
91612-61065
