ZRE152L-GEFVKC (2010)

Toyota Corolla (China)

Production Sep 2010 - Mar 2012
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1009- )2ZRFE,3ZRFE

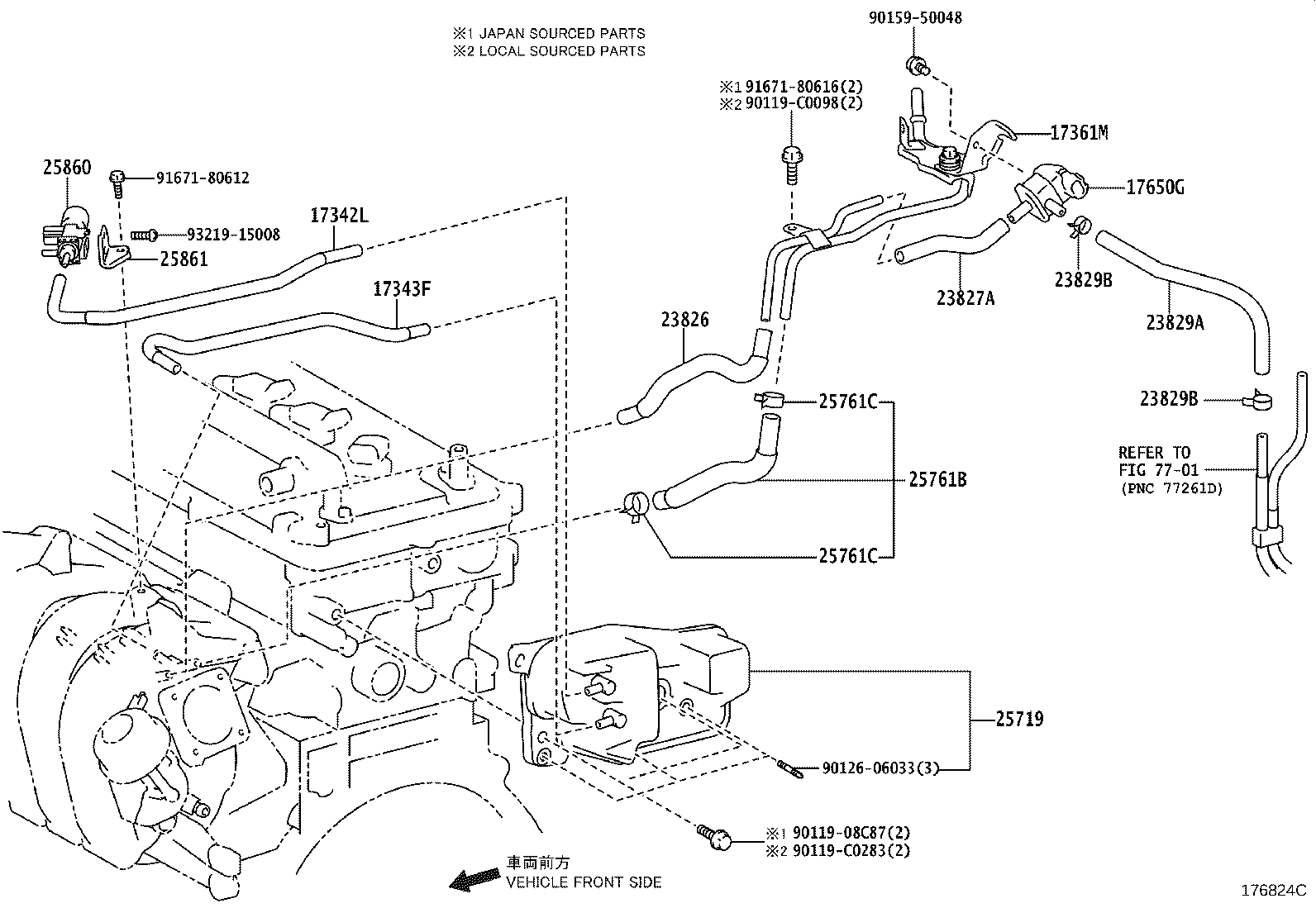

Click highlighted areas on diagram

diagram 17342L 17343F 17361M 17650G 23826 23827A 23829A 23829B 23829B 25719 25761B 25761C 25761C 25860 25861 7701 9011908C87 90119C0098 90119C0283 9012606033 9015950048 9167180612 9167180616 9321915008
Part # Description Qty Price
17342L - HOSE, AIR, NO.2
17342-37060

2ZRFE..ZRE152..GLS,GLXS

 1
17342-37060

2ZRFE,3ZRFE..ZRE152,153..GLI,GLX,GLXI

 1
17343F - HOSE, AIR, NO.3
17343-37040

2ZRFE..ZRE152..GLS,GLXS

 1
17343-37040

2ZRFE,3ZRFE..ZRE152,153..GLI,GLX,GLXI

 1
17361M - TUBE, AIR
17361-37010

1ZRFE,2ZRFE..ZRE15#

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12276

1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI

 1
90910-12276

2ZRFE..ZRE152..GLS,GLXS

 1
90910-12276

1ZRFE,2ZRFE..ZRE15#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0T110

2ZRFE..ZRE152..GLS,GLXS

(L)

 1
23826-37190

2ZRFE..ZRE152..GLS,GLXS

(J)

 1
23826-37020

1ZRFE,2ZRFE..ZRE15#

(J)

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-37060

2ZRFE,3ZRFE..ZRE152,153..GLI,GLX,GLXI

 1
23827-37020

1ZRFE,2ZRFE..ZRE15#

 1
23827-37060

2ZRFE..ZRE152..GLS,GLXS

 1
23829A - HOSE, FUEL VAPOR FEED
23826-0T010

1ZRFE,2ZRFE..ZRE15#

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

1ZRFE,2ZRFE..ZRE15#

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

1ZRFE,2ZRFE..ZRE15#

 2
25719 - TANK, VACUUM SURGE
25719-37010

2ZRFE..ZRE152..GLS,GLXS

 1
25761B - HOSE, VACCUM TRANSMITTING, NO.1
25761-37080

2ZRFE..ZRE152..GLS,GLXS

 1
25761-37010

1ZRFE,2ZRFE..ZRE15#

 1
25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1)
96133-41500

2ZRFE..ZRE152..GLS,GLXS

 2
96136-41801

1ZRFE,2ZRFE..ZRE15#

 2
96133-41500

1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI

 2
25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1)
96133-41500

2ZRFE..ZRE152..GLS,GLXS

 2
96136-41801

1ZRFE,2ZRFE..ZRE15#

 2
96133-41500

1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI

 2
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
90910-12281

2ZRFE..ZRE152..GLS,GLXS

 1
90910-12281

2ZRFE,3ZRFE..ZRE152,153..GLI,GLX,GLXI

 1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-37010

2ZRFE,3ZRFE..ZRE152,153..GLI,GLX,GLXI

 1
25861-37010

2ZRFE..ZRE152..GLS,GLXS

 1
Common parts
90119-08C87
90119-C0098
90119-C0283
90126-06033
90159-50048
91671-80612
91671-80616
93219-15008
Linked diagrams
7701
