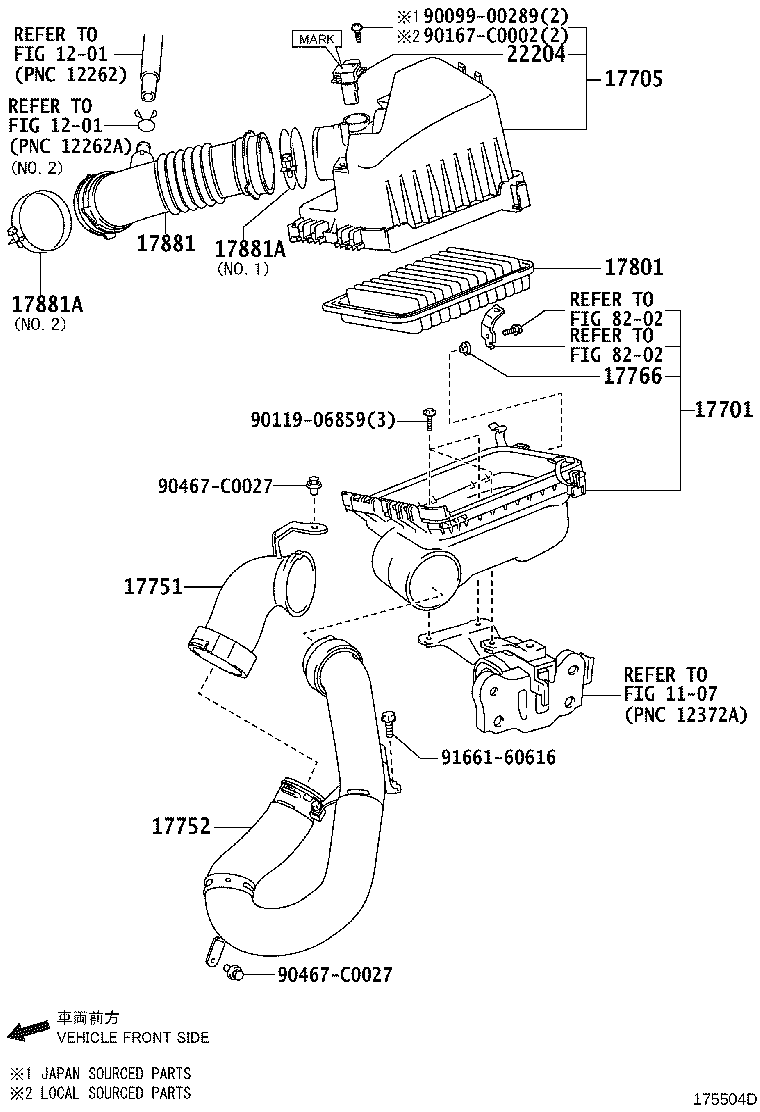

Toyota Corolla (china) ZRE152 AIR CLEANER

Part #	Description	Period	Qty
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0T100	2ZRFE..ZRE152..GLS,GLXS	09/2010 - 03/2012	1
17701-0T100	1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
17701-0T010	1ZRFE,2ZRFE..ZRE15#	05/2007 - 09/2010	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0T010	1ZRFE,2ZRFE..ZRE15#	05/2007 - 09/2010	1
17705-0T131	2ZRFE..ZRE152..GLS,GLXS	03/2011 - 03/2012	1
17705-0T131	1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI	03/2011 - 12/2999	1
17705-0T130	1ZRFE,2ZRFE,3ZRFE..ZRE15#	09/2010 - 02/2011	1
17751 - INLET, AIR CLEANER, NO.1
17751-0T010	1ZRFE,2ZRFE..ZRE15#	05/2007 - 09/2010	1
17751-0T010	1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
17751-0T010	2ZRFE..ZRE152..GLS,GLXS	09/2010 - 03/2012	1
17752 - INLET, AIR CLEANER, NO.2
17752-0T010	2ZRFE..ZRE152..GLS,GLXS	09/2010 - 03/2012	1
17752-0T010	1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
17752-0T010	1ZRFE,2ZRFE..ZRE15#	05/2007 - 09/2010	1
17766 - STAY, AIR CLEANER, NO.2
17706-22010	1ZRFE,2ZRFE..ZRE15#	05/2007 - 02/2010	1
17706-0T010	1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
17706-0T010	2ZRFE..ZRE152..GLS,GLXS	09/2010 - 03/2012	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0T020	1ZRFE,2ZRFE..ZRE15#	05/2007 - 09/2010	1
17801-0T020	2ZRFE..ZRE152..GLS,GLXS	09/2010 - 03/2012	1
17801-0T020	1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI	09/2010 - 12/2999	1
17881 - HOSE, AIR CLEANER, NO.1
17880-0T130	2ZRFE..ZRE152..GLS,GLXS	09/2010 - 03/2012	1
17880-0T130	2ZRFE,3ZRFE..ZRE152,153..GLI,GLX,GLXI	09/2010 - 12/2999	1
17880-0T010	1ZRFE,2ZRFE..ZRE15#	05/2007 - 09/2010	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830	1ZRFE,2ZRFE..ZRE15# NO.1	05/2007 - 09/2010	1
96111-10780	1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI NO.2	09/2010 - 12/2999	1
96111-10780	1ZRFE,2ZRFE..ZRE15# NO.2	05/2007 - 09/2010	1
96111-10750	1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI NO.1	09/2010 - 12/2999	1
96111-10780	2ZRFE..ZRE152..GLS,GLXS NO.2	09/2010 - 03/2012	1
96111-10750	2ZRFE..ZRE152..GLS,GLXS NO.1	09/2010 - 03/2012	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830	1ZRFE,2ZRFE..ZRE15# NO.1	05/2007 - 09/2010	1
96111-10780	1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI NO.2	09/2010 - 12/2999	1
96111-10780	1ZRFE,2ZRFE..ZRE15# NO.2	05/2007 - 09/2010	1
96111-10750	1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI NO.1	09/2010 - 12/2999	1
96111-10780	2ZRFE..ZRE152..GLS,GLXS NO.2	09/2010 - 03/2012	1
96111-10750	2ZRFE..ZRE152..GLS,GLXS NO.1	09/2010 - 03/2012	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-28010	1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI MARK 22204-28010	03/2011 - 12/2999	1
22204-0T040	1ZRFE,2ZRFE,3ZRFE..ZRE15#	09/2010 - 03/2011	1
22204-28010	2ZRFE..ZRE152..GLS,GLXS MARK 22204-28010	03/2011 - 03/2012	1
22204-0T010	1ZRFE,2ZRFE..ZRE15#	05/2007 - 09/2010	1
Common parts
90099-00289
90119-06859
90167-C0002
90467-C0027
91661-60616
Linked diagrams
1107
1201
8202

ZRE152L-GEFVKC (2010)

(0705- )
