ZRE152L-GEFVKC (2010)

Toyota Corolla (China)

Production Sep 2010 - Mar 2012
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1009- )2ZRFE

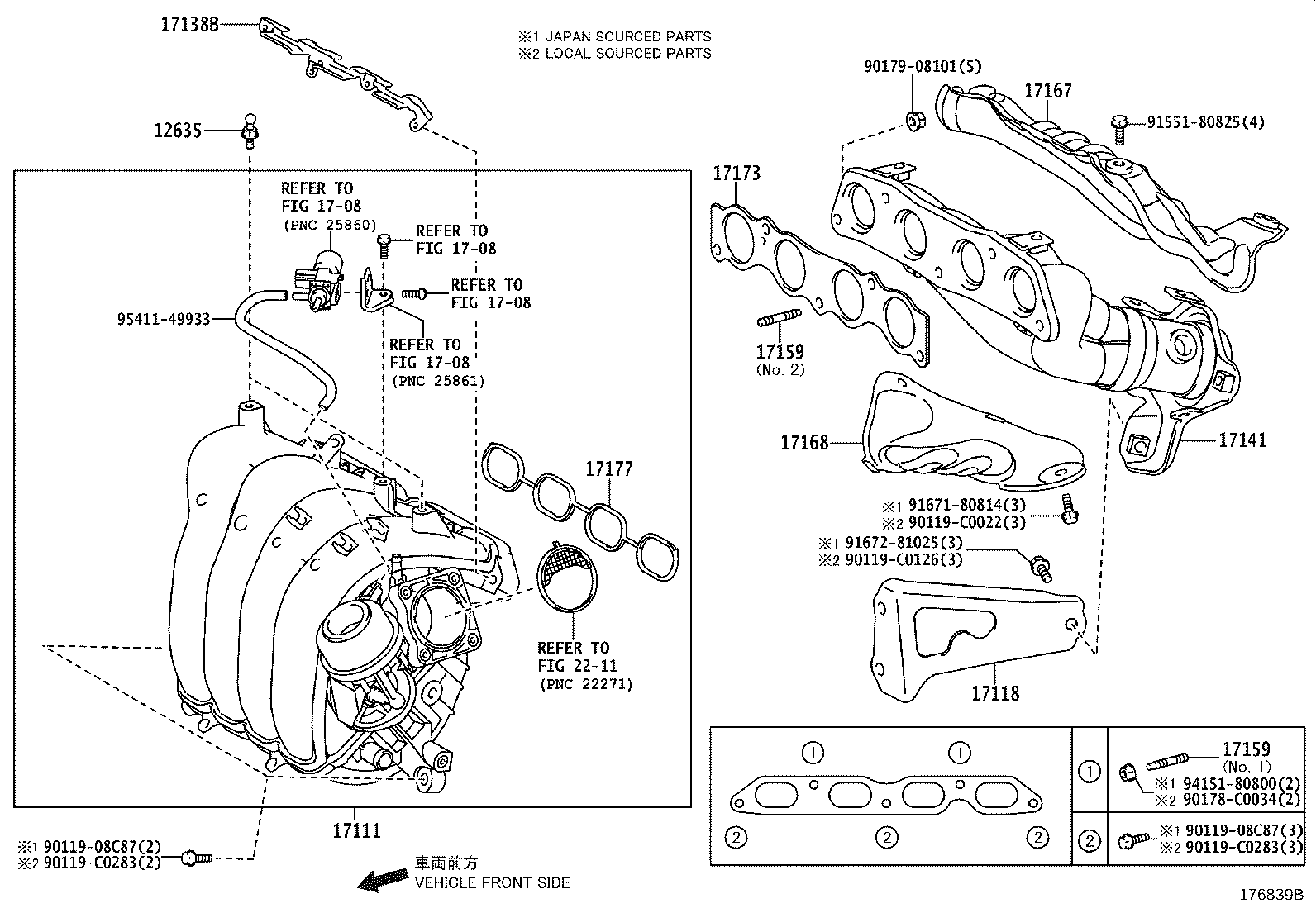

Click highlighted areas on diagram

diagram 12635 1708 1708 1708 1708 17111 17118 17138B 17141 17159 17159 17167 17168 17173 17177 2211 9011908C87 9011908C87 90119C0022 90119C0126 90119C0283 90119C0283 90178C0034 9017908101 9155180825 9167180814 9167281025 9415180800 9541149933
Part # Description Qty Price
12635 - JOINT, ENGINE COVER
90109-06385

2ZRFE..ZRE152..GLS,GLXS

 2
90109-06385

1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI

 2
90109-06385

1ZRFE,2ZRFE..ZRE15#

 2
17111 - MANIFOLD, INTAKE
17120-37020

1ZRFE,2ZRFE..ZRE15#

(J)

 1
17120-0T070

2ZRFE..ZRE152..GLS,GLXS

(L)

 1
17120-37070

2ZRFE..ZRE152..GLS,GLXS

(J)

 1
17120-0T020

1ZRFE,2ZRFE..ZRE15#

(L)

 1
17118 - STAY, MANIFOLD
17118-37010

1ZRFE,2ZRFE..ZRE15#

(J)

 1
17118-0T010

2ZRFE..ZRE152..GLS,GLXS

(L)

 1
17118-0T010

1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI

(L)

 1
17118-37010

2ZRFE..ZRE152..GLS,GLXS

(J)

 1
17118-37010

1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI

(J)

 1
17138B - STAY, INTAKE MANIFOLD
17138-37010

1ZRFE,2ZRFE..ZRE15#

 1
17138-37010

2ZRFE..ZRE152..GLS,GLXS

 1
17141 - MANIFOLD, EXHAUST
17141-0T070

1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI

 1
17141-37051

1ZRFE,2ZRFE..ZRE15#

(J)

 1
17141-0T070

2ZRFE..ZRE152..GLS,GLXS

 1
17141-0T020

1ZRFE,2ZRFE..ZRE15#

(L)

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

1ZRFE,2ZRFE..ZRE15#

NO.1

 2
90126-08026

2ZRFE..ZRE152..GLS,GLXS

NO.1

 2
90126-08052

1ZRFE,2ZRFE..ZRE15#

NO.2

 5
90126-08052

2ZRFE..ZRE152..GLS,GLXS

NO.2

 5
90126-08026

1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI

NO.1

 2
90126-08052

1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI

NO.2

 5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

1ZRFE,2ZRFE..ZRE15#

NO.1

 2
90126-08026

2ZRFE..ZRE152..GLS,GLXS

NO.1

 2
90126-08052

1ZRFE,2ZRFE..ZRE15#

NO.2

 5
90126-08052

2ZRFE..ZRE152..GLS,GLXS

NO.2

 5
90126-08026

1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI

NO.1

 2
90126-08052

1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI

NO.2

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37011

1ZRFE,2ZRFE..ZRE15#

(J)

 1
17167-0T070

1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI

(L)

 1
17167-0T070

2ZRFE..ZRE152..GLS,GLXS

(L)

 1
17167-37110

2ZRFE..ZRE152..GLS,GLXS

(J)

 1
17167-0T010

1ZRFE,2ZRFE..ZRE15#

(L)

 1
17167-37110

1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI

(J)

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-0T060

1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI

 1
17168-0T010

2ZRFE..ZRE152

(L)

 1
17168-0T060

2ZRFE..ZRE152..GLS,GLXS

 1
17168-37030

2ZRFE..ZRE152

(J)

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010

1ZRFE,2ZRFE..ZRE15#

(J)

 1
17173-37010

1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI

(J)

 1
17173-0T010

2ZRFE..ZRE152..GLS,GLXS

(L)

 1
17173-37010

2ZRFE..ZRE152..GLS,GLXS

(J)

 1
17173-0T010

1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI

(L)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0T010

1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI

(L)

 1
17177-0T010

1ZRFE,2ZRFE..ZRE15#

(L)

 1
17177-0T010

2ZRFE..ZRE152..GLS,GLXS

(L)

 1
17177-37030

2ZRFE..ZRE152..GLS,GLXS

(J)

 2
17177-37030

1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI

(J)

 2
17177-37030

1ZRFE,2ZRFE..ZRE15#

(J)

 1
Common parts
90119-08C87
90119-C0022
90119-C0126
90119-C0283
90178-C0034
90179-08101
91551-80825
91671-80814
91672-81025
94151-80800
95411-49933
Linked diagrams
1708
2211
