ZRE152L-GEFVKC (2010)

Toyota Corolla (China)

Production Sep 2010 - Mar 2012
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

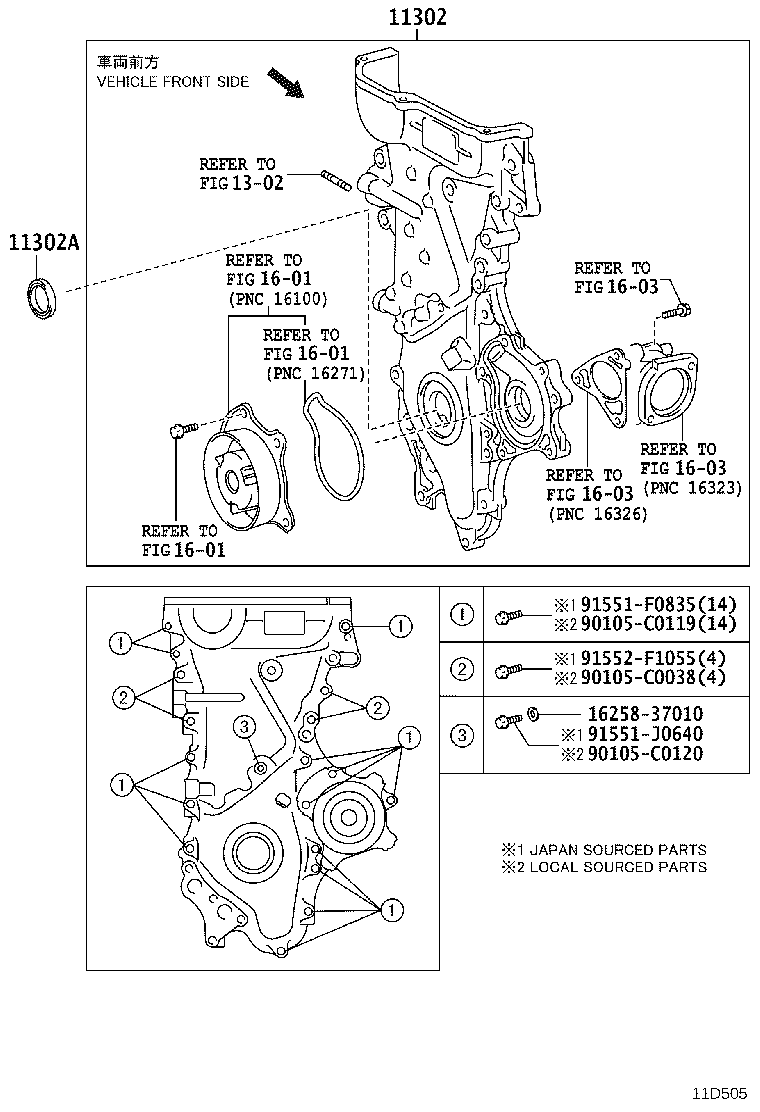

Click highlighted areas on diagram

diagram 11302 11302A 1302 1601 1601 1601 1603 1603 1603 1625837010 90105C0038 90105C0119 90105C0120 91551F0835 91551J0640 91552F1055
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-37010

1ZRFE,2ZRFE..ZRE15#

(J)

 1
11310-0T050

1ZRFE,2ZRFE..ZRE15#

(L)

 1
11310-0T051

2ZRFE..ZRE152..GLS,GLXS

(L)

 1
11310-37010

1ZRFE,2ZRFE..ZRE151,152

(J)

 1
11310-0T051

1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI

(L)

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-T0024

1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI

 1
90311-T0024

2ZRFE..ZRE152..GLS,GLXS

 1
90311-T0024

1ZRFE,2ZRFE..ZRE15#

 1
Common parts
16258-37010
90105-C0038
90105-C0119
90105-C0120
91551-F0835
91551-J0640
91552-F1055
Linked diagrams
1302
1601
1603
