ZRE152L-GEFEKC (2007)

Toyota Corolla (China)

Production May 2007 - Sep 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0705- )

Click highlighted areas on diagram

diagram 86120 86120A 86120A 86190C 861A0 86211 86212 90105C0194 90105C0194 90119C0098 90119C0098 90153C0001 90153C0001
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-02601

ZRE152..GLI,GLS

FUJITSU TEN,ID=12894,AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP

 1
86120-02601

ZRE15#..GL,GLI,GLS

FUJITSU TEN,ID=12894

 1
86120-02600

ZRE15#..GL,GLI,GLS

FUJITSU TEN,ID=12862

 1
86120-02600

ZRE152..GLI,GLS

FUJITSU TEN,ID=12862,AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP

 1
86120-02610

ZRE152..GLI

PIONEER,ID=P2835,AUDIO (OVERSEAS MARKET)-AM/FM 6CD-CHANGER MP3 6SPEAKER

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90011-23024

ZRE152..GLI

AUDIO (OVERSEAS MARKET)-AM/FM 6CD-CHANGER MP3 6SPEAKER

 2
90011-23024

ZRE152..GLI,GLS

AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP

 2
90011-23024

ZRE15#..GL,GLI,GLS

 2
90011-25160

ZRE15#..GL,GLI,GLS

 2
90011-25160

ZRE152..GLI,GLS

AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90011-23024

ZRE152..GLI

AUDIO (OVERSEAS MARKET)-AM/FM 6CD-CHANGER MP3 6SPEAKER

 2
90011-23024

ZRE152..GLI,GLS

AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP

 2
90011-23024

ZRE15#..GL,GLI,GLS

 2
90011-25160

ZRE15#..GL,GLI,GLS

 2
90011-25160

ZRE152..GLI,GLS

AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP

 2
86211 - BRACKET, RADIO, NO.1
86211-02180

ZRE15#

 1
86212 - BRACKET, RADIO, NO.2
86212-02170

ZRE15#

 1
Common parts
90105-C0194
90119-C0098
90153-C0001

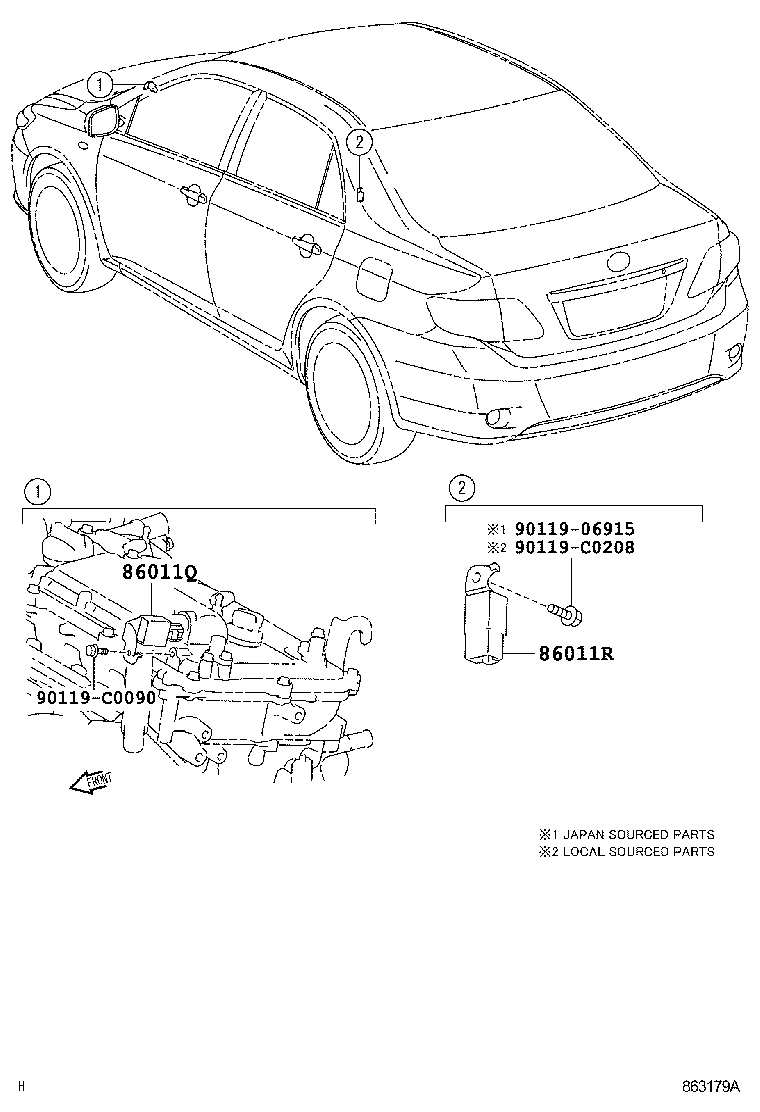

ILLUST NO. 2 OF 2(0705- )

Click highlighted areas on diagram

CONDENSER

diagram 86011Q 86011R 9011906915 90119C0090 90119C0208
Part # Description Qty Price
86011Q - CONDENSER, RADIO SETTING
90980-04194

ZRE15#

 1
86011R - CONDENSER, RADIO SETTING
90980-04179

ZRE15#

 1
Common parts
90119-06915
90119-C0090
90119-C0208
