ZRE152L-GEFEKC (2007)

Toyota Corolla (China)

Production May 2007 - Sep 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

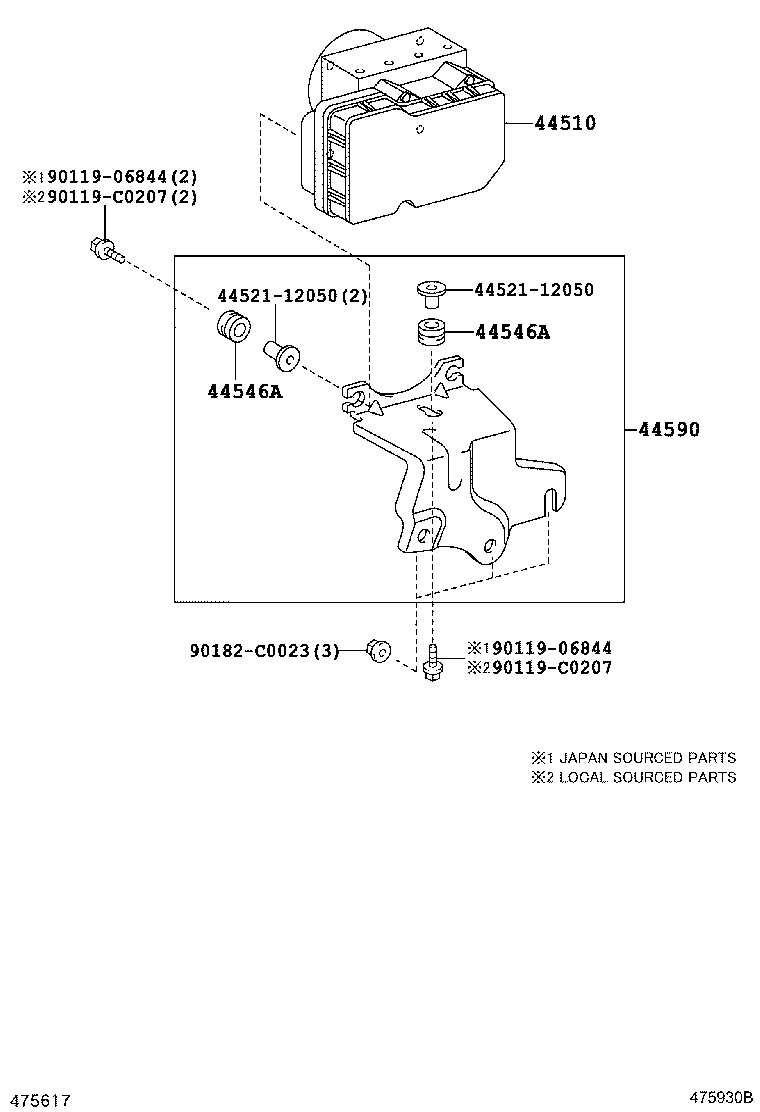

ILLUST NO. 2 OF 2(0705- )GL,GLI,GLS,GLX,GLXI,GLXS

Click highlighted areas on diagram

diagram 44510 4452112050 4452112050 44546A 44546A 44590 9011906844 9011906844 90119C0207 90119C0207 90182C0023
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-02230

ZRE15#..GL,GLI,GLS,GLXI,GLXS

 1
44050-02231

ZRE15#..GL,GLI,GLS,GLXI,GLXS

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02040

ZRE15#..GL,GLI,GLS,GLXI,GLXS

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02040

ZRE15#..GL,GLI,GLS,GLXI,GLXS

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-02180

ZRE15#..GL,GLI,GLS,GLXI,GLXS

 1
Common parts
44521-12050
90119-06844
90119-C0207
90182-C0023

ILLUST NO. 1 OF 2(0705- )

Click highlighted areas on diagram

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47316A 47316A 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47371A 47371F 47371G 47371H 47372 47372 47373B 7701 7701 7701 9011908415 9011908868 9011908868 90119C0097 90119C0104 90119C0104 90119C0158 90119C0158 90178C0011 9017906274 9046808040 9046808040 9046808040 9046808040 9046808040 9046808040 9046808040
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-02520

ZRE15#..GL,GLI,GLS,GLXI,GLXS

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

ZRE15#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-02400

ZRE15#..GL,GLI,GLS,GLXI,GLXS

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02470

ZRE15#..GL,GLI,GLS,GLXI,GLXS

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-C2008

ZRE15#

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-C0001

ZRE15#

 2
90401-10058

ZRE15#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-C0001

ZRE15#

 2
90401-10058

ZRE15#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-C2009

ZRE15#

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ZRE15#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ZRE15#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-02470

ZRE15#..GL,GLI,GLS,GLXI,GLXS

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-C2006

ZRE15#

LH

 1
90947-C2007

ZRE15#

RH

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-C2006

ZRE15#

LH

 1
90947-C2007

ZRE15#

RH

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-02390

ZRE15#..GL,GLI,GLS,GLXI,GLXS

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-02410

ZRE15#..GL,GLI,GLS,GLXI,GLXS

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ZRE15#

 2
90401-C0001

ZRE15#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ZRE15#

 2
90401-C0001

ZRE15#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ZRE15#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ZRE15#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-C2005

ZRE15#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-C2005

ZRE15#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-02220

ZRE15#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-02220

ZRE15#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-02100

ZRE15#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-02100

ZRE15#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

ZRE15#

 1
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01D17

ZRE15#

 4
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01D29

ZRE15#

 2
47371H - CLAMP, BRAKE TUBE, NO.12
90461-10837

ZRE15#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00900

ZRE15#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00900

ZRE15#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90461-10781

ZRE15#

 1
Common parts
90119-08415
90119-08868
90119-C0097
90119-C0104
90119-C0158
90178-C0011
90179-06274
90468-08040
