ZRE151L-GEPNKC (2007)
Toyota Corolla (China)
Production
May 2007
-
Sep 2010
Engine
1ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )1ZRFE,2ZRFE..4FC

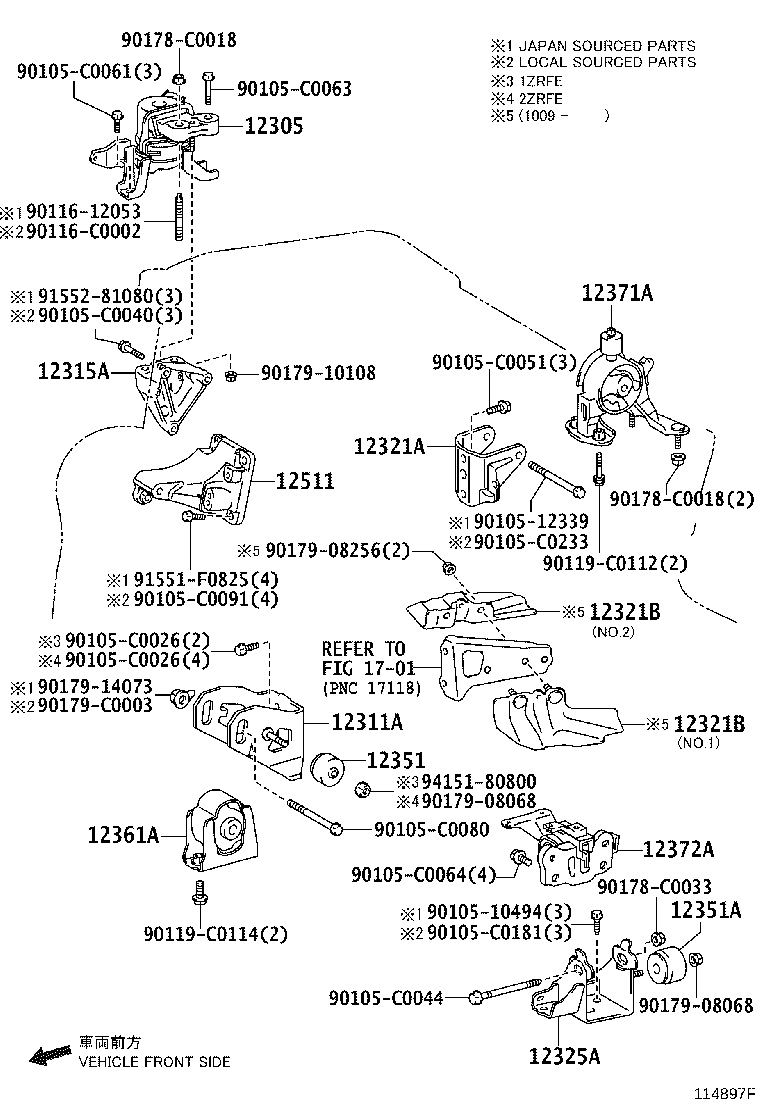

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0T010 |
1ZRFE,2ZRFE..ZRE15# |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-0T020 |
1ZRFE..ZRE151..4FC |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37030 |
1ZRFE,2ZRFE..ZRE15# (J) |
1 | ||
| 12315-0T010 |
1ZRFE,2ZRFE..ZRE15# (L) |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0T020 |
1ZRFE..ZRE151..4FC |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0T020 |
1ZRFE..ZRE151..4FC |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-0T030 |
1ZRFE..ZRE151..4FC (L) |
1 | ||
| 12351-28060 |
1ZRFE..ZRE151..4FC (J) |
1 | ||
| 12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR) | ||||
| 12351-0T020 |
1ZRFE,2ZRFE..ZRE15#..4FC |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0T020 |
1ZRFE,2ZRFE..ZRE15#..4FC |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0T020 |
1ZRFE,2ZRFE..ZRE15#..4FC |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0T020 |
1ZRFE,2ZRFE..ZRE15#..4FC |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-0T010 |
1ZRFE,2ZRFE..ZRE15# (L) |
1 | ||
| 12511-37010 |
1ZRFE,2ZRFE..ZRE15# (J) |
1 | ||
| Common parts | ||||
| 90105-10494 | ||||
| 90105-12339 | ||||
| 90105-C0026 | ||||
| 90105-C0040 | ||||
| 90105-C0044 | ||||
| 90105-C0051 | ||||
| 90105-C0061 | ||||
| 90105-C0063 | ||||
| 90105-C0064 | ||||
| 90105-C0080 | ||||
| 90105-C0091 | ||||
| 90105-C0181 | ||||
| 90105-C0233 | ||||
| 90116-12053 | ||||
| 90116-C0002 | ||||
| 90119-C0112 | ||||
| 90119-C0114 | ||||
| 90178-C0018 | ||||
| 90178-C0033 | ||||
| 90179-08068 | ||||
| 90179-08256 | ||||
| 90179-10108 | ||||
| 90179-14073 | ||||
| 90179-C0003 | ||||
| 91551-F0825 | ||||
| 91552-81080 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
