ZRE120L-GEMDKC (2007)

Toyota Corolla (China)

Production May 2007 - Feb 2017
Engine 1ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0402- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

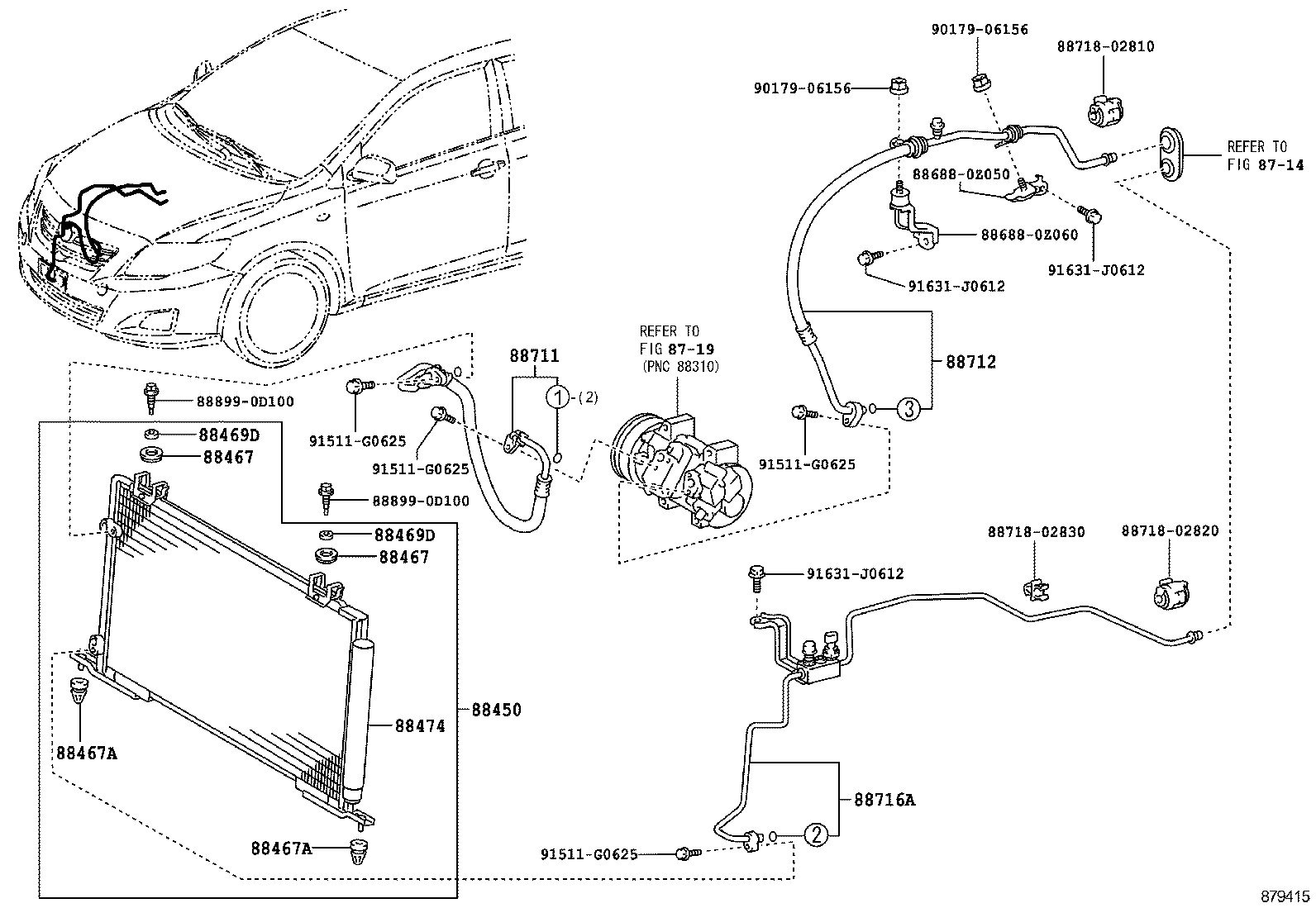

ILLUST NO. 1 OF 2(0705- )

Click highlighted areas on diagram

diagram 8714 8719 88450 88467 88467 88467A 88467A 88469D 88469D 88474 886880Z050 886880Z060 88711 88712 88716A 8871802810 8871802820 8871802830 888990D100 888990D100 9017906156 9017906156 91511G0625 91511G0625 91511G0625 91511G0625 91631J0612 91631J0612 91631J0612
Part # Description Qty Price
88450 - CONDENSER ASSY, W/RECEIVER
88450-02340

ZRE120

 1
88450-02340

ZRE120

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

ZRE120

 2
88467-12180

ZRE120

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

ZRE120

 2
88467-12180

ZRE120

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-05010

ZRE120

 2
88467-05010

ZRE120

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-05010

ZRE120

 2
88467-05010

ZRE120

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

ZRE120

 2
88469-52010

ZRE120

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

ZRE120

 2
88469-52010

ZRE120

 2
88474 - DRYER, COOLER
88474-17010

ZRE120

 1
88474-17010

ZRE120

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-02480

ZRE120

 1
88703-02480

ZRE120

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-02730

ZRE120

 1
88704-02730

ZRE120

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-0Z050

ZRE120

 1
88710-0Z050

ZRE120

 1
Common parts
88688-0Z050
88688-0Z060
88718-02810
88718-02820
88718-02830
88899-0D100
90179-06156
91511-G0625
91631-J0612
Linked diagrams
8714
8719
