Toyota Corolla (china) ZRE120 MIRROR

ZRE120L-GEMDKC (2007)

Toyota Corolla (China)

Production May 2007 - Feb 2017

Engine 1ZRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

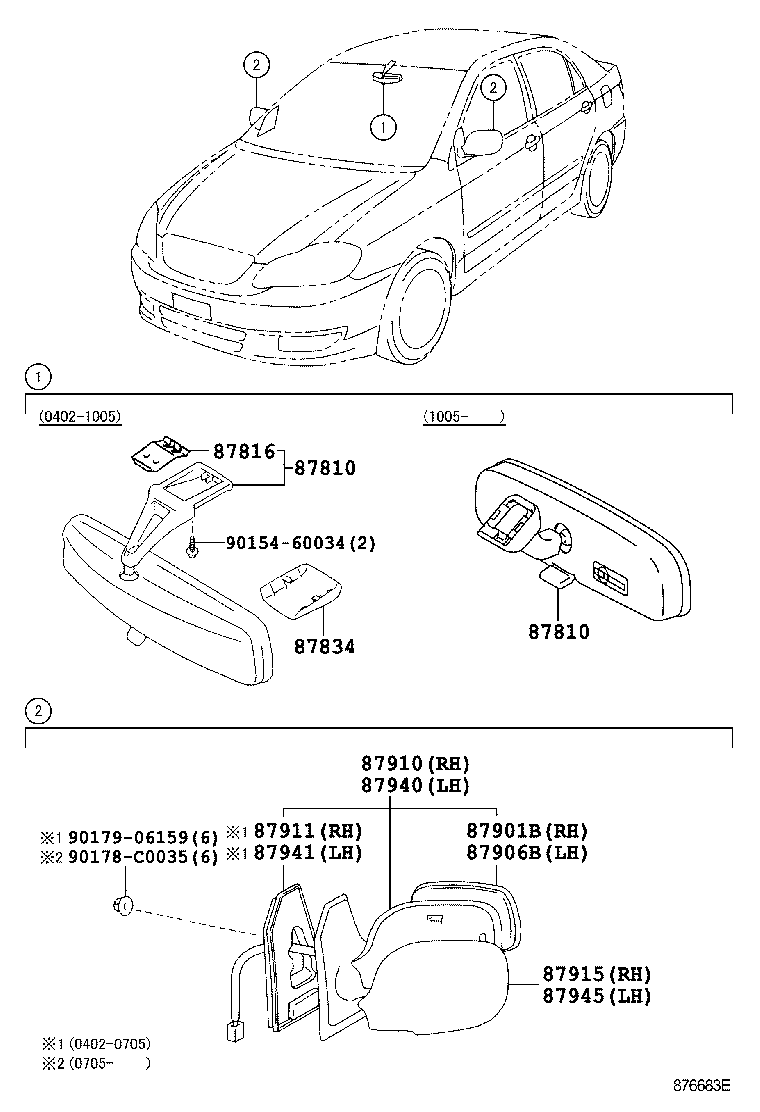

Click highlighted areas on diagram

Part #	Description	Period	Qty
87810 - MIRROR ASSY, INNER REAR VIEW
87810-YY010	ZRE120..5F	01/2009 - 05/2010	1
87810-12271A0	ZRE120 IVORY,TRIM0#	05/2007 - 05/2010	1
87810-0D030	ZRE120	05/2010 - 11/2011	1
87810-02190	ZRE120	11/2011 - 10/2012	1
87810-02190	ZRE120	10/2012 - 12/2999	1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-YY010	ZRE120..5F	01/2009 - 05/2010	1
87810-12271A0	ZRE120 IVORY,TRIM0#	05/2007 - 05/2010	1
87810-0D030	ZRE120	05/2010 - 11/2011	1
87810-02190	ZRE120	11/2011 - 10/2012	1
87810-02190	ZRE120	10/2012 - 12/2999	1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030	ZRE120	05/2007 - 05/2010	1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-12030A1	ZRE120 IVORY,TRIM0#	05/2007 - 05/2010	1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-02830	ZRE120	05/2007 - 10/2012	1
87931-02830	ZRE120	10/2012 - 02/2017	1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-02810	ZRE120	10/2012 - 02/2017	1
87961-02810	ZRE120	05/2007 - 10/2012	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-02880	ZRE120 NO PAINT REQ.	05/2007 - 10/2012	1
87910-YK010	ZRE120 NO PAINT REQ.	10/2012 - 02/2017	1
87915 - COVER, OUTER MIRROR, RH
87915-02923	ZRE120 PAINT REQ.	10/2012 - 02/2017	1
87915-02910	ZRE120 PAINT REQ.	05/2007 - 10/2012	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-02860	ZRE120 NO PAINT REQ.	05/2007 - 10/2012	1
87940-YK010	ZRE120 NO PAINT REQ.	10/2012 - 02/2017	1
87945 - COVER, OUTER MIRROR, LH
87945-02923	ZRE120 PAINT REQ.	10/2012 - 02/2017	1
87945-02910	ZRE120 PAINT REQ.	05/2007 - 10/2012	1
Common parts
90154-60034
90178-C0035
90179-06159

Click highlighted areas on diagram

Part #	Description	Period	Qty
87810 - MIRROR ASSY, INNER REAR VIEW
87810-YY010	ZRE120..5F	01/2009 - 05/2010	1
87810-12271A0	ZRE120 IVORY,TRIM0#	05/2007 - 05/2010	1
87810-0D030	ZRE120	05/2010 - 11/2011	1
87810-02190	ZRE120	11/2011 - 10/2012	1
87810-02190	ZRE120	10/2012 - 12/2999	1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-02830	ZRE120	05/2007 - 10/2012	1
87931-02830	ZRE120	10/2012 - 02/2017	1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-02810	ZRE120	10/2012 - 02/2017	1
87961-02810	ZRE120	05/2007 - 10/2012	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-02880	ZRE120 NO PAINT REQ.	05/2007 - 10/2012	1
87910-YK010	ZRE120 NO PAINT REQ.	10/2012 - 02/2017	1
87915 - COVER, OUTER MIRROR, RH
87915-02923	ZRE120 PAINT REQ.	10/2012 - 02/2017	1
87915-02910	ZRE120 PAINT REQ.	05/2007 - 10/2012	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-02860	ZRE120 NO PAINT REQ.	05/2007 - 10/2012	1
87940-YK010	ZRE120 NO PAINT REQ.	10/2012 - 02/2017	1
87945 - COVER, OUTER MIRROR, LH
87945-02923	ZRE120 PAINT REQ.	10/2012 - 02/2017	1
87945-02910	ZRE120 PAINT REQ.	05/2007 - 10/2012	1
Common parts
87917-12B90
90178-C0035
